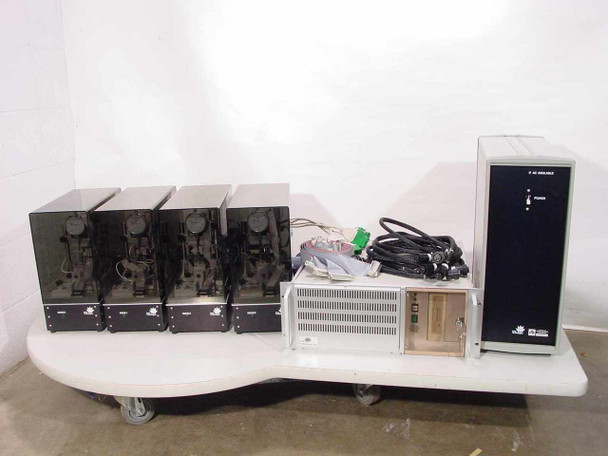

  • Lotus Technologies 7100 CSS Hard Drive Tester System – full system overview showing 4 tester modules, rack computer unit, and tower controller on table with cables

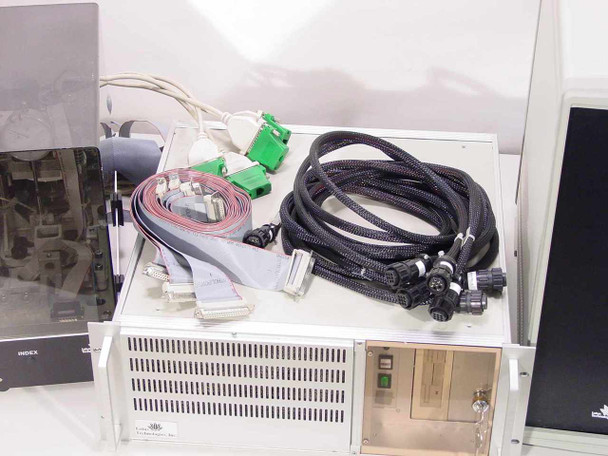

  • Lotus Technologies 7100 CSS tester system – close-up of rackmount computer unit with cable bundle including green DB connectors, ribbon cables, and braided power cables

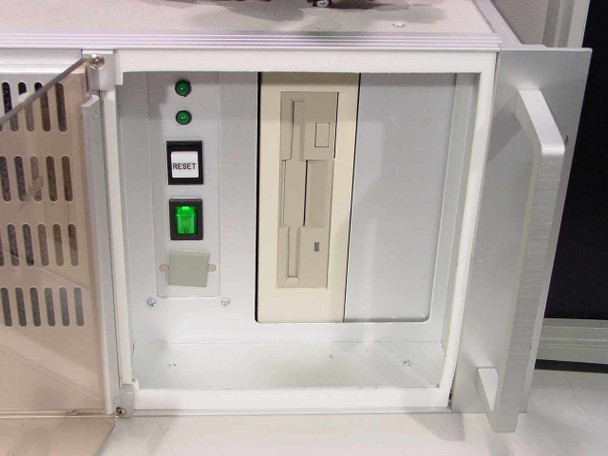

  • Lotus Technologies 7000 rack computer – front panel open showing floppy drive, Reset button, green power switch, and two green LED indicators

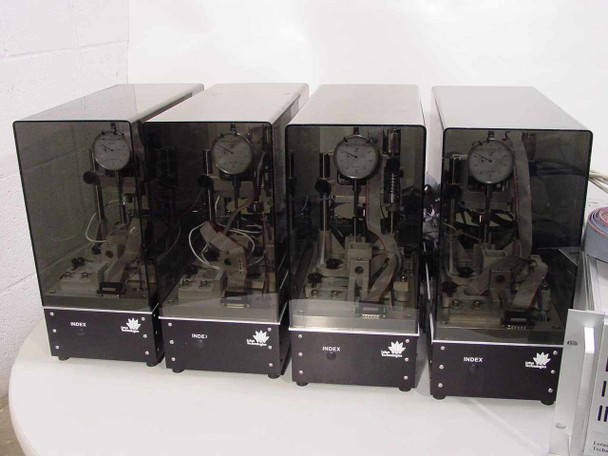

  • Lotus Technologies 7100 CSS tester modules – all four units side by side showing smoked acrylic enclosures with mechanical micro-gaging assemblies and dial indicators visible inside

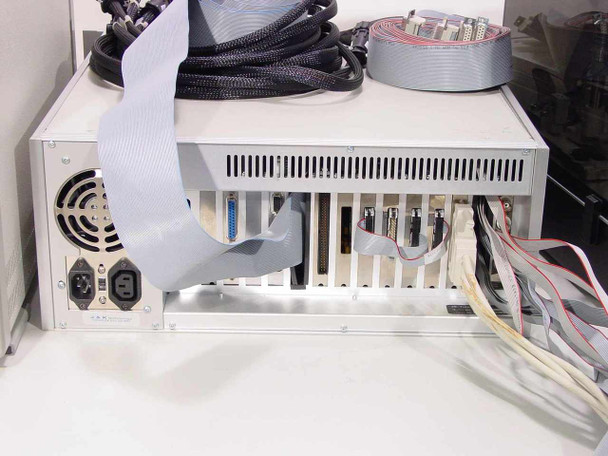

  • Lotus Technologies 7000 rackmount computer – rear view showing expansion card slots, ribbon cables, IEC power inlet, and cooling fan

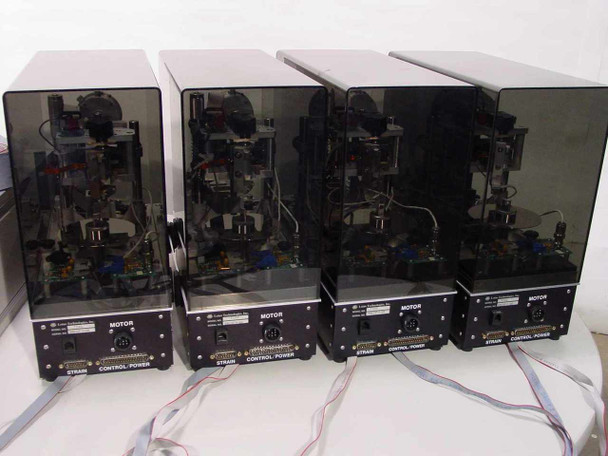

  • Lotus Technologies 7100 CSS modules – rear view of all four units showing STRAIN, CONTROL/POWER, and MOTOR connector ports on each module's lower panel

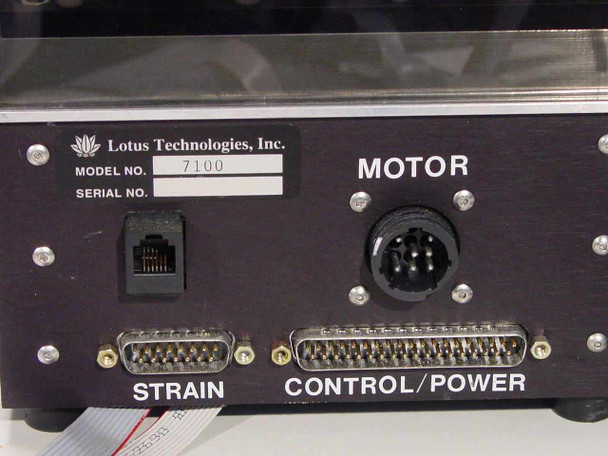

  • Lotus Technologies 7100 CSS module – close-up of rear panel label showing Model No. 7100, MOTOR circular connector, STRAIN DB25 port, and CONTROL/POWER DB50 port

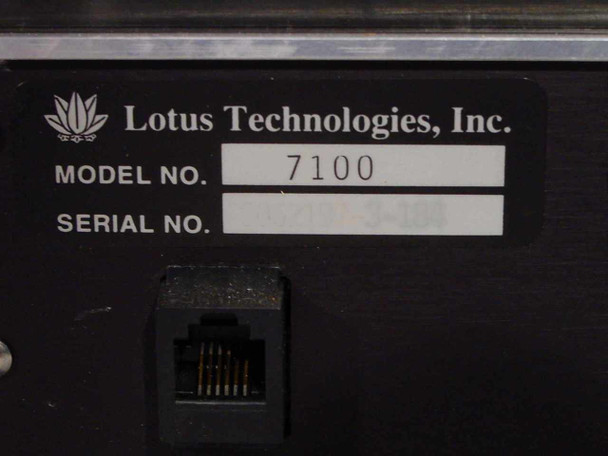

  • Lotus Technologies 7100 CSS module – close-up of Lotus Technologies Inc. label confirming Model No. 7100 with Serial No. field blank

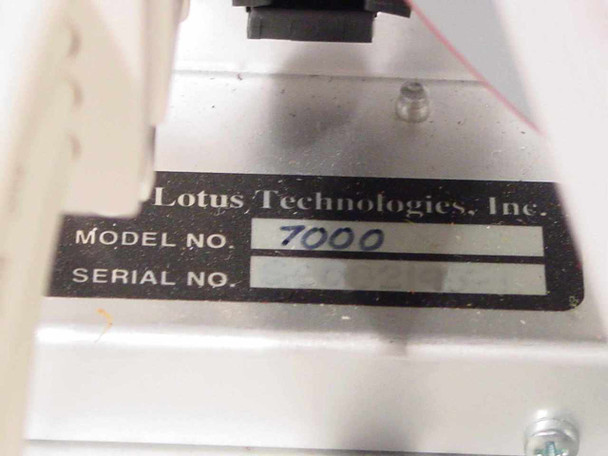

  • Lotus Technologies 7000 motor controller module – label close-up confirming Model No. 7000 on aluminum chassis

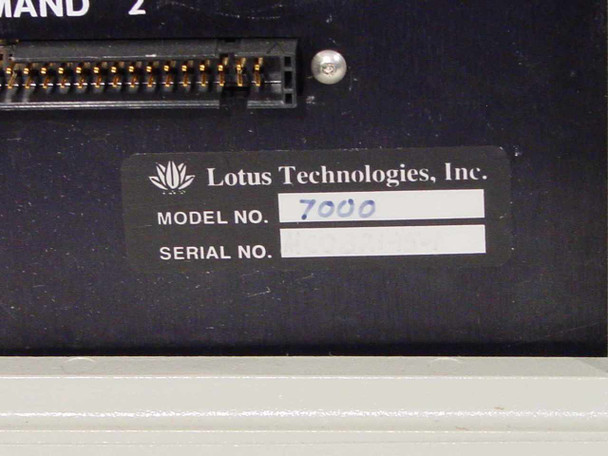

  • Lotus Technologies 7000 module – second label close-up showing Model No. 7000 with edge connector and COMMAND 2 text visible above

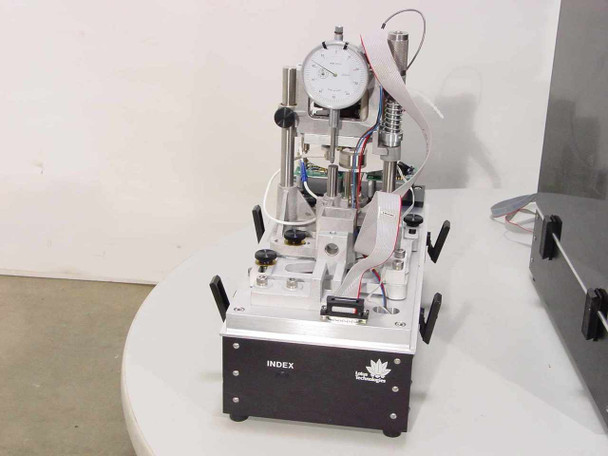

  • Lotus Technologies 7100 CSS tester module – single unit removed from enclosure showing dial indicator, 3-axis micro-gaging assembly, pneumatic components, and wiring

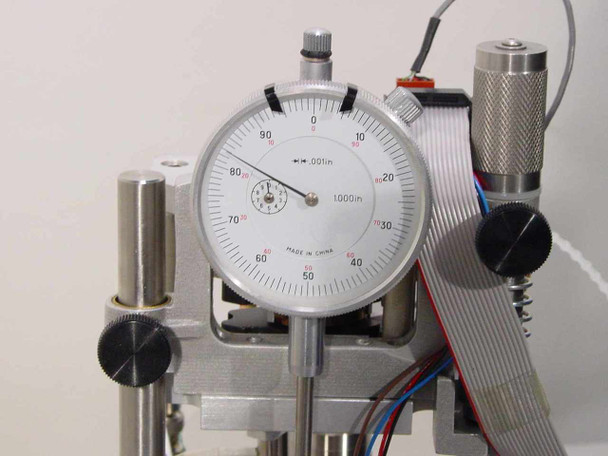

  • Lotus Technologies 7100 CSS module – close-up of dial indicator face graduated in 0.0001 inch increments, made in China, mounted on micro-gaging assembly

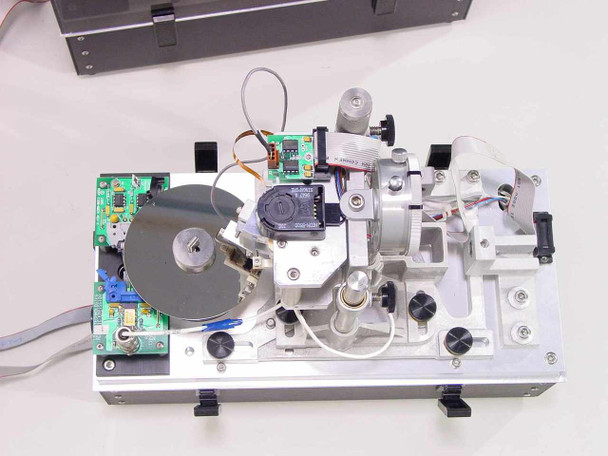

  • Lotus Technologies 7100 CSS module – interior view with enclosure removed showing hard disk drive under test, spindle motor assembly, optical encoder, PCB with components, and gaging mechanism

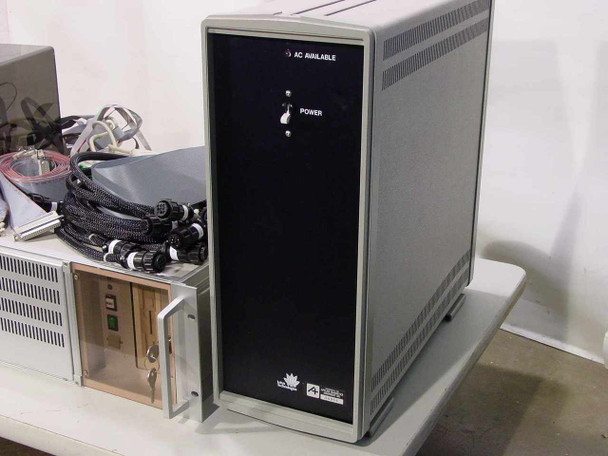

  • Lotus Technologies 7000 tower controller – front view showing AC Available indicator and Power switch on black front panel with Lotus Technologies and partner logos

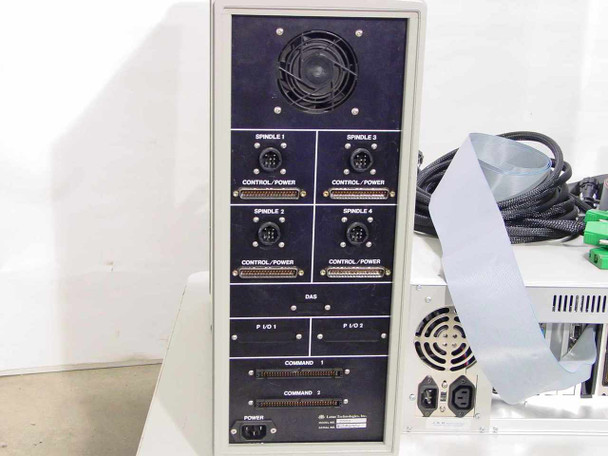

  • Lotus Technologies 7000 tower controller – rear panel showing Spindle 1-4 Control/Power ports, DAS connector, P/I/O 1 and 2, Command 1 and 2 ports, and IEC power inlet

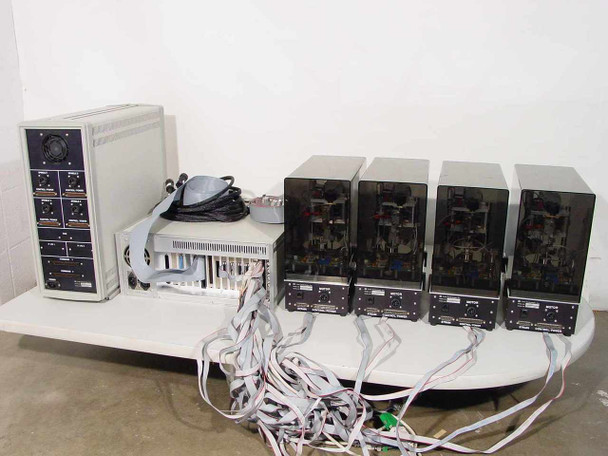

  • Lotus Technologies 7100 CSS system – full system laid out showing 7000 tower controller (left), rackmount computer (center), and all 4 CSS tester modules (right) with full cable runs

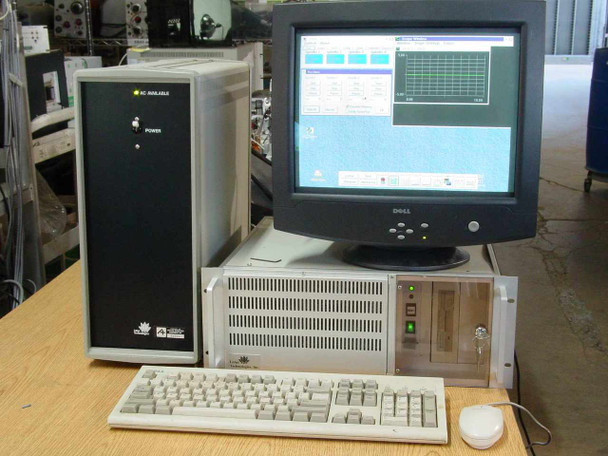

  • Lotus Technologies 7100 CSS system – system running with monitor showing CSS software interface with green graph traces, keyboard and mouse connected, confirming OS/2 boot and software operation
$2,500.00
Was: $5,000.00
Current Stock: 1

Sold Out

Description

Lotus Technologies 7100 CSS Hard Drive Tester System 4 Modules 7000 Controller

Hard disk drive surface certification and testing system with four independent test stations. Measures CSS (Clearance Slider Surface) contact, acoustic emissions, and strain using 3-axis micro-gaging technology.

Specifications & What's Included

  • 4x Lotus 7100 CSS test modules with benchtop form factor
  • 1x Lotus 7000 motor controller
  • Rackmount computer with 486DX processor, ALI M1425C chipset, OS/2 operating system
  • Delta-Tau PMAC-PC multi-axis motion controller
  • Acoustic Emissions PCB (1100-0010) and Smart Strain Amplifier PCBs (1100-0030, qty 2)
  • Four independent spindle motor controls with simultaneous operation capability
  • Serial interface board and all interconnect cables included

Applications

Used in hard disk drive manufacturing for CSS surface certification and head-disk interface validation. The system performs simultaneous multi-station testing with real-time acoustic and strain monitoring. Compatible with HDD production lines requiring quantified contact measurement and acoustic signature analysis during drive qualification.

Condition: For Parts or Not Working
This Lotus Technologies 7100 CSS Hard Drive Tester System has been powered up and partially tested at our facility. The system computer boots to OS/2, the CSS software loads and communicates with the motor controller module, and all four 7100 CSS modules respond to the software. However, the four spindle motors in the CSS modules fail to turn, which is the primary fault. The system is being sold AS-IS for parts or repair with this known defect. All components shown are included: four 7100 CSS tester modules with 3-axis micro-gaging assemblies, one 7000 motor controller module, one 7000 rackmount system computer (with 486DX/ALI M1425C motherboard, Lotus 1100-0010 Acoustic Emissions PCB, two Lotus 1100-0030 Smart Strain Amplifiers, Delta-Tau PMAC-PC controller, and Turbo Comm +4 serial board), and all interconnecting cables. Please view our photo set and contact us if you have any questions.
