Hansford Automation Station 120 Degas Epoxy Boat Loader Pneumatic Motion Table

(No reviews yet) Write a Review
SKU:
19522
MPN:
Degas Epoxy
Condition:
Used
Availability:
Usually ships within 3-5 business days — please contact us to arrange freight.
Weight:
900.00 LBS
Shipping:
Calculated at Checkout

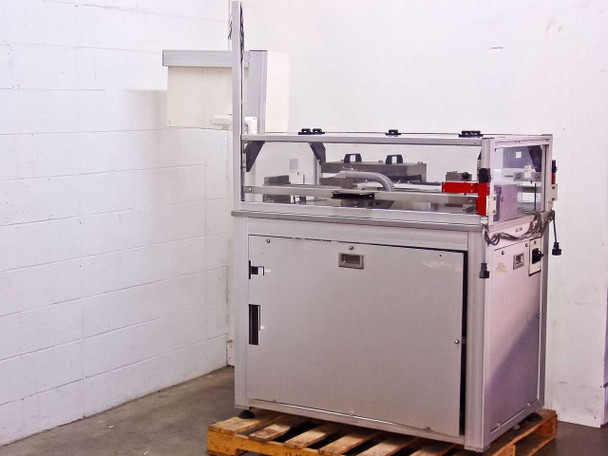

  • Hansford Automation Station 120 Degas Epoxy Boat Loader – full right-side view showing enclosed base cabinet and pneumatic motion table on top

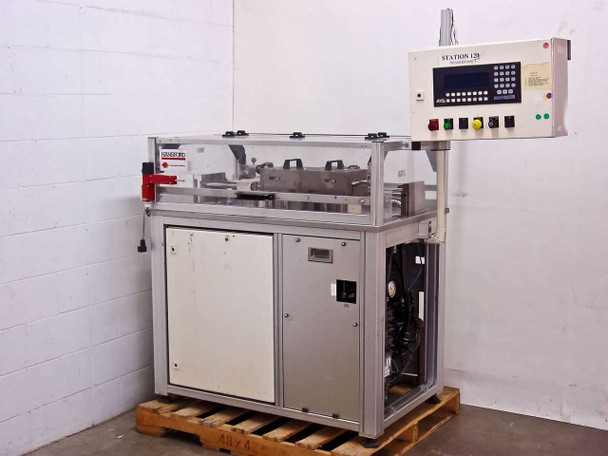

  • Hansford Station 120 Degas Epoxy Boat Loader – left-side view showing Uticor PMD 450 Station 120 control panel mounted on right post

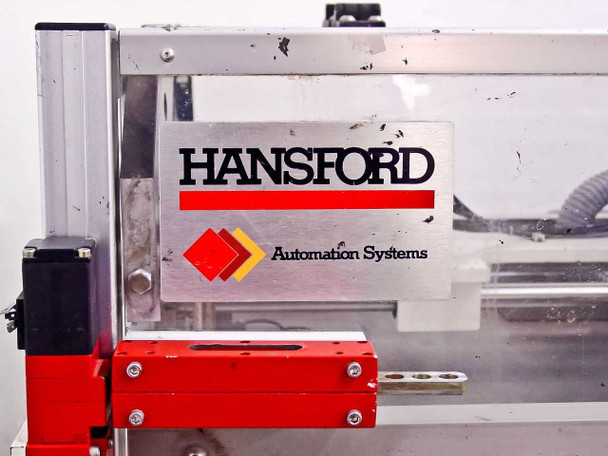

  • Hansford Automation Systems logo plate on the machine frame – close-up showing brand name and red/gold diamond logo

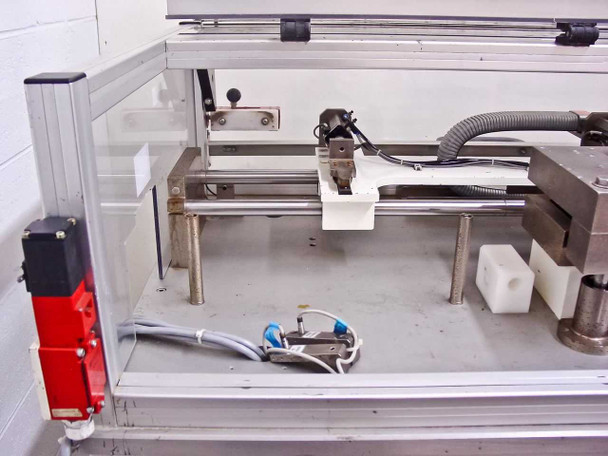

  • Pneumatic linear motion table interior – showing shuttle carriage, pneumatic cylinders, guide rails, and tooling fixture on aluminum frame

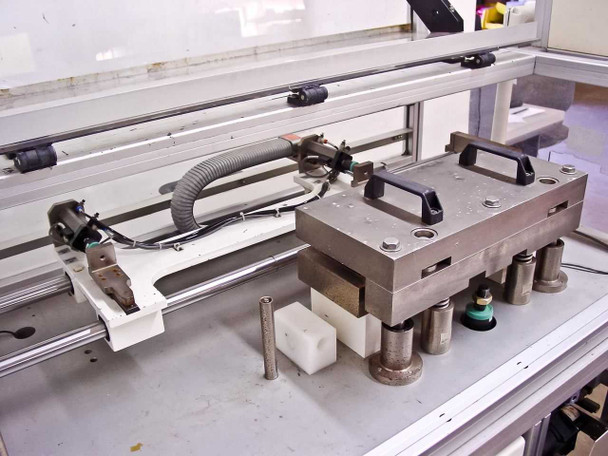

  • Close-up of boat shuttle tooling fixture on linear rails – showing handle-equipped metal platen, guide posts, and pneumatic actuator assembly

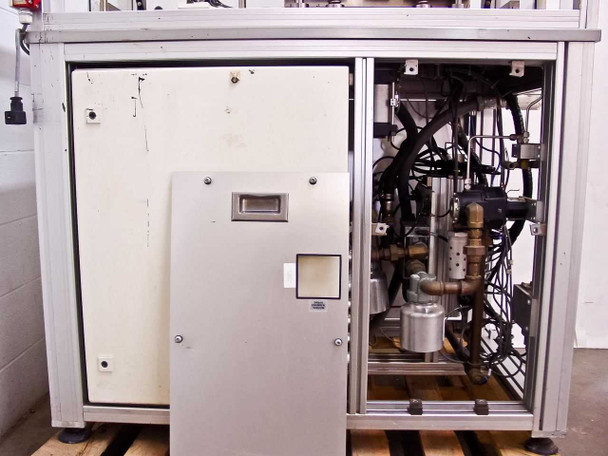

  • Lower base cabinet interior – left door open showing enclosed panel side; right bay open showing hydraulic/pneumatic plumbing, regulator, and wiring

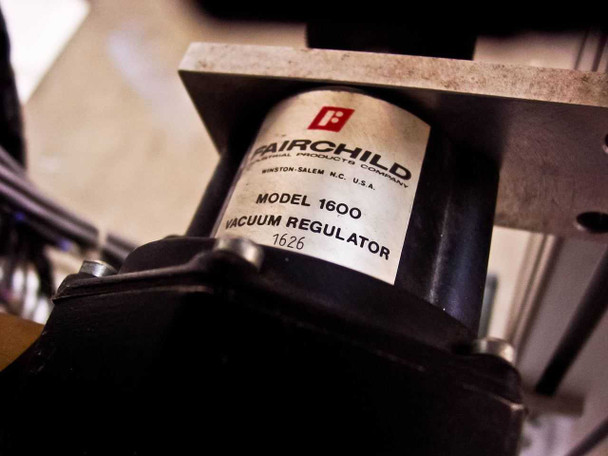

  • Fairchild Model 1600 Vacuum Regulator label – close-up showing model number and Winston-Salem NC USA manufacturer information

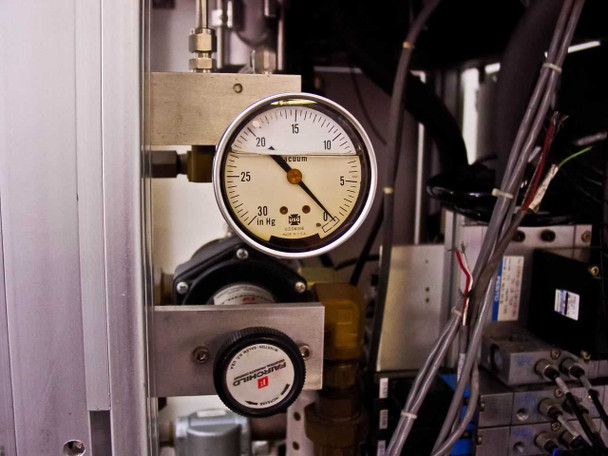

  • Vacuum pressure gauge reading approximately 0–30 in Hg range with Fairchild regulator below it – mounted in pneumatic bay

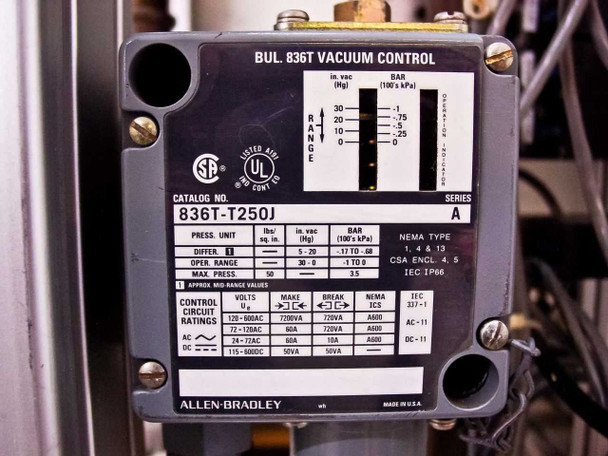

  • Allen-Bradley BUL. 836T Vacuum Control unit label – showing Cat. No. 836T-T250J Series A, CSE/UL listed, NEMA Type 1/4/13 ratings

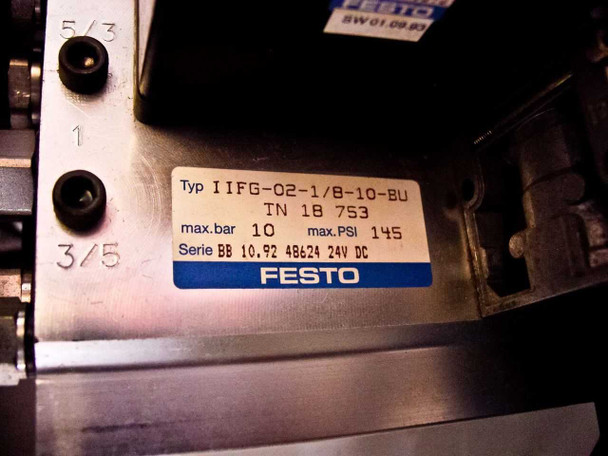

  • Festo pneumatic valve label – close-up showing Type IIFG-02-1/8-10-BU, TN 18753, max 10 bar / 145 PSI, 24V DC, Serie BB

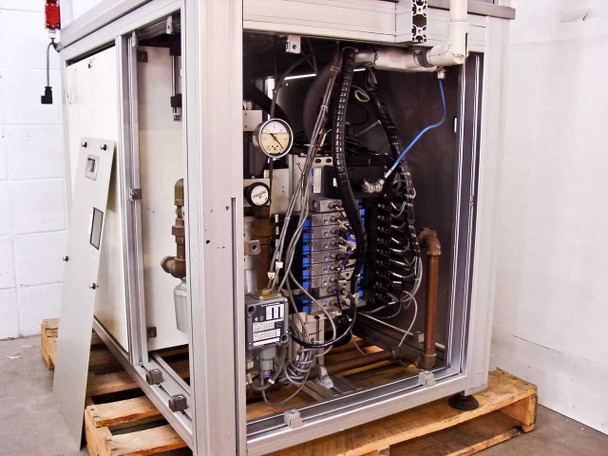

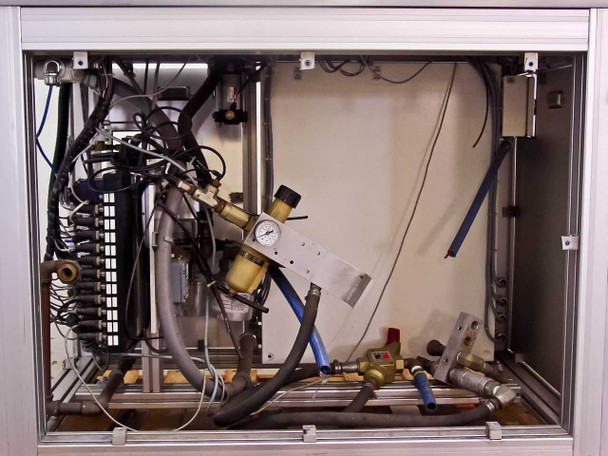

  • Base cabinet fully open – showing complete pneumatic/electrical bay with manifold valves, wiring harnesses, pressure gauges, and regulators

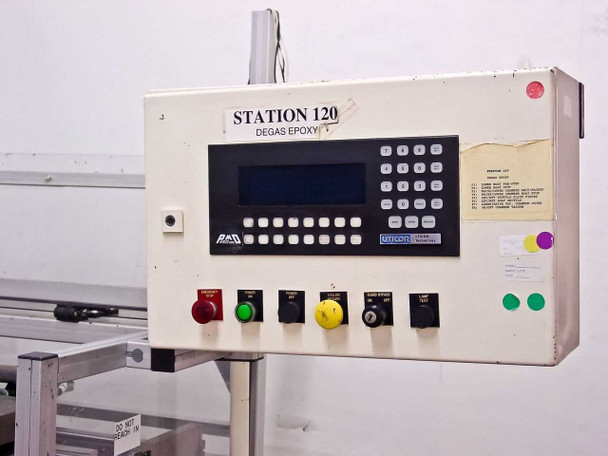

  • Station 120 Degas Epoxy Uticor PMD 450 control panel – full view showing alphanumeric display, keypad, E-stop, Power On/Off, and function buttons

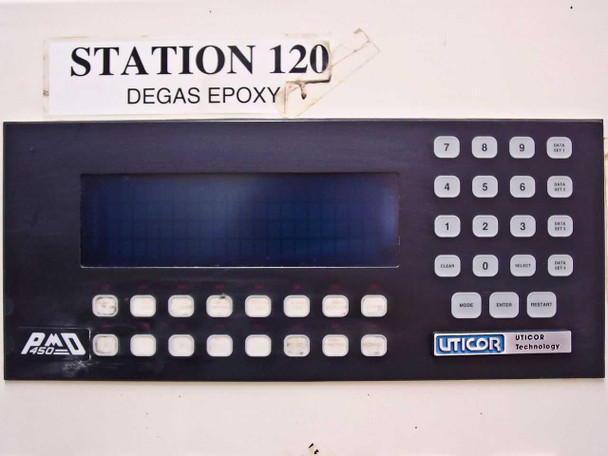

  • Uticor PMD 450 controller face close-up – showing LCD display, membrane keypad, PAD450 and Uticor Technology branding, Station 120 / Degas Epoxy label

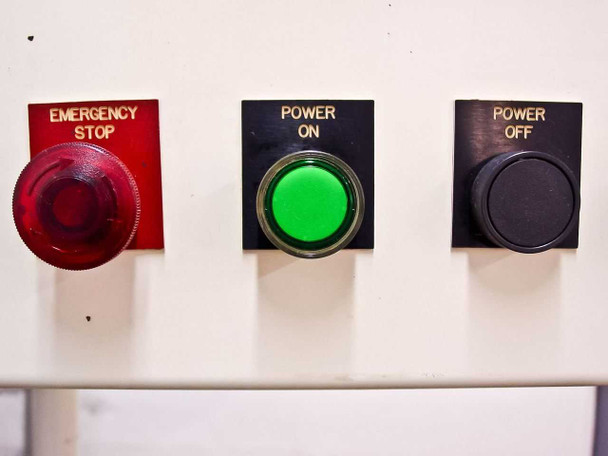

  • Control panel button cluster – Emergency Stop (red mushroom), Power On (green illuminated), and Power Off (black) buttons

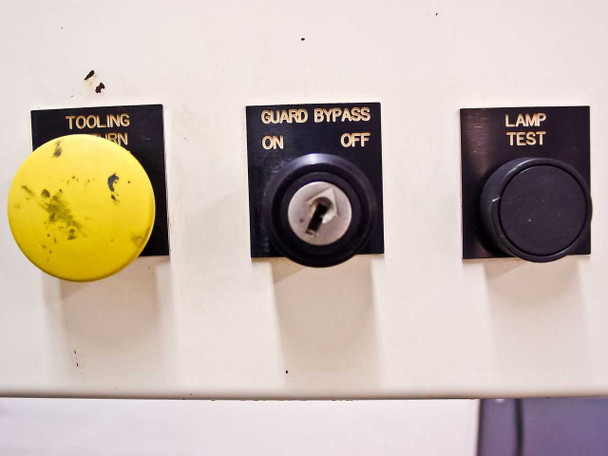

  • Control panel secondary buttons – Tooling Return (yellow), Guard Bypass On/Off (key switch), and Lamp Test buttons

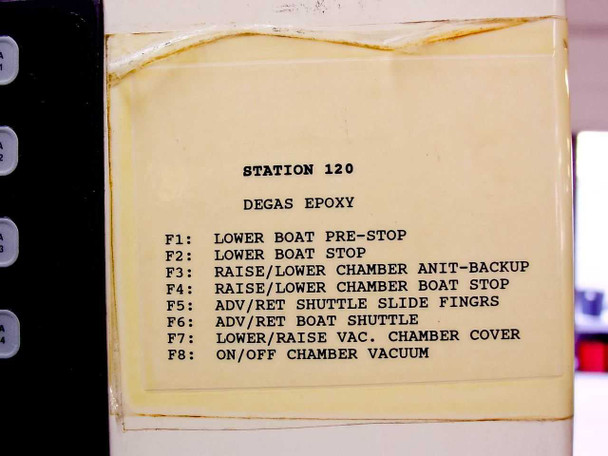

  • Station 120 Degas Epoxy function key reference card – showing F1–F8 assignments: lower boat pre-stop, lower boat stop, raise/lower chamber, shuttle functions, vacuum chamber cover, chamber vacuum on/off

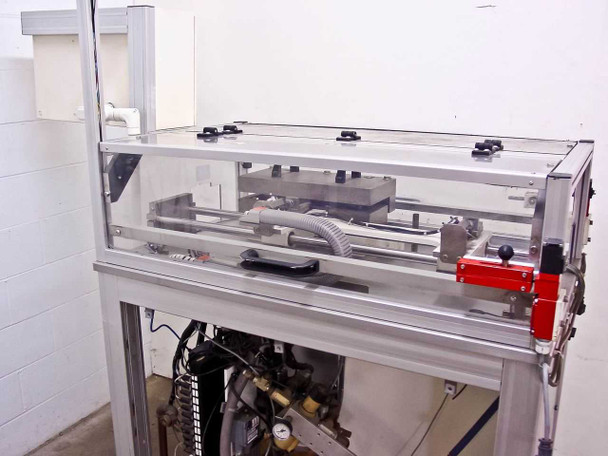

  • Pneumatic motion table overhead view – showing full linear shuttle rail assembly with clear acrylic safety guarding and boat fixture in retracted position

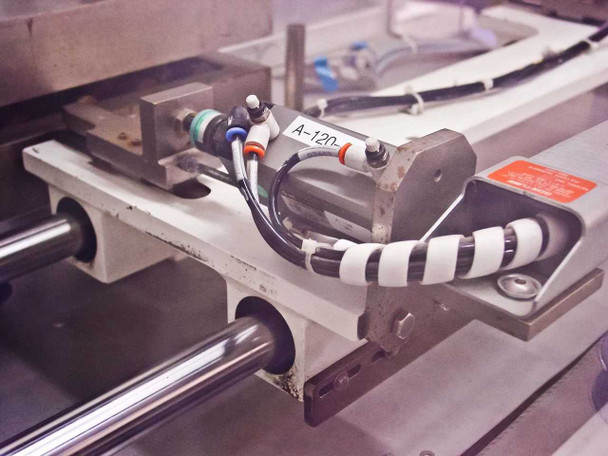

  • Shuttle carriage close-up – showing label marked A-120, pneumatic fittings with push-to-connect tubing, sensor, and linear rail mounting

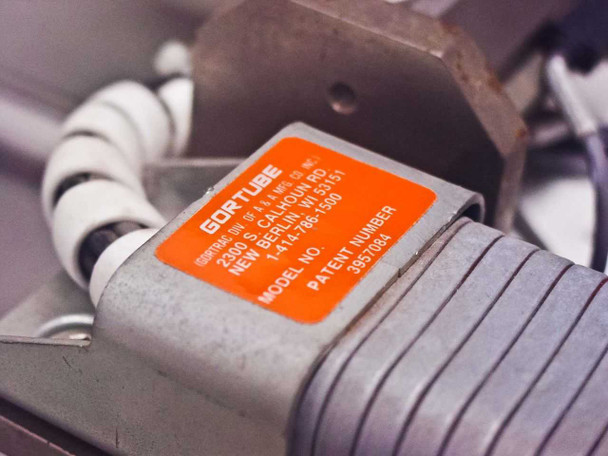

  • Gortube flexible conduit label – orange label showing Gortube brand, New Berlin WI, Model No. 3957084 patent number

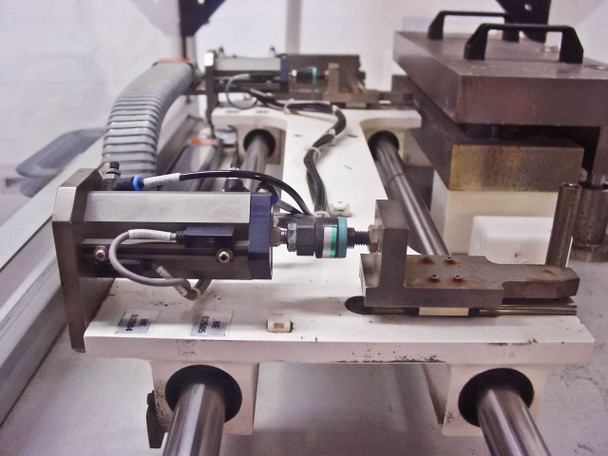

  • Linear rail and boat fixture end view – showing pneumatic cylinder, proximity sensor, shuttle slide assembly, and tooling platen with guide posts
  • Hansford Automation Degas Epoxy Boat Loader-Pneumatic Motion Table w/PMD - AS-IS
  • Hansford Automation Degas Epoxy Boat Loader-Pneumatic Motion Table w/PMD - AS-IS
  • Hansford Automation Degas Epoxy Boat Loader-Pneumatic Motion Table w/PMD - AS-IS
  • Hansford Automation Degas Epoxy Boat Loader-Pneumatic Motion Table w/PMD - AS-IS
  • Hansford Automation Degas Epoxy Boat Loader-Pneumatic Motion Table w/PMD - AS-IS
$900.00
Was: $1,800.00
Current Stock: 1

Sold Out

Description

Hansford Automation Station 120 Degas Epoxy Boat Loader Pneumatic Motion Table

Freestanding pneumatic automation station designed for degassing epoxy in semiconductor substrate boat loading operations. Uses electric-over-pneumatic control valves and a vacuum chamber with cover raise/lower function.

Specifications & What's Included

  • Uticor PMD 450 Electronic Controller
  • Festo pneumatic valves (Type IIFG-02-1/8-10-BU, 10 bar / 145 PSI, 24V DC)
  • Allen-Bradley vacuum control (Cat. 836T-T250J, Series A, NEMA 1/4/13)
  • Fairchild Model 1600 vacuum regulator
  • Pneumatic cylinders, pressure regulators, and air filter traps
  • Integrated power distribution panel
  • Dimensions: 75 in. L x 36 in. W x 75 in. H

Applications

This station type is used in semiconductor and electronics manufacturing to remove air bubbles from epoxy resins before substrate boat processing. The pneumatic motion table and vacuum chamber integration supports automated degassing cycles in production lines. Hansford Automation Systems equipment was standard in substrate preparation workflows where epoxy cure quality and void reduction were critical.

Condition: For Parts or Not Working
This Hansford Automation Station 120 Degas Epoxy Boat Loader is being sold AS-IS for parts or repair only. The unit is not guaranteed to be functional and has not been tested at our facility. It is a complete system including the Uticor PMD 450 electronic controller, Festo electric-over-pneumatic control valves, Allen-Bradley 836T-T250J vacuum control unit, Fairchild Model 1600 vacuum regulator, pneumatic cylinders, pressure regulators, air filter traps, and an integrated power distribution panel. The machine shows typical industrial wear throughout — scuffing and soiling on the control panel face, staining and adhesive residue on the function key card, general grime on the pneumatic bay plumbing, and wear on the yellow Tooling Return button. The overall frame and aluminum motion table structure appear intact. Overall dimensions are 75 in. L x 36 in. W x 75 in. H. This is a substantial and complex system being sold strictly as a parts or project platform. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hansford Automation Systems
Model:
Station 120
MPN:
Station 120
Type:
Degas Epoxy Boat Loader / Pneumatic Motion Table
SKU:
19522
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes Uticor PMD 450 controller, Festo valves, Allen-Bradley vacuum control, Fairchild vacuum regulator, pneumatic cylinders, pressure regulators, air filter traps, and power distribution panel
Application:
Degas epoxy / semiconductor substrate boat loading automation
Controller:
Uticor PMD 450 Electronic Controller (Uticor Technology)
Pneumatic Valve Brand:
Festo — Type IIFG-02-1/8-10-BU, TN 18753, max 10 bar / 145 PSI, 24V DC
Vacuum Control:
Allen-Bradley BUL. 836T, Cat. 836T-T250J, Series A, NEMA 1/4/13
Vacuum Regulator:
Fairchild Model 1600 Vacuum Regulator
Control Panel Label:
Station 120 – Degas Epoxy
Motion Type:
Pneumatic (electric-over-pneumatic control valves)
Vacuum Chamber:
Yes — vacuum chamber with cover raise/lower function
Overall Dimensions:
75 in. L x 36 in. W x 75 in. H
Form Factor:
Freestanding floor unit on leveling feet / pallet base
Country/Region of Manufacture:
United States
Power Distribution:
Integrated power distribution panel
Compatible With:
Semiconductor / electronics epoxy boat degassing process lines
Condition Notes:
Hansford Automation Station 120 Degas Epoxy Boat Loader sold AS-IS for parts or repair only. Not tested or guaranteed functional. Includes Uticor PMD 450 controller, Festo valves, Allen-Bradley vacuum control, Fairchild regulator, pneumatic
