Pneumatic Toggle Clamp Fixture Assembly Industrial Automation Vacuum Chuck

(No reviews yet) Write a Review
SKU:
26977
MPN:
Pneumatic
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

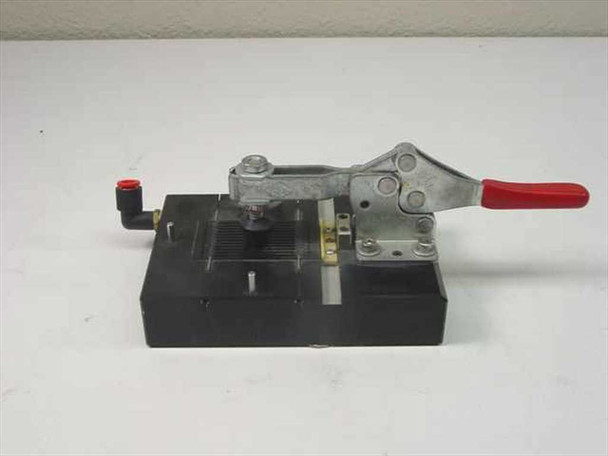

  • Pneumatic toggle clamp fixture assembly – left-side view showing red-handle toggle clamp over black aluminum base with push-in elbow air fitting

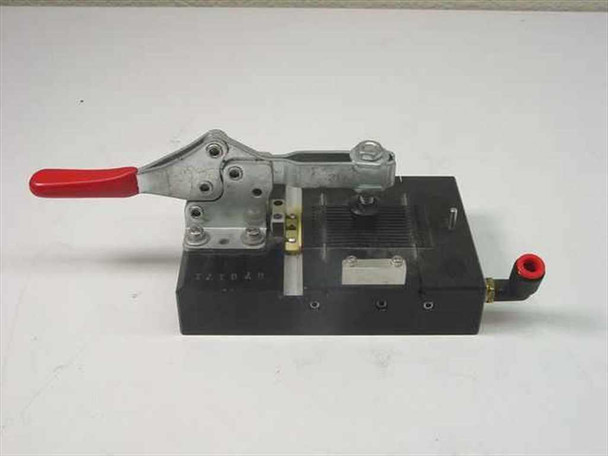

  • Pneumatic toggle clamp fixture assembly – right-side view showing toggle clamp mechanism, brass hardware, and opposite-side push-in fitting

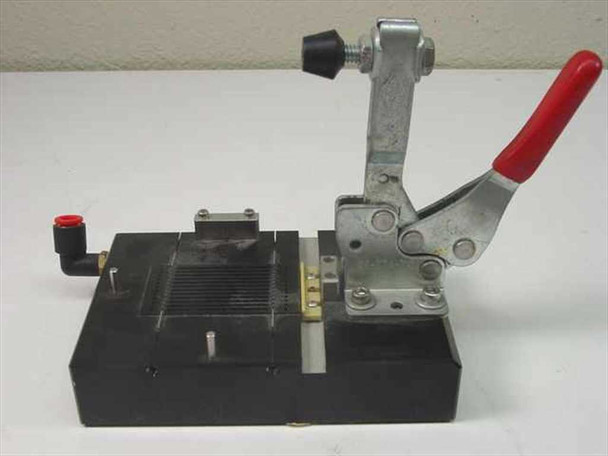

  • Pneumatic toggle clamp fixture assembly – front-angle view showing toggle clamp arm with rubber contact tip, black base block, and slotted top surface

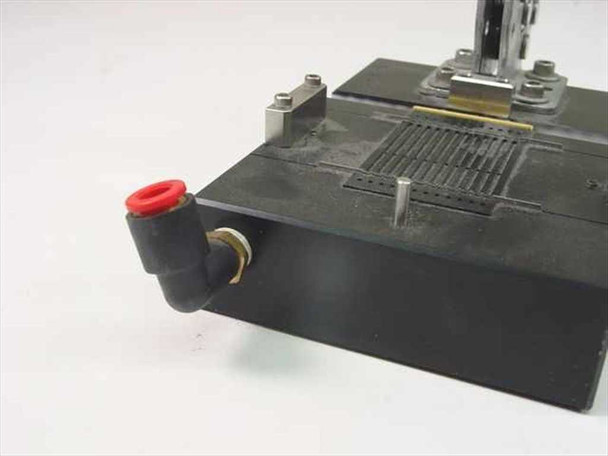

  • Pneumatic toggle clamp fixture assembly – close-up of push-in elbow pneumatic fitting with red ring on left side of base
  • Pneumatic toggle clamp fixture assembly – top-down view of slotted vacuum chuck grid surface with locating pins and mounting hardware
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Pneumatic Toggle Clamp Fixture Assembly Industrial Automation Vacuum Chuck

Pneumatic toggle clamp fixture assembly for benchtop workholding applications. Features a black anodized aluminum base with slotted vacuum chuck surface, horizontal toggle clamp with red handle, and push-in pneumatic fittings.

Specifications & What's Included

  • Model: Custom Pneumatic Toggle Clamp Fixture (Unbranded)
  • Base Material: Black anodized aluminum block
  • Clamp Type: Horizontal toggle clamp with red handle
  • Actuation: Pneumatic / Manual toggle
  • Pneumatic Fittings: Push-in elbow fittings (approx 6mm OD)
  • Work Surface: Slotted vacuum chuck grid
  • Mounting: Two locating pins on base
  • Contact Pad: Rubber tip spindle screw on clamp arm

Applications

Used in industrial automation workholding for semiconductor and PCB handling operations. Vacuum chuck fixtures are common in assembly lines and precision manufacturing environments where repeatable positioning and holding of small components is required. Benchtop form factor suits manufacturing floors, testing stations, and light assembly operations.

Condition: Used
This pneumatic toggle clamp fixture assembly has been inspected and appears to be in good used condition. The black aluminum base block is solid with no cracks or major damage. The toggle clamp mechanism moves freely and the red handle is intact. Both push-in pneumatic elbow fittings are present. The slotted vacuum chuck surface on the top of the base shows some surface marks and darkening consistent with normal use. The brass hardware and locating pins are in place. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
Custom Pneumatic Toggle Clamp Fixture
Type:
Pneumatic Toggle Clamp Fixture Assembly
SKU:
26977
Condition:
Used – Inspected
Seller Notes:
Sold as pictured; one pneumatic toggle clamp fixture assembly
Application / Use Case:
Industrial automation workholding, semiconductor, PCB handling
Actuation:
Pneumatic / Manual Toggle Clamp
Base Material:
Black anodized aluminum block
Clamp Type:
Horizontal toggle clamp with red handle
Pneumatic Fitting Type:
Push-in elbow fitting (red/black), approx 6mm OD
Work Surface Feature:
Slotted vacuum chuck / grid surface on base top
Mounting Pins:
Two locating / guide pins visible on base top
Contact Pad:
Rubber tip / spindle screw on clamp arm
Form Factor:
Benchtop fixture
Interface / Connection:
Push-in pneumatic tube fittings
Condition Notes:
This pneumatic toggle clamp fixture assembly has been inspected and is in good used condition. Toggle clamp moves freely, fittings present, base block solid with normal use wear on the slotted chuck surface.
