Description
Carr Lane Custom PCB Test Jig Fixture w/ Toggle Clamp Pneumatic Valve AS-IS
Custom-built PCB test fixture with manual toggle clamp and pneumatic valve actuation. Designed for production-line testing or fixturing of circuit boards during assembly or quality control operations.
Specifications & What's Included
- Brand: Carr Lane
- Base: Black anodized aluminum plate
- Clamp: Manual toggle clamp (over-center hold-down type)
- Actuation: Pneumatic valve manifold with brass fittings and push-fit tubing connections
- Included: Toggle clamp, pneumatic valve, PCB nest, ribbon cables
Applications
PCB test fixtures are standard equipment in electronics manufacturing for holding circuit boards during in-circuit testing (ICT), functional test, or programming operations. Toggle clamps with pneumatic actuation provide repeatable hold-down force across production runs. This custom unit was configured for specific board geometry and test requirements typical of mid-volume PCB assembly operations.
Condition: Used

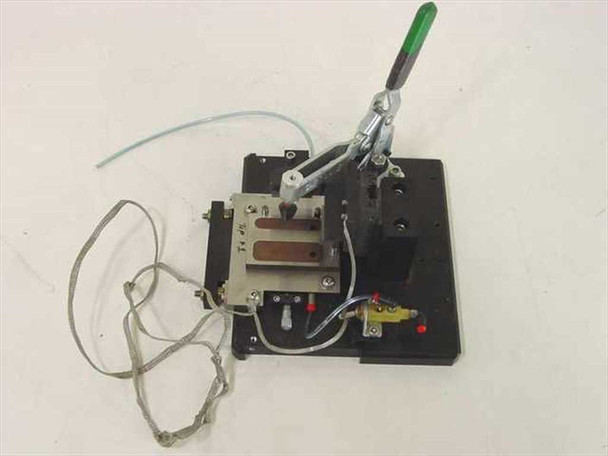

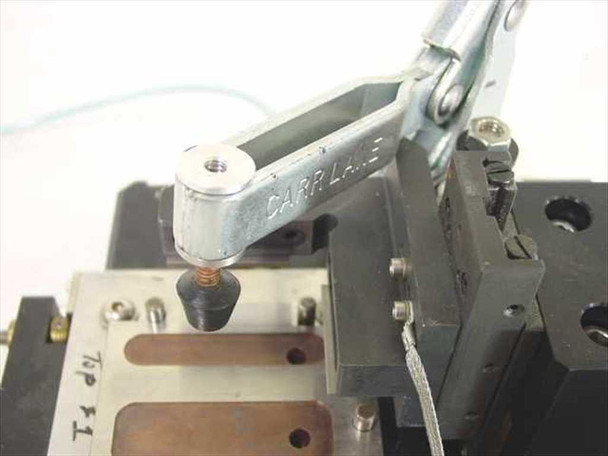

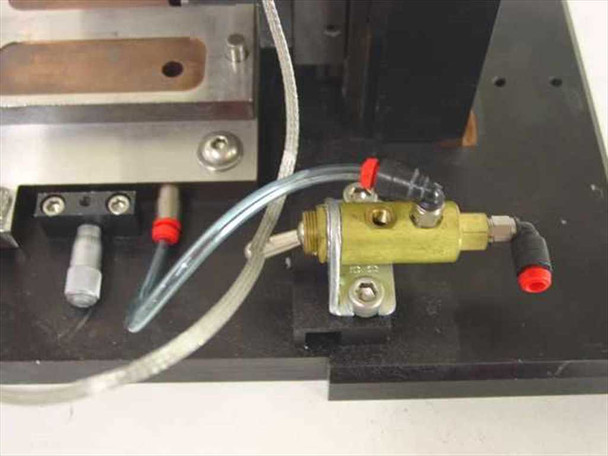

Carr Lane Custom PCB Test Jig Fixture with toggle clamp pneumatic valve in used condition. The fixture includes a Carr Lane over-center toggle clamp, brass pneumatic valve manifold with push-fit tubing connections and red-capped ports, machined aluminum PCB nest assembly, and ribbon cable wiring. The black aluminum base plate shows typical surface wear and minor scuffing from production use. The toggle clamp arm and nest hardware are intact and undamaged. A solid used fixture with multiple functional components.
Carr Lane Custom PCB Test Jig Fixture with toggle clamp pneumatic valve in used condition. The fixture includes a Carr Lane over-center toggle clamp, brass pneumatic valve manifold with push-fit tubing connections and red-capped ports, machined aluminum PCB nest assembly, and ribbon cable wiring. The black aluminum base plate shows typical surface wear and minor scuffing from production use. The toggle clamp arm and nest hardware are intact and undamaged. A solid used fixture with multiple functional components.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Carr Lane |
Model: |
Custom Test Jig Fixture |
MPN: |
NL |
SKU: |
26004 |
Type: |
PCB Test Fixture / Production Jig |
Condition: |
As-Is / For Parts or Not Working |
Clamp Brand: |
Carr Lane |
Clamp Type: |
Toggle Clamp (Over-Center Hold-Down) |
Actuation: |
Manual toggle clamp with pneumatic valve manifold |
Base Material: |
Black anodized aluminum base plate |
Pneumatic Fitting: |
Brass pneumatic valve manifold with push-fit tubing |
Included Components: |
Toggle clamp, pneumatic valve, PCB nest, ribbon cables |
Application: |
PCB / circuit board production test or fixturing |
Seller Notes: |
Sold AS-IS for parts or repair; includes clamp, valve, nest, and ribbon cables |
Condition Notes: |
Carr Lane PCB test jig fixture w/ toggle clamp & pneumatic valve. Used condition, surface wear on base, all components intact. Includes valve manifold, nest assembly, wiring. |
