Custom Calibration Fixture Industrial Automation XY Stage Probe Holder Benchtop

(No reviews yet) Write a Review
SKU:
31217
MPN:
Calibration
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
10.00 LBS
Shipping:
Calculated at Checkout

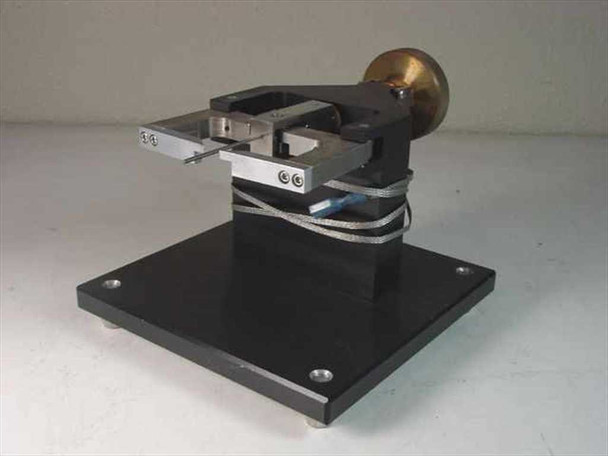

  • Custom calibration fixture front-left view showing XY adjustment stage, spring-loaded probe holder, brass knurled actuator knob, and black anodized base plate with rubber feet
  • Custom calibration fixture rear-right view showing brass knurled actuator knob, braided wire harness wrapped around black body, and flat base plate
  • Custom calibration fixture top-down close-up showing spring-loaded probe holder with center pin, two coil springs, and blue 2-pin wire connector
  • Close-up of blue 2-pin electrical connector on braided wire harness attached to calibration fixture body
$125.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Custom Calibration Fixture Industrial Automation XY Stage Probe Holder Benchtop

Custom-built calibration fixture designed for precision probe positioning and alignment in industrial automation systems. Features a benchtop XY adjustment stage with spring-loaded probe holder for repeatable measurement and calibration tasks.

Specifications & What's Included

  • Anodized aluminum body with black finish
  • XY adjustment stage with brass knurled knobs for manual positioning
  • Spring-loaded probe/pin holder for secure probe retention
  • Flat base plate with rubber feet for benchtop stability
  • Braided wire cable harness with blue 2-pin connector
  • Unbranded, custom fixture design

Applications

XY calibration fixtures are used in industrial automation for probe alignment, sensor positioning, and precision measurement setups. Common applications include coordinate measurement machine (CMM) calibration, probing system setup, and benchtop inspection station configuration. Typically found in manufacturing quality control, metrology labs, and automation assembly lines requiring repeatable probe positioning.

Condition: Used
This custom calibration fixture with XY adjustment stage and spring-loaded probe holder has been inspected and appears to be in good used condition. The black anodized base and body show light surface wear consistent with prior use in an automation or calibration environment. The brass actuator knob, probe holder, coil springs, and braided wire harness with blue 2-pin connector all appear intact and undamaged. No brand markings or identifying labels are visible on the unit. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
Custom Calibration Fixture
Type:
Calibration Fixture / Probe Holder
SKU:
31217
Condition:
Used – Inspected
Form Factor:
Benchtop
Base Material:
Anodized Aluminum / Black
Stage Type:
XY Adjustment Stage
Actuator:
Brass Knurled Knob
Probe Holder:
Spring-Loaded Probe/Pin Holder
Cable / Connector:
Braided Wire w/ Blue 2-Pin Connector
Mounting:
Flat Base Plate with Rubber Feet
Application:
Industrial Automation Calibration / Probing
Seller Notes:
Includes braided cable harness with blue 2-pin connector. No brand markings visible.
Condition Notes:
This custom calibration fixture with XY stage and probe holder has been inspected and is in good used condition. Body shows light wear. Brass knob, probe holder, springs, and braided wire harness appear intact. No brand markings visible.
View AllClose

Related Products

Related Products

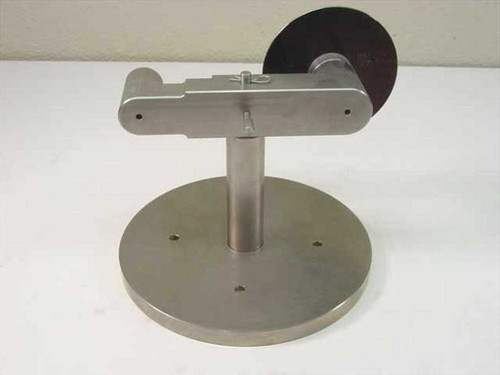

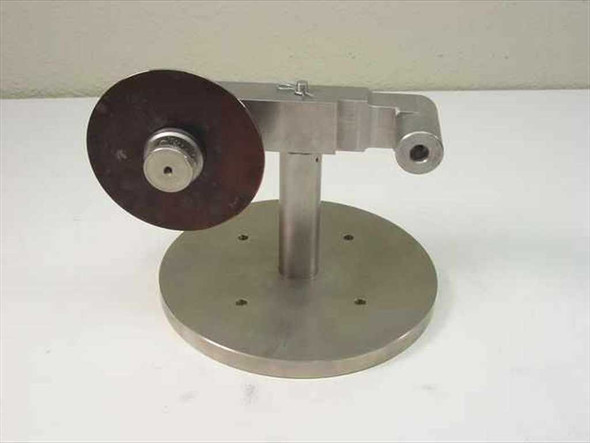

Custom Scientific stainless steel component holder stand — front-right view showing round bolt-down base, vertical post, adjustable pivot arm, and dark abrasive or rubber disc mounted on center hub Custom Scientific stainless steel component holder stand — rear-left view showing reverse side of pivot arm assembly, locking thumbscrew detail, and three-hole round base
