Amistar PlaceMaster FP JEDEC Tray Chip Loader 13-Tray SMT Pick Place Feeder

(No reviews yet) Write a Review
SKU:
19117
MPN:
JEDEC
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
210.00 LBS
Shipping:
Calculated at Checkout

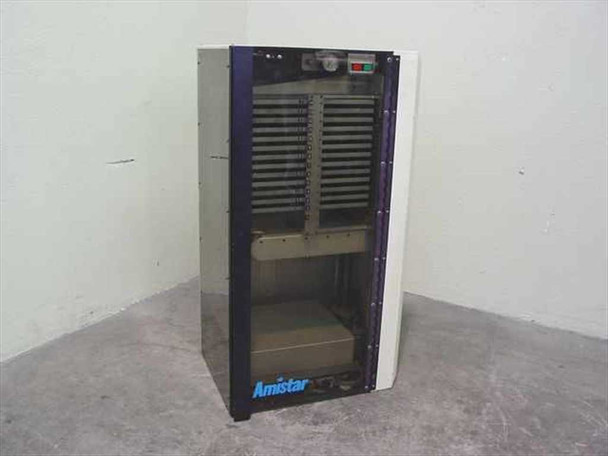

  • Amistar PlaceMaster FP JEDEC Tray Chip Loader — front view with door closed, Amistar logo visible on lower cabinet

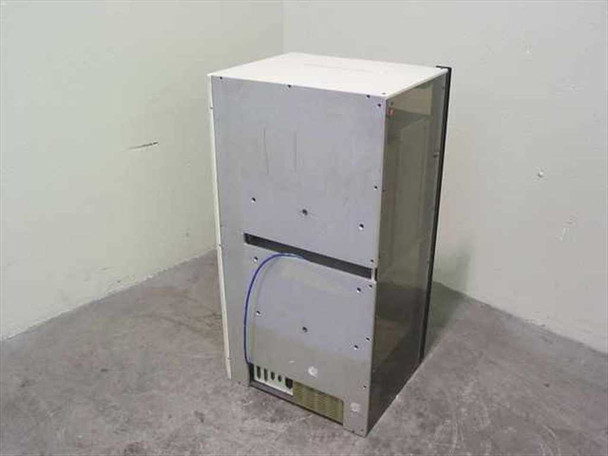

  • Amistar PlaceMaster FP JEDEC Tray Chip Loader — rear view showing pneumatic hose routing and cabinet back panel
  • Amistar PlaceMaster FP JEDEC Tray Chip Loader — front door open showing 13 numbered JEDEC loading trays, pressure gauge, and start/stop controls at top

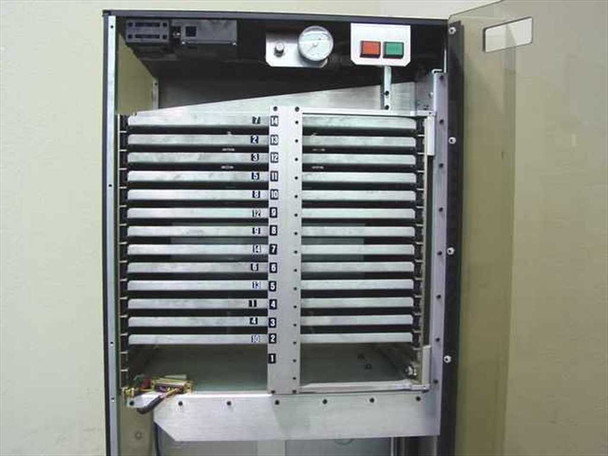

  • Amistar PlaceMaster FP — interior close-up of 13 numbered JEDEC tray stack with pressure gauge and red/green push-button controls visible at top

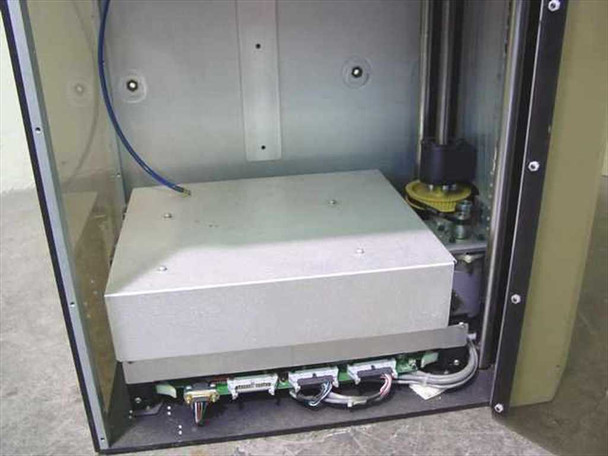

  • Amistar PlaceMaster FP — lower interior compartment showing electronics enclosure, pneumatic components, and control PCBs beneath tray stack
  • Amistar PlaceMaster FP — detail of upper tray section with two JEDEC trays extended, showing tray numbering and tray rail guides

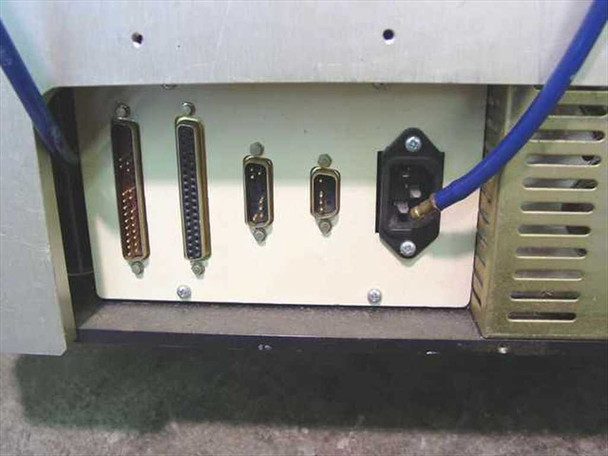

  • Amistar PlaceMaster FP — rear bottom panel showing parallel interface connector, two DB9 serial connectors, and IEC AC power inlet with blue pneumatic hose
$250.00
Was: $500.00
Current Stock: 1

Sold Out

Description

Amistar PlaceMaster FP JEDEC Tray Chip Loader 13-Tray SMT Pick Place Feeder

Floor-standing component feeder designed for surface-mount technology (SMT) pick-and-place assembly lines. Loads and manages JEDEC-standard trays of electronic components for automated placement systems.

Specifications & What's Included

  • Model: Amistar PlaceMaster FP
  • 13 JEDEC loading trays included
  • Dimensions: 20" W × 20" D × 37" H
  • Data interface: Parallel + DB9 RS-232 connections
  • Pneumatic hose included
  • Made in United States

Applications

JEDEC tray feeders integrate into automated SMT assembly lines to supply component trays to pick-and-place machines. This unit is compatible with Amistar PlaceMaster systems and handles high-volume production of circuit board assembly. Commonly used in electronics manufacturing environments for consistent component presentation and feed control.

Condition: For Parts or Not Working
This Amistar PlaceMaster FP JEDEC Tray Chip Loader powers on but does not respond beyond that — it does not advance to normal operation. The cause is unknown; the unit may require a compressed air supply to function or there may be another underlying issue. It is being sold strictly as-is for parts or repair with no functionality guarantee. The cabinet exterior shows general use wear consistent with production floor use. All 13 JEDEC loading trays are present, and the rear data interface connectors and pneumatic hose are intact as shown in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Amistar
Model:
PlaceMaster FP
MPN:
PlaceMaster FP JEDEC Tray Option
Type:
JEDEC Tray Chip Loader / SMT Tray Feeder
SKU:
19117
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes 13 JEDEC loading trays, pneumatic hose, and data interface connections
Number of Trays:
13
Interface Type:
Data interface connections (parallel + DB9 RS-232 visible on rear panel)
Pneumatic:
Yes — pneumatic hose included
Form Factor:
Floor-standing cabinet
Dimensions:
20" W x 20" D x 37" H (approx.)
Application:
SMT pick-and-place component feeding, JEDEC tray handling
Compatible With:
Amistar PlaceMaster pick-and-place systems
Country/Region of Manufacture:
United States
Condition Notes:
Amistar PlaceMaster FP JEDEC Tray Chip Loader powers on but is otherwise unresponsive. Sold as-is for parts or repair — no functionality guarantee. May require compressed air or has an unknown fault. All 13 trays present.
