Description
Perkin-Elmer Vacuum Products Chamber 3 Control Panel Rackmount 110VAC
This is a control panel for Perkin-Elmer vacuum deposition systems. It manages chamber operations and vacuum pump functions via multi-pin connectors and front-panel toggles.
Specifications & What's Included
- Form factor: 19" rackmount
- Power: 110 VAC, 5A fuse
- Connectors: 10 multi-pin circular (J301–J310)
- Controls: HV Sec Manifold Rough, Chamber Rough, Chamber Under Vacuum, Cryo Manifold, N2 Purge (HV Sec and Chamber), Lean Valve, Ion Pump Check, RGA, Chamber Lift Up/Down
Applications
This panel is used in PVD and CVD vacuum deposition systems to control chamber pressure, gas flow, and pump operations. It was standard equipment in Perkin-Elmer sputtering and thin-film deposition systems. The panel interfaces with vacuum gauges, turbo pumps, and gas manifolds to manage the deposition process.
Condition: Used

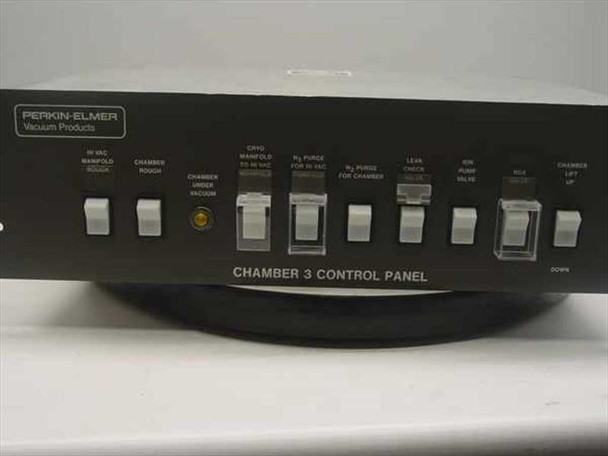

This Perkin-Elmer Vacuum Products Chamber 3 Control Panel was pulled from a working vacuum system environment where it was in active use. It has been inspected and appears to be in good condition. The front panel toggle switches, indicator lamp, and engraved labels are intact and show normal wear consistent with lab use. The rear aluminum panel houses all 10 multi-pin circular connectors (J301–J310), which appear clean and undamaged. The rear power section shows the 110 VAC IEC inlet, 5A fuse holder, and AC power toggle — all present and intact. Some light surface oxidation and handling marks are visible on the aluminum chassis, typical for equipment of this type. Please view our photo set and contact us if you have any questions.
This Perkin-Elmer Vacuum Products Chamber 3 Control Panel was pulled from a working vacuum system environment where it was in active use. It has been inspected and appears to be in good condition. The front panel toggle switches, indicator lamp, and engraved labels are intact and show normal wear consistent with lab use. The rear aluminum panel houses all 10 multi-pin circular connectors (J301–J310), which appear clean and undamaged. The rear power section shows the 110 VAC IEC inlet, 5A fuse holder, and AC power toggle — all present and intact. Some light surface oxidation and handling marks are visible on the aluminum chassis, typical for equipment of this type. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Perkin-Elmer |
Model: |
Chamber 3 Control Panel |
MPN: |
Chamber 3 Control Panel |
Type: |
Vacuum Chamber Control Panel |
SKU: |
20321 |
Form Factor: |
Rackmount |
Power Requirements: |
110 VAC, 5A Fuse |
Input Voltage: |
110 VAC |
Fuse Rating: |
5A |
Number of Connectors: |
10 (J301–J310, multi-pin circular) |
Connector Types: |
Multi-pin circular connectors (J301–J310) |
Controls: |
HV Sec Manifold Rough, Chamber Rough, Chamber Under Vacuum, Cryo Manifold, N2 Purge (HV Sec), N2 Purge (Chamber), Lean Valve, Ion Pump Check, RGA, Chamber Lift Up/Down |
Application / Use Case: |
PVD/CVD vacuum deposition system chamber control |
Compatible With: |
Perkin-Elmer vacuum deposition/sputtering systems |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Pulled from a working Perkin-Elmer vacuum system environment. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Perkin-Elmer Vacuum Products Chamber 3 Control Panel pulled from a working vacuum system. Inspected and in good condition. Front panel toggles and rear multi-pin connectors (J301–J310) intact. 110VAC inlet and 5A fuse present. Normal lab wear. |
