Description
Perkin-Elmer Vacuum Products Chamber 1 Control Panel Switch Box Rackmount 110V
Control panel for Perkin-Elmer vacuum deposition systems. Routes power and signals to chamber components via multiple rear connectors and front-panel toggle switches.
Specifications & What's Included
- Power: 110 VAC input, 5A fuse
- Form factor: 19-inch rackmount
- 10 rear circular Mil-Spec connectors (J101–J110+)
- IEC AC inlet
- Multiple toggle switches for circuit control
Applications
Used in Perkin-Elmer vacuum deposition and PVD sputtering chambers to manage power distribution and control signal routing. Interfaces with chamber vacuum systems and deposition equipment. Mounts directly into standard instrument racks alongside other process control electronics.
Condition: Used

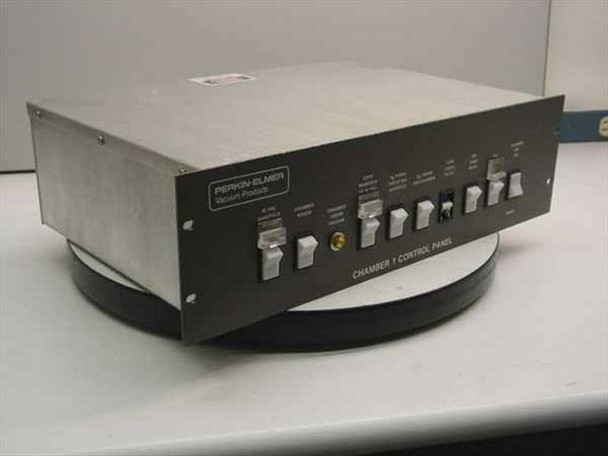

This Perkin-Elmer Vacuum Products Chamber 1 Rackmount Control Panel Switch Box has been inspected and is in good used condition. It was pulled from a working environment where it was in use. One toggle switch on the front panel is broken, as noted in the title and visible in the photos. The aluminum enclosure shows light surface wear consistent with lab use. The rear panel carries ten circular multi-pin connectors (J101 through J110+) and an IEC AC power inlet, all of which appear intact. Please view our photo set and contact us if you have any questions.
This Perkin-Elmer Vacuum Products Chamber 1 Rackmount Control Panel Switch Box has been inspected and is in good used condition. It was pulled from a working environment where it was in use. One toggle switch on the front panel is broken, as noted in the title and visible in the photos. The aluminum enclosure shows light surface wear consistent with lab use. The rear panel carries ten circular multi-pin connectors (J101 through J110+) and an IEC AC power inlet, all of which appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Perkin-Elmer |
Model: |
Chamber 1 Control Panel |
MPN: |
Chamber 1 Control Panel |
Type: |
Vacuum Chamber Control Panel / Switch Box |
SKU: |
20322 |
Form Factor: |
Rackmount |
Power Requirements: |
110 VAC Input Only, 5A Fuse |
Voltage Rating: |
110 VAC |
Fuse Rating: |
5A |
Connector Type: |
Circular Multi-Pin (Mil-Spec Style), IEC AC Inlet |
Number of Connectors: |
10 rear circular connectors (J101–J110+) |
Switch Type: |
Toggle Switches (multiple circuits) |
Application / Use Case: |
Vacuum deposition / PVD sputtering chamber control |
Compatible With: |
Perkin-Elmer Vacuum Products deposition systems |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
One broken switch noted; otherwise pulled from working environment |
Condition Notes: |
Perkin-Elmer Vacuum Products Chamber 1 Control Panel Switch Box. Pulled from working environment; in good used condition. One front-panel toggle switch is broken. Rear circular connectors and IEC inlet appear intact. Sold as-is for that defect. |
