Description
Vacuum Pump Power Distribution Control Unit Rackmount 6300µF 100VDC Capacitors
Unbranded power distribution and control unit designed for laboratory and industrial vacuum pump systems. This rackmount-mounted control unit provides centralized power routing and circuit-controlled distribution to diffusion pumps, roughing pumps, trap heaters, LN2 cooling stages, and related components. Individual circuit breakers on the front panel allow selective control and protection of each pump stage and auxiliary system. Multi-pin twist-lock XLR-style connectors provide secure interconnection with external pumps and control lines.
Specifications & What's Included
- Model: Main Power Distributor
- Form Factor: Rackmount
- Manufacturer: United States
- Power Distribution Sections: Main Power, Roughing Pump, Diffusion Pump, Controls, LN2 Control, Trap Heater
- Front Panel Control: Multiple circuit breakers per section
- Connector Type: Multi-pin twist-lock (XLR-style) on front panel

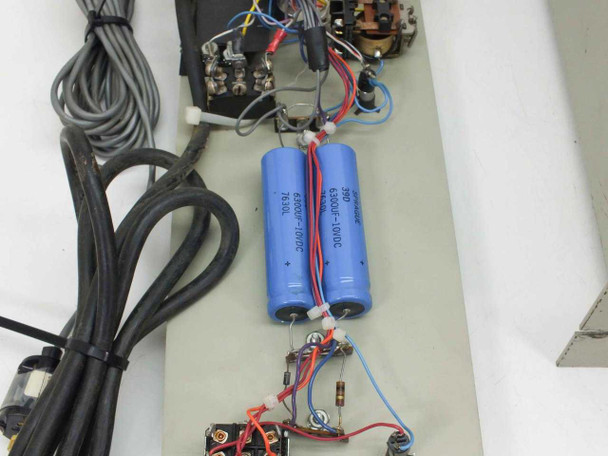

- Internal Capacitors: 6300µF 100VDC cylindrical electrolytic capacitors
- Internal Wiring: Multi-conductor harness with circuit board interconnects
- Included: Wiring harness, cable bundle, internal circuit boards
Applications
Vacuum pump power distribution units are essential components in laboratory and industrial vacuum systems, particularly in thin-film deposition, semiconductor processing, materials research, and analytical instrumentation environments. This type of controller is commonly used to manage diffusion pump operation (including heater control for oil heating), roughing pump sequencing, and auxiliary systems such as liquid nitrogen cold traps. The multi-section design allows independent control and protection of each pump stage, enabling operators to safely manage pump startup sequences and prevent damage from electrical faults or over-current conditions. These units are found in university physics laboratories, semiconductor fabrication facilities, thin-film coating systems, electron microscopy labs, and vacuum deposition chambers used for metallization and material coating applications.
Vacuum Pump Power Distribution Control Unit Rackmount with Diffusion Pump and Cables — Good Used Condition. This equipment has been professionally inspected and shows normal cosmetic wear consistent with its age and laboratory service history. All internal components are present and intact, including circuit boards, capacitor assemblies, complete wiring harness, and cable bundle. The front panel circuit breakers and connector assemblies are mechanically sound. The unit was removed from a working laboratory environment and has not been powered up or functionally tested at our facility. Please review the photo set for detailed condition assessment, and contact us with any questions before purchase.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Main Power Distributor |
SKU: |
47302 |
Condition: |
Used – Inspected |
Seller Notes: |
Includes wiring harness, cable bundle, internal circuit boards |
Form Factor: |
Rackmount |
Type: |
Vacuum Pump Power Distribution Control Unit |
Application: |
Diffusion pump, roughing pump, heater, LN2, trap control |
Controls / Sections: |
Main Power, Roughing Pump, Diffusion Pump, Controls, LN2 Control, Trap Heater |
Included Accessories: |
Wiring harness, cable bundle, internal circuit boards |
Panel Label: |
Main Power Distributor |
Capacitors: |
6300µF 100VDC cylindrical electrolytic |
Connector Type: |
Multi-pin twist-lock XLR-style, multi-conductor harness |
Circuit Breakers: |
Multiple panel-mount breakers |
Country of Manufacture: |
United States |
Condition Notes: |
Vacuum Pump Power Distribution Control Unit Rackmount w/ Diffusion Pump & Cables. Good used condition, normal cosmetic wear. All internal components present & intact. Pulled from working lab environment. Not tested at our facility. |
MPN: |
SKU 47302 |
Country/Region of Manufacture: |
United States |
Control Sections: |
Main Power, Roughing Pump, Diffusion Pump, Controls, LN2 Control, Trap Heater |
