High Voltage
-
Fuji Electric ESAG32-06T 75A 600V Heat Sink Assy w/ EVL31-050 GE 26F6769FC
High Voltage
$100.00Was: $250.00Fuji Electric ESAG32-06T 75A 600V Heat Sink Assy w/ EVL31-050 GE 26F6769FC High-voltage heat sink power assembly used in adjustable frequency AC drive applications. This unit contains integrated...48516- SKU:
- 48516
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 25.00 LBS
- Brand:
- Fuji Electric
- Model:
- ESAG32-06T
- Secondary Model:
- EVL31-050
- MPN:
- ESAG32-06T
- SKU:
- 48516
- Condition:
- Used – Inspected
- Seller Notes:
- Includes 2x ESAG32-06T, 2x EVL31-050, 2x GE 26F6769FC, GE A177N3X30, Dale HL-100-06Z, Dale CW-10, 220VAC fan
- Form Factor:
- Panel / Chassis Assembly
- Compatible With 1:
- Volkmann 70545AA 30/40 KVA Adjustable Frequency AC Drive
- Compatible With 2:
- Volkmann 70490AA 30/40 KVA Adjustable Frequency AC Drive
- Country of Manufacture:
- Japan
- Voltage Rating:
- 600V (ESAG32-06T); 500V (EVL31-050 transistor modules)
- Current Rating:
- 75A (ESAG32-06T); 100A (EVL31-050 transistor modules)
- Capacitor Part Number:
- GE 26F6769FC
- Capacitor Rating:
- 1.0 µF, 1000 VPK, 10 kHz
- Transistor Module:
- Fuji Electric EVL31-050, 100A, 500V (qty 2)
- Resistor 1:
- Dale HL-100-06Z
- Resistor 2:
- Dale CW-10
- Cooling Fan:
- 220 VAC, 16W, 4.5" diameter
- Application:
- Adjustable Frequency AC Drive Power Stage
- Power Requirements:
- 220 VAC (fan); high-voltage DC bus (drive-dependent)
- Condition Notes:
- This Fuji Electric ESAG32-06T high-voltage heat sink power assembly has been visually inspected and shows typical wear consistent with industrial service use. It was removed from a Volkmann 70545AA/70490AA adjustable frequency AC drive.
$100.00Was: $250.00 -
Fuji Electric ESAG32-06T 75A 600V Heat Sink Assembly EVM31-050 GE 26F6769FC0
High Voltage
$175.00Was: $250.00Fuji Electric ESAG32-06T 75A 600V Heat Sink Assembly EVM31-050 GE 26F6769FC0 Heat sink assembly subassembly for power stage applications in adjustable frequency AC drives. Rated for 75A at 600V...48518- SKU:
- 48518
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 25.00 LBS
- Brand:
- Fuji Electric
- Model:
- ESAG32-06T
- Secondary Model:
- EVM31-050
- MPN:
- 26F6769FC0
- SKU:
- 48518
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes 2x ESAG32-06T, 2x EVM31-050, 2x GE 26F6769FC cap, Dale HL-100-06Z, Dale CW-10, 220VAC fan
- Form Factor:
- Chassis Subassembly
- Compatible With 1:
- Volkmann 70545AA 30 KVA Adjustable Frequency AC Drive
- Compatible With 2:
- Volkmann 70490AA 40 KVA Adjustable Frequency AC Drive
- Country of Manufacture:
- Japan
- Voltage Rating:
- 600V
- Current Rating:
- 75A
- Fan Voltage:
- 220 VAC
- Fan Power:
- 16 Watt
- Fan Diameter:
- 4.5 in
- Capacitor Part Number:
- GE 26F6769FC
- Capacitor Rating:
- 1.0 uF, 1000 VPK, 10 kHz
- Included Components:
- 2x ESAG32-06T, 2x EVM31-050, 2x GE cap, Dale HL-100-06Z, Dale CW-10, fan
- Application:
- Adjustable Frequency AC Drive Power Stage, 0-600Hz / 0-667Hz
- Drive System:
- Volkmann 30/40 KVA Adjustable Frequency AC Drive
- Condition Notes:
- This Fuji Electric ESAG32-06T high-voltage heat sink assembly has been visually inspected and shows typical wear consistent with prior industrial service. It was removed from a Volkmann 30/40 KVA adjustable frequency AC drive.
$175.00Was: $250.00 -

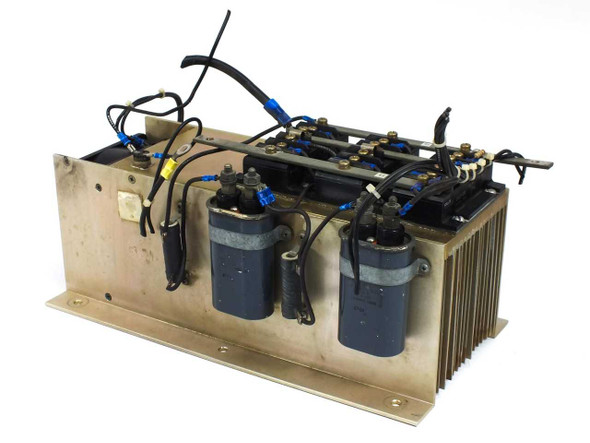

Volkmann M-8010AB High Voltage Heat Sink Assy Fuji EVL31-050 GE Capacitors 500V
High Voltage
$175.00Was: $450.00Volkmann M-8010AB High Voltage Heat Sink Assy Fuji EVL31-050 GE Capacitors 500V Chassis-mounted heat sink assembly from a Volkmann adjustable frequency AC drive. Contains Fuji transistor modules, GE...48454- SKU:
- 48454
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 22.00 LBS
- Brand:
- Volkmann
- Model:
- M-8010AB
- MPN:
- M-8010AB
- SKU:
- 48454
- Condition:
- Used – Inspected
- Seller Notes:
- Includes mounted Fuji transistor modules, GE capacitors, Dale resistors, and 220VAC fan
- Form Factor:
- Chassis-mounted assembly
- Compatible With:
- Volkmann 70545AA 30 KVA Adjustable Frequency AC Drive
- Compatible With 2:
- Volkmann 70490AA 40 KVA Adjustable Frequency AC Drive
- Overall Dimensions:
- 15" x 7.5" x 6.5"
- Heat Sink Fin Dimensions:
- 12" x 4.5" x 4.5"
- Voltage Rating:
- 500 V (transistor modules); 1000 VPK (capacitors)
- Current Rating:
- 100 A per transistor module
- Power Requirements (Fan):
- 220 VAC, 16 W, 4.5" diameter
- Transistor Module:
- Fuji Electric EVL31-050, 100A, 500V (QTY 3)
- Capacitor Part Number:
- GE 26F6769FC, 1.0 uF, 1000 VPK, 10 KHz (QTY 2)
- Resistor Part Number:
- Dale HL-25-06Z, 0.1 Ohm, 25 W (QTY 2)
- Frequency Range:
- 0–667 Hz (parent drive output)
- Parent System:
- Volkmann 70545AA / 70490AA 30/40 KVA Adjustable Frequency Drive
- Country of Manufacture:
- USA
- Condition Notes:
- This Volkmann M-8010AB high voltage heat sink assembly has been visually inspected and shows typical cosmetic wear consistent with prior industrial use. It was removed from a Volkmann 30/40 KVA adjustable frequency AC drive.
$175.00Was: $450.00 -
Vacuum Pump Power Distribution Control Unit Rackmount 6300µF 100VDC Capacitors
High Voltage
$250.00Was: $500.00Vacuum Pump Power Distribution Control Unit Rackmount 6300µF 100VDC Capacitors Unbranded power distribution and control unit designed for laboratory and industrial vacuum pump systems. This...47302- SKU:
- 47302
- Availability:
- In stock and ready to ship within 1-2 business days.
- Weight:
- 45.00 LBS
- Brand:
- Unbranded
- Model:
- Main Power Distributor
- SKU:
- 47302
- Condition:
- Used – Inspected
- Seller Notes:
- Includes wiring harness, cable bundle, internal circuit boards
- Form Factor:
- Rackmount
- Type:
- Vacuum Pump Power Distribution Control Unit
- Application:
- Diffusion pump, roughing pump, heater, LN2, trap control
- Controls / Sections:
- Main Power, Roughing Pump, Diffusion Pump, Controls, LN2 Control, Trap Heater
- Included Accessories:
- Wiring harness, cable bundle, internal circuit boards
- Panel Label:
- Main Power Distributor
- Capacitors:
- 6300µF 100VDC cylindrical electrolytic
- Connector Type:
- Multi-pin twist-lock XLR-style, multi-conductor harness
- Circuit Breakers:
- Multiple panel-mount breakers
- Country of Manufacture:
- United States
- Condition Notes:
- Vacuum Pump Power Distribution Control Unit Rackmount w/ Diffusion Pump & Cables. Good used condition, normal cosmetic wear. All internal components present & intact. Pulled from working lab environment. Not tested at our facility.
- MPN:
- SKU 47302
- Country/Region of Manufacture:
- United States
- Control Sections:
- Main Power, Roughing Pump, Diffusion Pump, Controls, LN2 Control, Trap Heater
$250.00Was: $500.00
