High Voltage

Fuji Electric ESAG32-06T 75A 600V Heat Sink Assy w/ EVL31-050 GE 26F6769FC

(No reviews yet) Write a Review
SKU:
48516
MPN:
26F6769FC
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
25.00 LBS
Shipping:
Calculated at Checkout
  • Fuji Electric ESAG32-06T heat sink assembly – angled top-front view showing power transistor modules, capacitors, and wiring harness

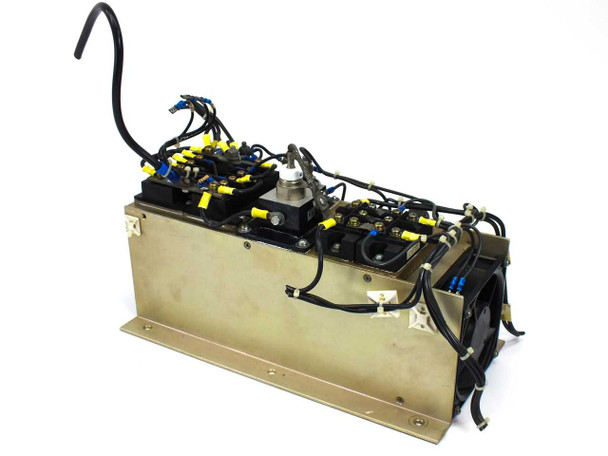

  • Fuji Electric ESAG32-06T heat sink assembly – side/front view showing brass-toned chassis and component layout with cooling fan visible at end

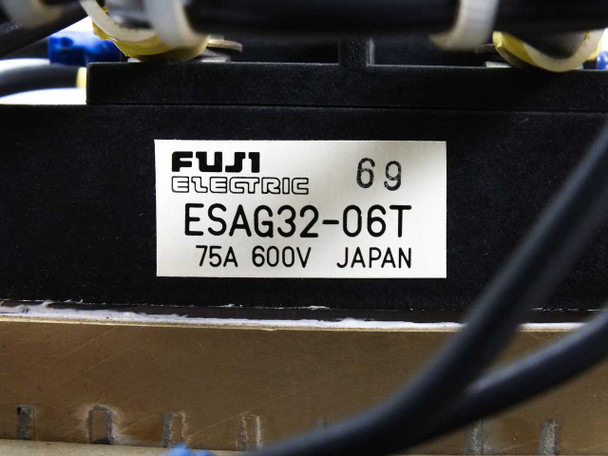

  • Fuji Electric ESAG32-06T label closeup – 75A 600V Japan rating plate on black transistor module body
  • Heat sink assembly – bottom/rear view showing GE 26F6769FC motor run capacitors, Dale resistors, and terminal block wiring

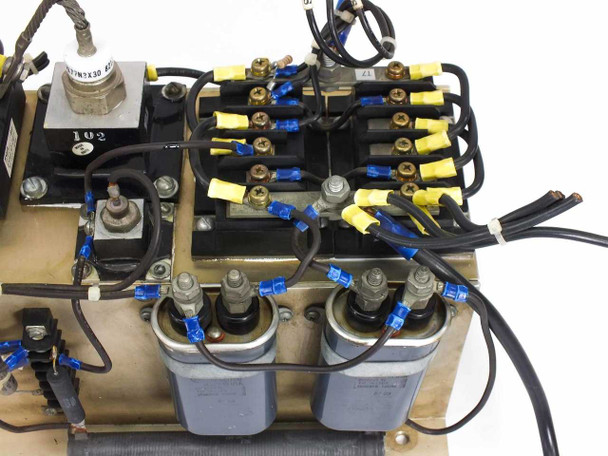

  • Heat sink assembly – top-down view showing yellow-tabbed transistor modules, capacitors, GE A177N3X30 component, and interconnect wiring

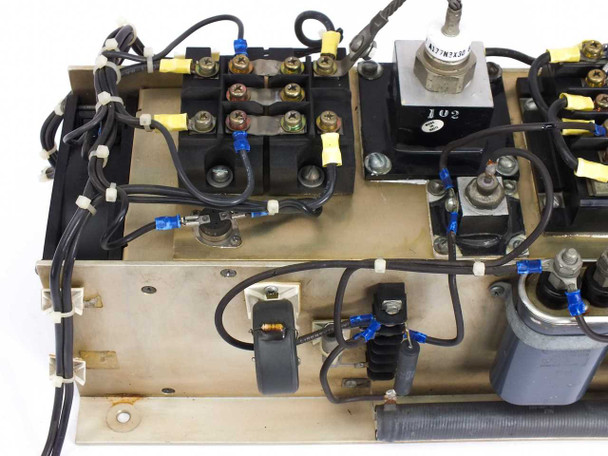

  • Heat sink assembly – close-up of terminal bus bars, current transformer, and high-voltage interconnects with yellow and blue wiring connectors

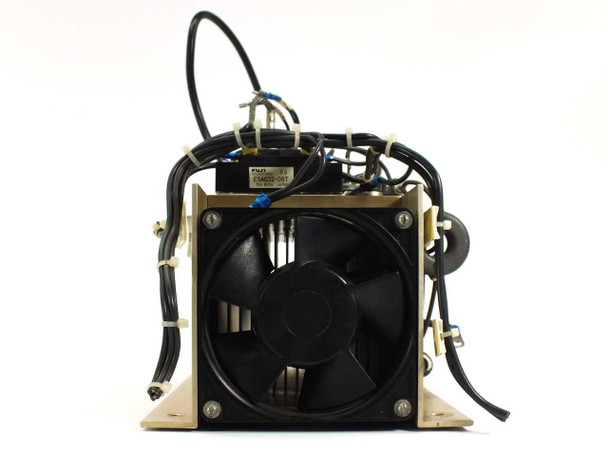

  • Heat sink assembly – end view showing 220VAC cooling fan and Fuji Electric ESAG32-06T module label
$100.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Fuji Electric ESAG32-06T 75A 600V Heat Sink Assy w/ EVL31-050 GE 26F6769FC

High-voltage heat sink power assembly used in adjustable frequency AC drive applications. This unit contains integrated transistor modules, capacitors, and resistors for drive power stage operation.

Specifications & What's Included

  • 2x Fuji Electric ESAG32-06T, 75A, 600V heat sink assemblies
  • 2x EVL31-050 transistor modules, 100A, 500V
  • 2x GE 26F6769FC capacitors, 1.0 µF, 1000 VPK, 10 kHz
  • GE A177N3X30, Dale HL-100-06Z, Dale CW-10 resistors
  • 220VAC cooling fan, 16W, 4.5" diameter
  • Manufactured in Japan

Applications

Used in Volkmann 70545AA and 70490AA adjustable frequency AC drives rated 30/40 KVA.

Condition: Used
This Fuji Electric ESAG32-06T high-voltage heat sink power assembly has been visually inspected and shows typical wear consistent with industrial service use. It was removed from a Volkmann 70545AA/70490AA adjustable frequency AC drive. The unit has not been bench-tested at our facility and is sold without a functionality guarantee. Please view our photos and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Fuji Electric
Model:
ESAG32-06T
Secondary Model:
EVL31-050
MPN:
ESAG32-06T
SKU:
48516
Condition:
Used – Inspected
Seller Notes:
Includes 2x ESAG32-06T, 2x EVL31-050, 2x GE 26F6769FC, GE A177N3X30, Dale HL-100-06Z, Dale CW-10, 220VAC fan
Form Factor:
Panel / Chassis Assembly
Compatible With 1:
Volkmann 70545AA 30/40 KVA Adjustable Frequency AC Drive
Compatible With 2:
Volkmann 70490AA 30/40 KVA Adjustable Frequency AC Drive
Country of Manufacture:
Japan
Voltage Rating:
600V (ESAG32-06T); 500V (EVL31-050 transistor modules)
Current Rating:
75A (ESAG32-06T); 100A (EVL31-050 transistor modules)
Capacitor Part Number:
GE 26F6769FC
Capacitor Rating:
1.0 µF, 1000 VPK, 10 kHz
Transistor Module:
Fuji Electric EVL31-050, 100A, 500V (qty 2)
Resistor 1:
Dale HL-100-06Z
Resistor 2:
Dale CW-10
Cooling Fan:
220 VAC, 16W, 4.5" diameter
Application:
Adjustable Frequency AC Drive Power Stage
Power Requirements:
220 VAC (fan); high-voltage DC bus (drive-dependent)
Condition Notes:
This Fuji Electric ESAG32-06T high-voltage heat sink power assembly has been visually inspected and shows typical wear consistent with industrial service use. It was removed from a Volkmann 70545AA/70490AA adjustable frequency AC drive.
