High Voltage

Fuji Electric ESAG32-06T 75A 600V Heat Sink Assembly EVM31-050 GE 26F6769FC0

(No reviews yet) Write a Review
SKU:
48518
MPN:
26F6769FC0
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Shipping:
Calculated at Checkout
  • Fuji Electric ESAG32-06T heat sink assembly – three-quarter front view showing fan, IGBT modules, capacitors, and wiring harness on brass chassis
  • Fuji Electric ESAG32-06T heat sink assembly – three-quarter rear view showing opposite side of brass chassis with fan and top-mounted components

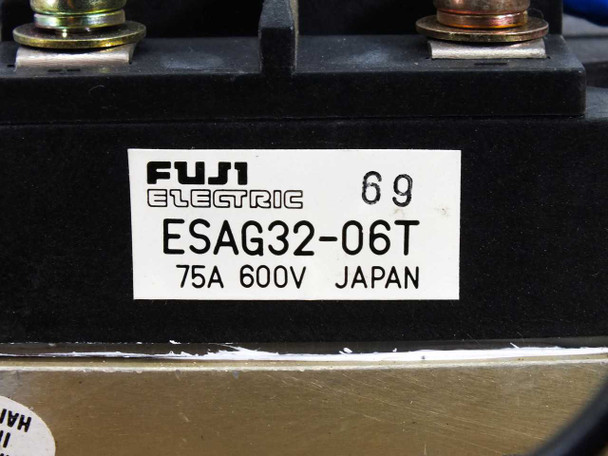

  • Fuji Electric ESAG32-06T label closeup – showing 75A 600V Japan rating on black IGBT module
  • Heat sink assembly front panel view – showing two large cylindrical GE motor run capacitors, resistor bank, and terminal block wiring

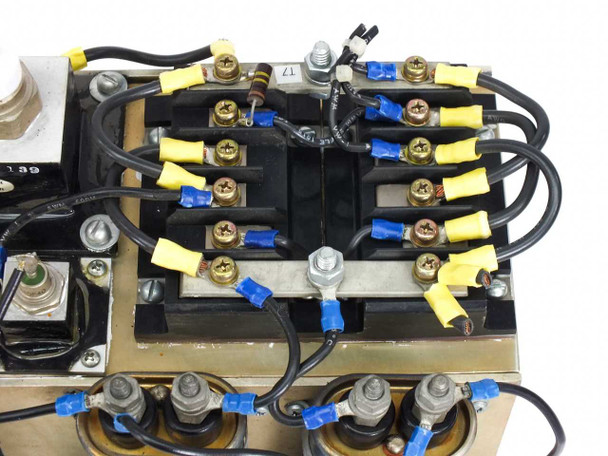

  • Top-down view of heat sink assembly – showing terminal blocks, IGBT gate connections, yellow and blue wiring connectors, and bus bars
  • Top-down detail view – showing IGBT power module terminals, multi-position terminal block, ceramic standoff, and wiring harness routing

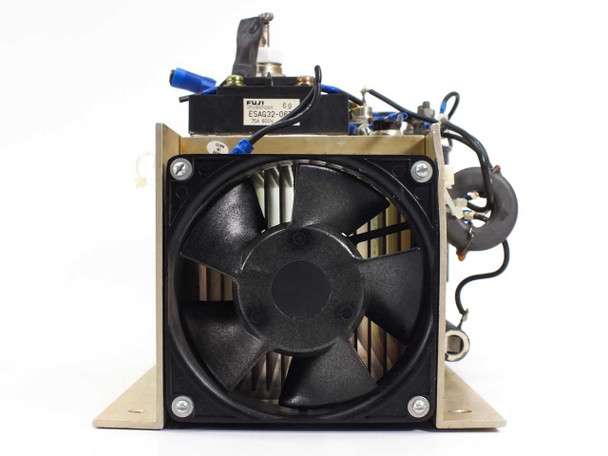

  • End view of heat sink assembly showing large 4.5-inch 220VAC cooling fan mounted to brass chassis with Fuji ESAG32-06T module visible above
$175.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Fuji Electric ESAG32-06T 75A 600V Heat Sink Assembly EVM31-050 GE 26F6769FC0

Heat sink assembly subassembly for power stage applications in adjustable frequency AC drives. Rated for 75A at 600V operation across 0–600Hz / 0–667Hz frequency range.

Specifications & What's Included

  • 2x ESAG32-06T modules with 2x EVM31-050 heat sink assemblies
  • 2x GE 26F6769FC capacitors (1.0 µF, 1000 VPK, 10 kHz)
  • Dale HL-100-06Z and Dale CW-10 components
  • 220VAC cooling fan (16W, 4.5 in diameter)
  • Voltage rating: 600V DC link
  • Current rating: 75A

Applications

Designed for Volkmann 30 KVA and 40 KVA adjustable frequency AC drive systems.

Condition: Used
This Fuji Electric ESAG32-06T high-voltage heat sink assembly has been visually inspected and shows typical wear consistent with prior industrial service. It was removed from a Volkmann 30/40 KVA adjustable frequency AC drive. The unit has not been bench-tested or powered up at our facility. Please view our photos and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Fuji Electric
Model:
ESAG32-06T
Secondary Model:
EVM31-050
MPN:
26F6769FC0
SKU:
48518
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes 2x ESAG32-06T, 2x EVM31-050, 2x GE 26F6769FC cap, Dale HL-100-06Z, Dale CW-10, 220VAC fan
Form Factor:
Chassis Subassembly
Compatible With 1:
Volkmann 70545AA 30 KVA Adjustable Frequency AC Drive
Compatible With 2:
Volkmann 70490AA 40 KVA Adjustable Frequency AC Drive
Country of Manufacture:
Japan
Voltage Rating:
600V
Current Rating:
75A
Fan Voltage:
220 VAC
Fan Power:
16 Watt
Fan Diameter:
4.5 in
Capacitor Part Number:
GE 26F6769FC
Capacitor Rating:
1.0 uF, 1000 VPK, 10 kHz
Included Components:
2x ESAG32-06T, 2x EVM31-050, 2x GE cap, Dale HL-100-06Z, Dale CW-10, fan
Application:
Adjustable Frequency AC Drive Power Stage, 0-600Hz / 0-667Hz
Drive System:
Volkmann 30/40 KVA Adjustable Frequency AC Drive
Condition Notes:
This Fuji Electric ESAG32-06T high-voltage heat sink assembly has been visually inspected and shows typical wear consistent with prior industrial service. It was removed from a Volkmann 30/40 KVA adjustable frequency AC drive.
View AllClose

Related Products

Related Products

Fuji Electric ESAG32-06T heat sink assembly – angled top-front view showing power transistor modules, capacitors, and wiring harness Fuji Electric ESAG32-06T heat sink assembly – side/front view showing brass-toned chassis and component layout with cooling fan visible at end
Add to Cart
Quick view

Fuji Electric ESAG32-06T 75A 600V Heat Sink Assy w/ EVL31-050 GE 26F6769FC

High Voltage

$100.00
Was: $250.00
Fuji Electric ESAG32-06T 75A 600V Heat Sink Assy w/ EVL31-050 GE 26F6769FC High-voltage heat sink power assembly used in adjustable frequency AC drive applications. This unit contains integrated...
48516
SKU:
48516
Availability:
Usually ships within 1–2 business days.
Weight:
25.00 LBS
Brand:
Fuji Electric
Model:
ESAG32-06T
Secondary Model:
EVL31-050
MPN:
ESAG32-06T
SKU:
48516
Condition:
Used – Inspected
Seller Notes:
Includes 2x ESAG32-06T, 2x EVL31-050, 2x GE 26F6769FC, GE A177N3X30, Dale HL-100-06Z, Dale CW-10, 220VAC fan
Form Factor:
Panel / Chassis Assembly
Compatible With 1:
Volkmann 70545AA 30/40 KVA Adjustable Frequency AC Drive
Compatible With 2:
Volkmann 70490AA 30/40 KVA Adjustable Frequency AC Drive
Country of Manufacture:
Japan
Voltage Rating:
600V (ESAG32-06T); 500V (EVL31-050 transistor modules)
Current Rating:
75A (ESAG32-06T); 100A (EVL31-050 transistor modules)
Capacitor Part Number:
GE 26F6769FC
Capacitor Rating:
1.0 µF, 1000 VPK, 10 kHz
Transistor Module:
Fuji Electric EVL31-050, 100A, 500V (qty 2)
Resistor 1:
Dale HL-100-06Z
Resistor 2:
Dale CW-10
Cooling Fan:
220 VAC, 16W, 4.5" diameter
Application:
Adjustable Frequency AC Drive Power Stage
Power Requirements:
220 VAC (fan); high-voltage DC bus (drive-dependent)
Condition Notes:
This Fuji Electric ESAG32-06T high-voltage heat sink power assembly has been visually inspected and shows typical wear consistent with industrial service use. It was removed from a Volkmann 70545AA/70490AA adjustable frequency AC drive.
Volkmann M-8010AB high voltage heat sink assembly — three-quarter rear view showing transistor modules, wiring harness, and 220VAC cooling fan mounted at right end Volkmann M-8010AB heat sink assembly — front three-quarter view showing two GE 26F6769FC motor run capacitors, Fuji EVL31-050 transistor modules, and bus bar wiring on top
Add to Cart
Quick view

Volkmann M-8010AB High Voltage Heat Sink Assy Fuji EVL31-050 GE Capacitors 500V

High Voltage

$175.00
Was: $450.00
Volkmann M-8010AB High Voltage Heat Sink Assy Fuji EVL31-050 GE Capacitors 500V Chassis-mounted heat sink assembly from a Volkmann adjustable frequency AC drive. Contains Fuji transistor modules, GE...
48454
SKU:
48454
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Brand:
Volkmann
Model:
M-8010AB
MPN:
M-8010AB
SKU:
48454
Condition:
Used – Inspected
Seller Notes:
Includes mounted Fuji transistor modules, GE capacitors, Dale resistors, and 220VAC fan
Form Factor:
Chassis-mounted assembly
Compatible With:
Volkmann 70545AA 30 KVA Adjustable Frequency AC Drive
Compatible With 2:
Volkmann 70490AA 40 KVA Adjustable Frequency AC Drive
Overall Dimensions:
15" x 7.5" x 6.5"
Heat Sink Fin Dimensions:
12" x 4.5" x 4.5"
Voltage Rating:
500 V (transistor modules); 1000 VPK (capacitors)
Current Rating:
100 A per transistor module
Power Requirements (Fan):
220 VAC, 16 W, 4.5" diameter
Transistor Module:
Fuji Electric EVL31-050, 100A, 500V (QTY 3)
Capacitor Part Number:
GE 26F6769FC, 1.0 uF, 1000 VPK, 10 KHz (QTY 2)
Resistor Part Number:
Dale HL-25-06Z, 0.1 Ohm, 25 W (QTY 2)
Frequency Range:
0–667 Hz (parent drive output)
Parent System:
Volkmann 70545AA / 70490AA 30/40 KVA Adjustable Frequency Drive
Country of Manufacture:
USA
Condition Notes:
This Volkmann M-8010AB high voltage heat sink assembly has been visually inspected and shows typical cosmetic wear consistent with prior industrial use. It was removed from a Volkmann 30/40 KVA adjustable frequency AC drive.

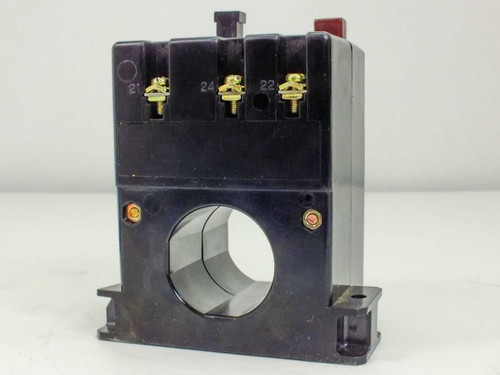

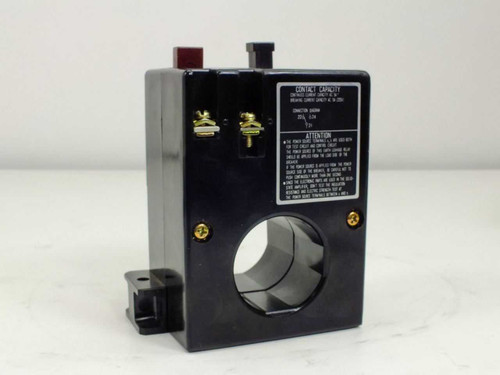

Fuji Electric BRR21N-01S Earth Leakage Relay – right-side view showing contact capacity label, attention notice, through-hole aperture, and DIN rail base Fuji Electric BRR21N-01S Earth Leakage Relay – rear view showing three screw terminals labeled 21, 24, and 22, through-hole aperture, and DIN rail mount
