Compaq

Compaq PDUC30a-1 295364-001 Power Distribution Unit PDU 24A 100-127V Rackmount

(No reviews yet) Write a Review
SKU:
30238
MPN:
295364-001
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Shipping:
Calculated at Checkout
  • Compaq PDUC30a-1 295364-001 rackmount PDU — front three-quarter view showing 6 NEMA outlets and 2 switched rocker switches with power cord

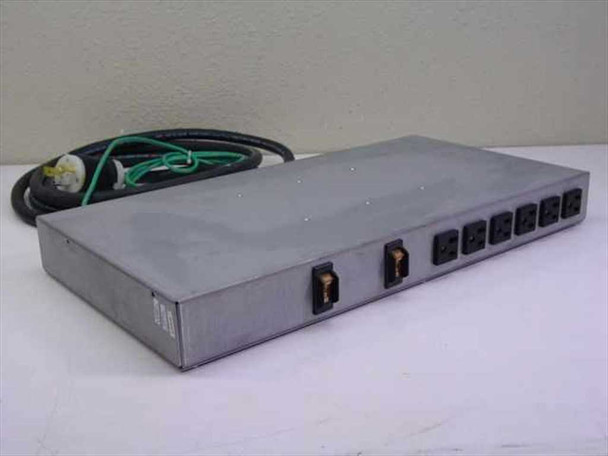

  • Compaq PDUC30a-1 295364-001 rackmount PDU — second front three-quarter view, overall enclosure and cord

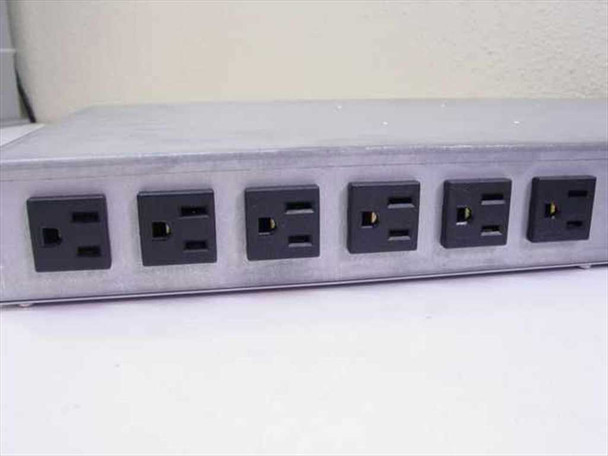

  • Compaq PDUC30a-1 PDU — close-up of 6 NEMA 5-15R AC outlets on front panel

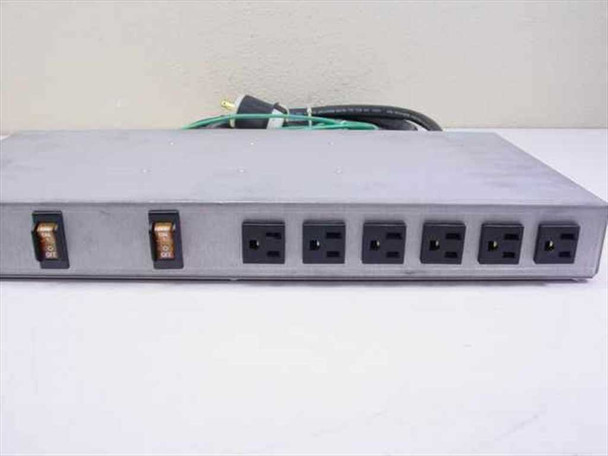

  • Compaq PDUC30a-1 PDU — front panel detail showing 2 rocker switches and 6 NEMA outlets

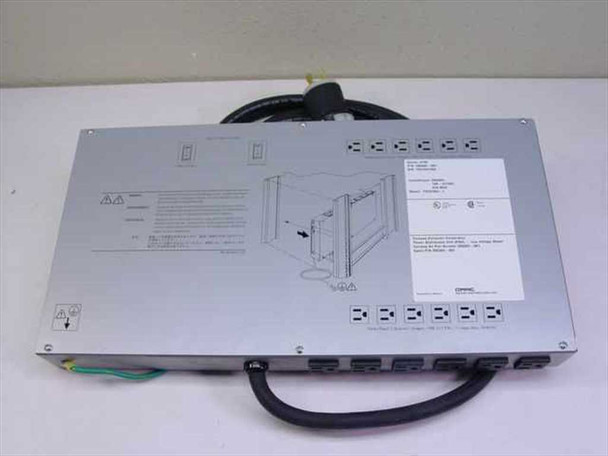

  • Compaq PDUC30a-1 295364-001 PDU — bottom/rear view showing additional outlet bank, installation diagram label, and rating plate

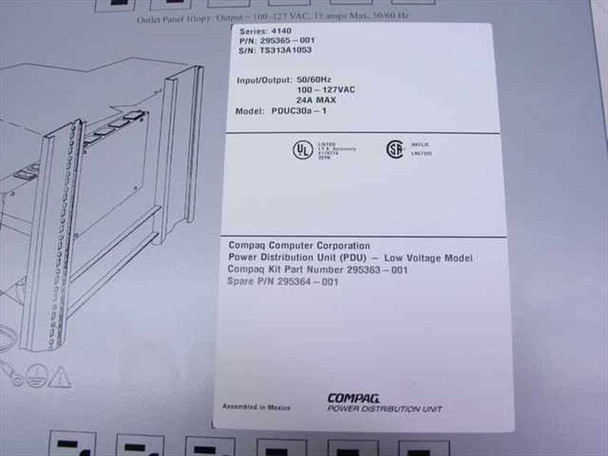

  • Compaq PDUC30a-1 rating plate label showing Series 4140, P/N 295365-001, Model PDUC30a-1, 50/60Hz, 100-127VAC, 24A Max, UL and CSA marks, Assembled in Mexico
$42.00
Was: $80.00
Current Stock: 1

Sold Out

Description

Compaq PDUC30a-1 295364-001 Power Distribution Unit PDU 24A 100-127V Rackmount

Rackmount power distribution unit designed for Compaq Series 4140 server rack systems. Distributes AC power to multiple devices with surge protection and switchable outlet control.

Specifications & What's Included

  • Model: PDUC30a-1 (MPN: 295364-001)
  • Input: 100-127VAC, 50/60Hz
  • Current Rating: 24A maximum
  • Outlets: 6 NEMA 5-15R outlets + 2 switched outlets
  • Form Factor: 1U rackmount
  • Certifications: UL Listed, CSA approved
  • Power cord included

Applications

This PDU was used in Compaq Series 4140 server rack deployments to manage power distribution across multiple rack-mounted components. It provides outlet switching capability for remote power control of connected equipment. Compatible with legacy Compaq server infrastructure from the late 1990s and early 2000s. Suitable for server rooms, data centers, and telecom installations requiring 24A capacity at standard North American voltages.

Condition: Open Box
This Compaq PDUC30a-1 Power Distribution Unit (PDU) is new and unused. It is open-box stock — the unit is in new, uninstalled condition but may not be in its original retail packaging. No signs of use or wear. Power cord is included and visible in photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compaq
Model:
PDUC30a-1
MPN:
295364-001
Secondary Model:
295363-001
Type:
Rackmount Power Distribution Unit (PDU)
SKU:
30238
Series:
Series 4140
Input Voltage:
100-127VAC
Input/Output Frequency:
50/60Hz
Current Rating:
24A Max
Voltage Model:
Low Voltage
Outlet Type:
NEMA 5-15R (6 outlets) + 2 switched outlets
Form Factor:
Rackmount
Compatible With:
Compaq Series 4140 server rack systems
Certifications:
UL Listed, CSA
Country/Region of Manufacture:
Mexico
Condition:
New – Open Box
Seller Notes:
New open-box unit. Unused. Power cord included.
Condition Notes:
Compaq PDUC30a-1 295364-001 PDU is new and unused — open-box stock, no signs of use or wear. May be out of original packaging. Power cord included. Please contact us with any questions.
View AllClose

Related Products

Related Products

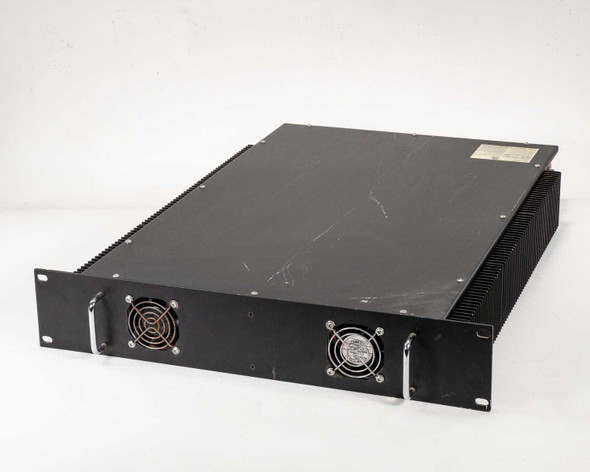

Cambrian Innovation 1012031-3-1-1 Power Distribution Unit – angled top rear view showing dual cooling fans and heat sink fins Cambrian Innovation 1012031-3-1-1 PDU – straight rear view showing dual cooling fans and product label
