HP 3488A Switch Control Unit GPIB IEEE-488 Rackmount For Parts No Power
The HP (Hewlett-Packard) 3488A is a rack-mounted switch and control unit designed for use in automated test and measurement systems. It serves as a mainframe chassis that accepts plug-in switch, relay, and control cards, allowing a GPIB-connected test system controller to route signals and automate switching sequences across multiple instruments or devices under test. The unit communicates via the HP-IB (IEEE-488 / GPIB) bus, making it compatible with HP test system architectures and other IEEE-488 compliant controllers.
Specifications & What's Included
- Manufacturer: Hewlett-Packard (HP)
- Model: 3488A Switch/Control Unit
- Interface: HP-IB / GPIB / IEEE-488
- Form Factor: Rackmount, 2U
- Card Slots: 5 slots for plug-in switch/control cards
- Add-On Cards: None installed — all slots empty

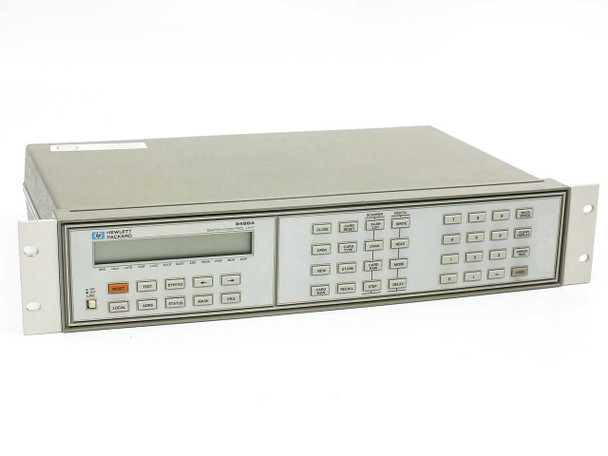

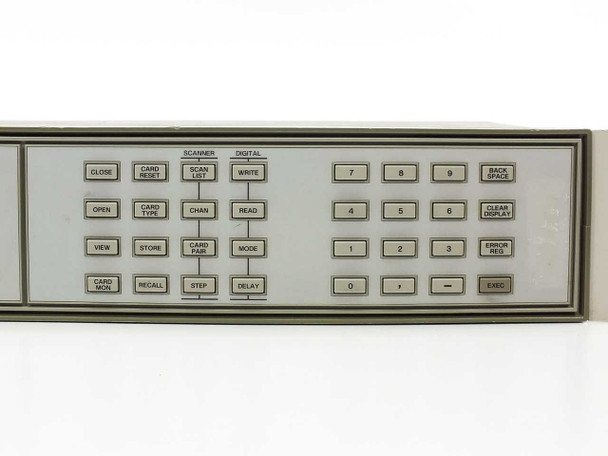

- Front Panel: LCD status display, RESET, TEST, SYNTAX, LOCAL, ADRS, STATUS, MASK, SRQ buttons; Scanner and Digital keypad section

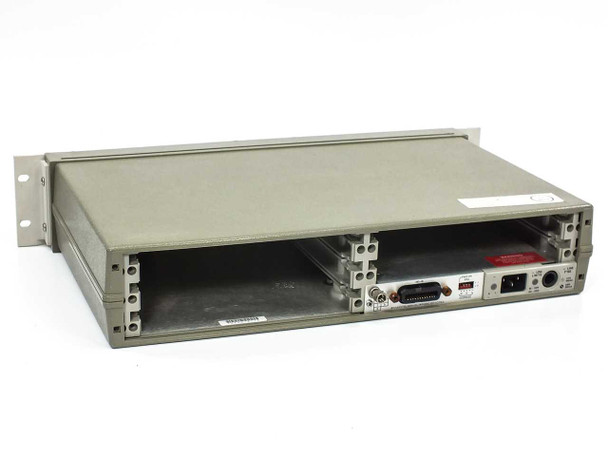

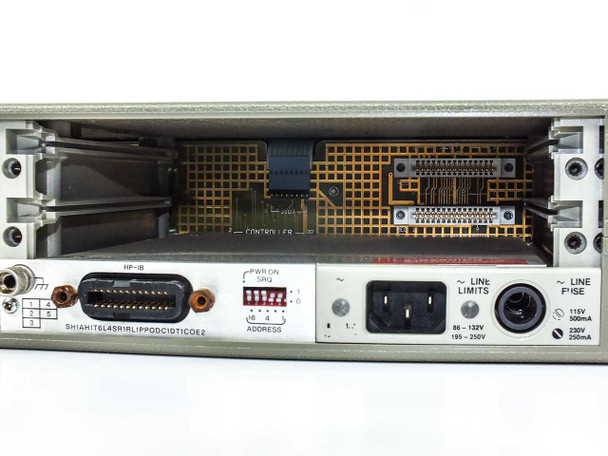

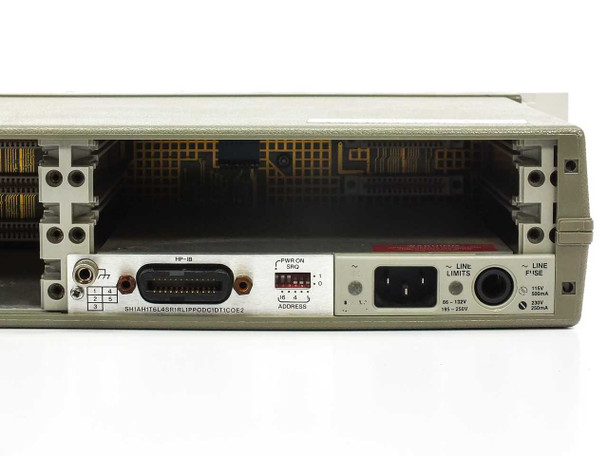

- Rear Panel: HP-IB / GPIB connector (24-pin), DIP address switches (PWR ON/SRQ), IEC AC power inlet
- Power Input: 90–132V / 195–250V AC, 50/60Hz (selectable)
- Line Limits: 115V — 500mA; 230V — 250mA
- Fuse Cap: Missing

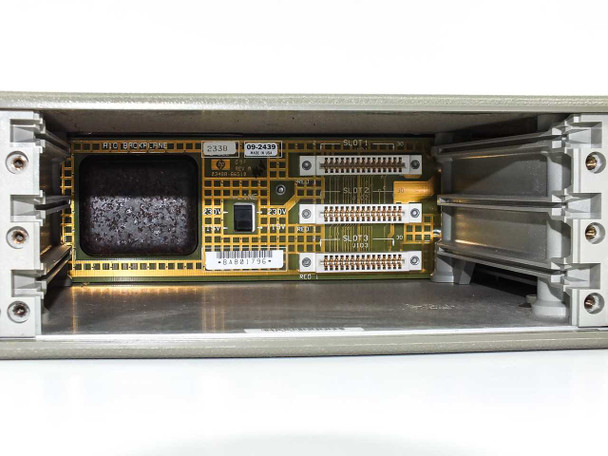

- Backplane PCB visible in interior; board label 09-2439 observed
- No accessories, cables, or add-on cards included
