Description
Certus Technologies 3600A Spindle Controller GPIB IEEE-488 110VAC 3.5A
This is a benchtop spindle controller from Certus Technologies (manufactured by Redlake Corporation) designed for precision speed and direction control of spindle motors. The unit features GPIB (IEEE-488) interface for remote operation and monitoring, as well as local and remote control modes. It allows CW/CCW rotation selection and integrates into industrial automation, precision machining, and laboratory test equipment environments.
Specifications & What's Included
- Model: 3600A (MPN 90-0300)
- Manufacturer: Certus Technologies / Redlake Corporation
- Power: 110VAC, 50/60Hz, 3.5A maximum
- Fuses: 1.5A SLO and 2.0A SLO
- Interface: GPIB (IEEE-488) with configurable address via rear-panel DIP switches
- Control Modes: Local, Remote, GPIB
- Rotation Direction: Clockwise / Counterclockwise selectable
- Form Factor: Benchtop

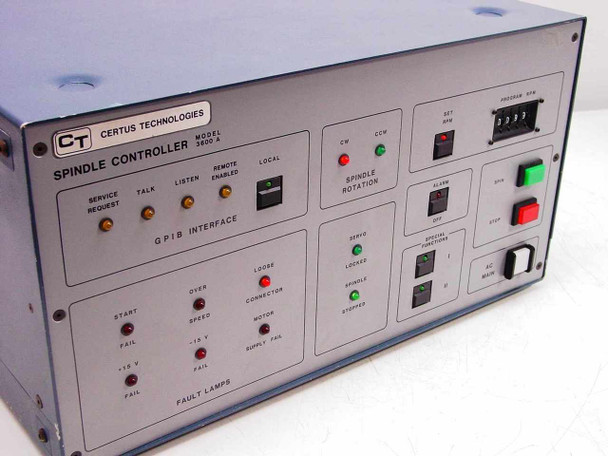

- Front Panel Indicators: Service Request, Talk, Listen, Remote Enabled, CW, CCW, Spindle Rotation, Alarm, Servo, Loaded, Spindle, Stopped, Fault

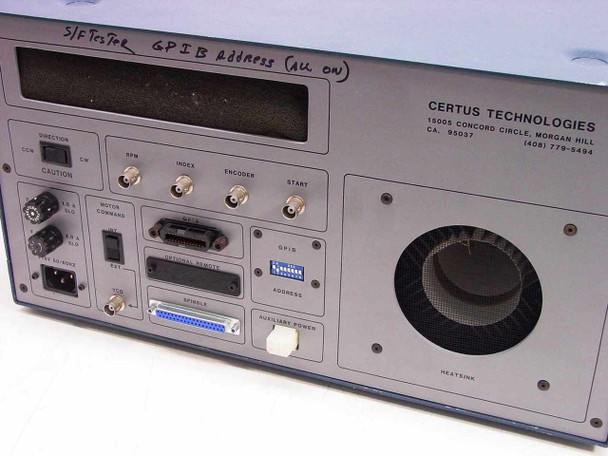

- Rear Connectors: GPIB (IEEE-488), Spindle D-sub, Optional Remote, Auxiliary Power, BNC inputs (RPM, Index, Encoder, Start), IEC AC power inlet
- Manufactured in United States
Applications
Spindle controllers of this type are used in precision machining systems, CNC machine shops, grinding systems, and laboratory automation environments to regulate motor speed and direction via computer interface. GPIB connectivity allowed these units to integrate into larger lab automation and manufacturing control systems, particularly during the 1980s through early 2000s era when GPIB was the standard for instrument control. The local, remote, and computer control modes made them suitable for both standalone operation and fully integrated multi-instrument test benches and production environments.
This Certus Technologies 3600A Spindle Controller (Redlake MPN 90-0300) is being sold AS-IS for parts or repair. It has not been tested and is not guaranteed to function. The unit shows general wear consistent with previous use. Please review our photo set carefully before purchasing and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Certus Technologies |
Model: |
3600A |
MPN: |
90-0300 |
Secondary Model: |
90-0300 |
Type: |
Spindle Controller |
SKU: |
22595 |
Interface Type: |
GPIB (IEEE-488) |
Power Requirements: |
110VAC, 50/60Hz, 3.5A max |
Current Rating: |
3.5A |
Voltage Rating: |
110VAC |
Fuse Rating 1: |
1.5A SLO |
Fuse Rating 2: |
2.0A SLO |
GPIB Address: |
Configurable via rear-panel DIP switches |
Front Panel Indicators: |
Service Request, Talk, Listen, Remote Enabled, CW, CCW, Spindle Rotation, Alarm, Servo, Loaded, Spindle, Stopped, Fault |
Rear Panel Connectors: |
GPIB, Spindle D-sub, Auxiliary Power, BNC (RPM/Index/Encoder/Start), IEC AC inlet |
Control Modes: |
Local / Remote / GPIB |
Rotation Direction: |
CW / CCW selectable |
Form Factor: |
Benchtop |

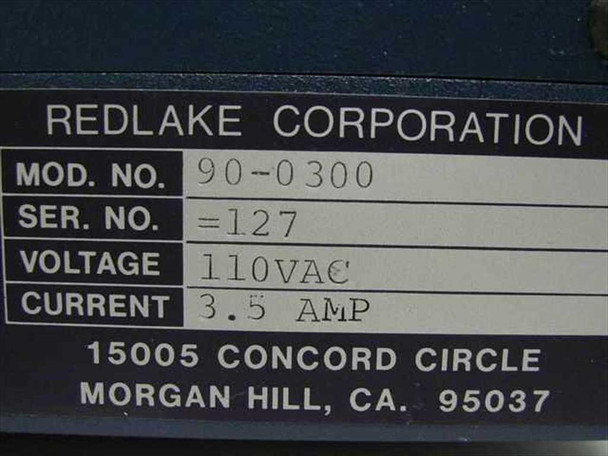

Manufacturer Address: |
15005 Concord Circle, Morgan Hill, CA 95037 |
OEM Manufacturer: |
Redlake Corporation |
Seller Notes: |
Sold as-is for parts or repair. No functionality guarantee. |
Country/Region of Manufacture: |
United States |
Review Status: |
Auto-Approved (needs review) 2026-07-04 |
Condition Notes: |
Certus 3600A spindle controller sold as-is for parts or repair. Not tested, no functionality guaranteed. Shows general wear from previous use. |
Fuse Rating: |
1.5A SLO / 2.0A SLO |
Manufacturer: |
Certus Technologies / Redlake Corporation |
