FSI 290157-200 PCB Board Wash Station Rev C Semiconductor Wafer Cleaning Card

(No reviews yet) Write a Review
SKU:
45790
MPN:
290157-200
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

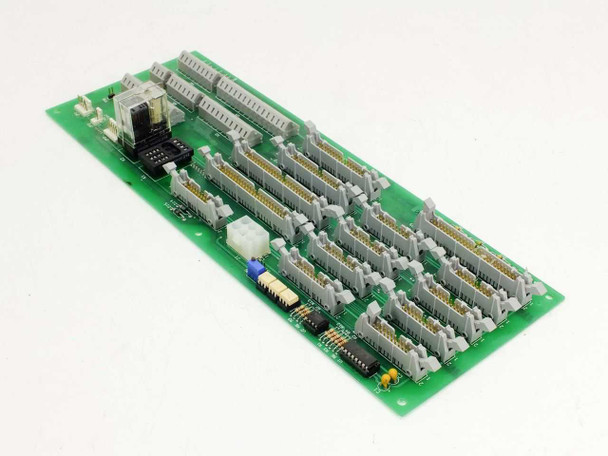

  • FSI 290157-200 PCB board Rev C front view showing multiple IDC ribbon cable connectors and relay — top-down angle
  • FSI 290157-200 wash station PCB board Rev C angled front view showing full board layout with ribbon connectors and terminal blocks

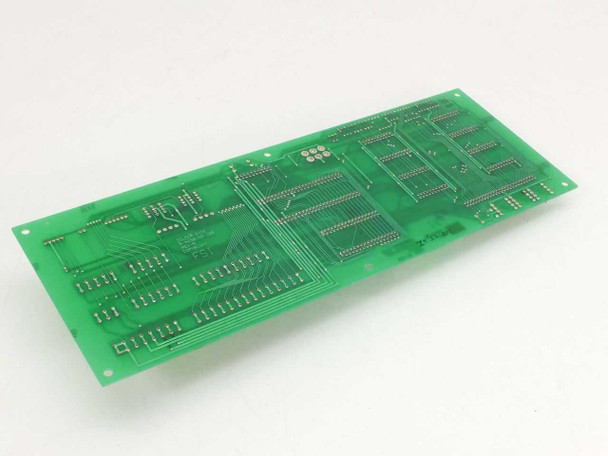

  • FSI 290157-200 PCB board Rev C bare solder side (bottom) showing trace layout and mounting holes
  • FSI 290157-200 board label closeup showing FSI brand mark, part number AN290158, and Rev designation
  • FSI 290157-200 PCB board top surface closeup showing labeled connectors: TO SOL I/FACE, TO HANDLER I/FACE, TO ELEC CONSOLE, and ribbon cable headers
  • FSI 290157-200 PCB board closeup showing labeled terminal blocks: ALARM, IND LIGHT, RS232, TBX, HIX, SIX, DIX, DOX and relay module near P14
$250.00
Was: $500.00
Current Stock: 1

Sold Out

Description

FSI 290157-200 PCB Board Wash Station Rev C Semiconductor Wafer Cleaning Card

Controller PCB board for FSI semiconductor wafer wash and cleaning stations. This card manages system operations, handler interface, and electronics console communication in wafer processing environments.

Specifications & What's Included

  • Brand: FSI
  • Model: 290157-200 (Secondary: AN290158)
  • Revision: Rev C
  • Type: PCB / Controller Board
  • Connectors: Ribbon cable (IDC), terminal block, Molex power
  • Interface: RS-232, handler interface, electronics console
  • Application: Semiconductor wafer wash / cleaning station
  • Manufactured: United States

Applications

This controller board operates within FSI semiconductor wafer cleaning systems, which are used in semiconductor manufacturing for wafer surface preparation and contamination removal. The board manages communication between the wafer handler, cleaning station electronics, and system console. Compatible with FSI wafer wash station platforms. PCB only; no chassis included.

Condition: Used
This FSI 290157-200 Rev C PCB board was pulled from a working semiconductor wafer wash station where it was actively in use. It has been inspected and appears to be in good condition. The board is clean with no visible damage, cracked traces, or burned components. All ribbon cable connectors, terminal blocks, and the relay module appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
FSI
Model:
290157-200
MPN:
290157-200
Secondary Model:
AN290158
Type:
PCB / Controller Board
Revision:
Rev C
Application:
Semiconductor Wafer Wash / Cleaning Station
Connector Types:
Ribbon cable (IDC), terminal block, Molex power
Interface:
RS-232, handler interface, electronics console
Form Factor:
Card / PCB Module
SKU:
45790
Condition:
Used – Pulled from Working Environment
Seller Notes:
PCB only; pulled from FSI wafer wash station, no chassis included
Compatible With:
FSI Semiconductor Wafer Wash / Cleaning Station
Country/Region of Manufacture:
United States
Condition Notes:
FSI 290157-200 Rev C PCB board pulled from a working wafer wash station where it was in active use. Inspected and in good condition. No visible damage to board, connectors, or relay. Please contact us with any questions.
View AllClose

Related Products

Related Products

FSI 290168-400 Mercury Interface PCB front component side showing relay ICs and green screw terminal blocks FSI 290168-400 Mercury Interface PCB top view showing labeled In Out screw terminals and relay modules across board
Add to Cart
Quick view

FSI 290168-400 Mercury Interface PCB 290168-200 Rev A Semiconductor Etch Board

FSI

$185.00
Was: $400.00
FSI 290168-400 Mercury Interface PCB 290168-200 Rev A Semiconductor Etch Board Interface PCB for the FSI Mercury semiconductor plasma etch system. This circuit board manages signal routing and...
45775
SKU:
45775
Availability:
Usually ships within 1–2 business days.
Weight:
0.90 LBS
Brand:
FSI
Model:
290168-400
MPN:
290168-400
Secondary Model:
290168-200
Hardware Revision:
Rev A
SKU:
45775
Type:
Interface PCB / Circuit Board
Application:
Semiconductor Plasma Etch / FSI Mercury System
Form Factor:
PCB / Card
Connector Type:
Green screw terminal blocks (In/Out per channel)
Number of Channels:
Multiple isolated channels with In/Out terminals
Compatible With:
FSI Mercury Semiconductor Processing System
Condition:
Used – Inspected
Seller Notes:
Board only; no additional accessories included.
Country/Region of Manufacture:
United States
Review Status:
Auto-Approved (needs review) 2026-07-04
Condition Notes:
FSI 290168-400 Mercury Interface PCB (290168-200 Rev A) has been inspected and is in good used condition. Normal handling wear; relay ICs seated, screw terminals intact, no visible damage. Please contact us with any questions.
FSI AN290158-400 Computer Board – front top view showing multiple IDC ribbon connectors and terminal blocks FSI AN290158-400 Rev A PCB – angled front view showing relay, ribbon connectors, and terminal block layout
Add to Cart
Quick view

FSI AN290158-400 Computer Board Rev A Semiconductor Tool Interface PCB

FSI

$350.00
Was: $700.00
FSI AN290158-400 Computer Board Rev A Semiconductor Tool Interface PCBComputer interface board designed for FSI semiconductor processing equipment. This PCB manages communication between the tool's...
45770
SKU:
45770
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
FSI
Model:
AN290158-400
MPN:
AN290158-400
Secondary Model:
AN290158
Type:
Computer Interface Board / PCB
SKU:
45770
Revision:
Rev A
Form Factor:
PCB / Board
Interface Type:
RS232, Solenoid, Handler, Console, Temp Box
Connector Types:
IDC ribbon connectors, terminal blocks, relay
Application:
Semiconductor Processing Tool Interface
Condition:
Used – Inspected
Seller Notes:
Board only. Inspected and in good condition.
Compatible With:
FSI Semiconductor Processing Equipment
Condition Notes:
FSI AN290158-400 Computer Interface Board. Inspected and in good condition. Normal handling wear. PCB, connectors, and ribbon headers appear intact with no visible damage or corrosion.

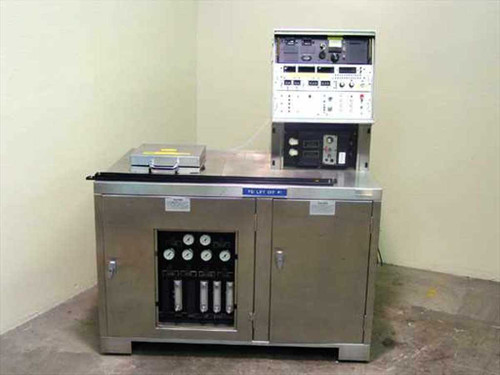

FSI 2134N wafer acid cleaning processor — full system front view showing stainless steel cabinet, pressure gauge panel, and mounted control rack FSI 2134N processor rear view showing stainless enclosures, chemical tubing, pump assembly, and power cable
