FSI AN290158-400 Computer Board Rev A Semiconductor Tool Interface PCB

(No reviews yet) Write a Review
SKU:
45770
MPN:
AN290158-400
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

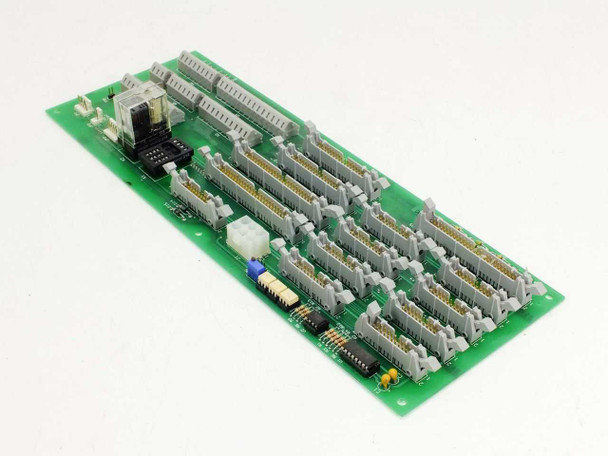

  • FSI AN290158-400 Computer Board – front top view showing multiple IDC ribbon connectors and terminal blocks
  • FSI AN290158-400 Rev A PCB – angled front view showing relay, ribbon connectors, and terminal block layout
  • FSI AN290158-400 Computer Board – bare PCB bottom side showing copper trace routing and mounting holes
  • FSI AN290158-400 label close-up showing part number AN290158, revision 400-A, and FSI manufacturer marking
  • FSI AN290158-400 board detail – labeled connectors including TO SOL I/FACE, TO HANDLER I/FACE, and TO ELEC CONSOLE
  • FSI AN290158-400 board detail – corner section showing RS232, ALARM, IND LIGHT, relay, and terminal block connections
$350.00
Was: $700.00
Current Stock: 3

Sold Out

Description

FSI AN290158-400 Computer Board Rev A Semiconductor Tool Interface PCB

Computer interface board designed for FSI semiconductor processing equipment. This PCB manages communication between the tool's control systems and peripheral components including solenoids, handlers, and temperature monitoring devices.

Specifications & What's Included

  • Model: AN290158-400 (Rev A)
  • Interface Types: RS232, Solenoid, Handler, Console, Temp Box
  • Connectors: IDC ribbon connectors, terminal blocks, relay
  • Form Factor: PCB board only
  • Application: Semiconductor processing tool interface

Applications

This board type was used in FSI semiconductor processing equipment to bridge communications between the main control system and peripheral hardware. It handles multiple interface protocols simultaneously, routing data and control signals to solenoid drivers, equipment handlers, console displays, and temperature monitoring boxes. The board is compatible with FSI processing tools from that generation and supports the multi-protocol requirements typical of automated semiconductor manufacturing systems.

Condition: Used
This FSI AN290158-400 Computer Interface Board has been inspected and appears to be in good condition. The PCB shows normal handling wear consistent with prior installation in a semiconductor processing system. The board surface, connectors, and ribbon connector headers appear intact with no obvious signs of damage, burned components, or corrosion visible in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
FSI
Model:
AN290158-400
MPN:
AN290158-400
Secondary Model:
AN290158
Type:
Computer Interface Board / PCB
SKU:
45770
Revision:
Rev A
Form Factor:
PCB / Board
Interface Type:
RS232, Solenoid, Handler, Console, Temp Box
Connector Types:
IDC ribbon connectors, terminal blocks, relay
Application:
Semiconductor Processing Tool Interface
Condition:
Used – Inspected
Seller Notes:
Board only. Inspected and in good condition.
Compatible With:
FSI Semiconductor Processing Equipment
Condition Notes:
FSI AN290158-400 Computer Interface Board. Inspected and in good condition. Normal handling wear. PCB, connectors, and ribbon headers appear intact with no visible damage or corrosion.
View AllClose

Related Products

Related Products

FSI 290168-400 Mercury Interface PCB front component side showing relay ICs and green screw terminal blocks FSI 290168-400 Mercury Interface PCB top view showing labeled In Out screw terminals and relay modules across board
Add to Cart
Quick view

FSI 290168-400 Mercury Interface PCB 290168-200 Rev A Semiconductor Etch Board

FSI

$185.00
Was: $400.00
FSI 290168-400 Mercury Interface PCB 290168-200 Rev A Semiconductor Etch Board Interface PCB for the FSI Mercury semiconductor plasma etch system. This circuit board manages signal routing and...
45775
SKU:
45775
Availability:
Usually ships within 1–2 business days.
Weight:
0.90 LBS
Brand:
FSI
Model:
290168-400
MPN:
290168-400
Secondary Model:
290168-200
Hardware Revision:
Rev A
SKU:
45775
Type:
Interface PCB / Circuit Board
Application:
Semiconductor Plasma Etch / FSI Mercury System
Form Factor:
PCB / Card
Connector Type:
Green screw terminal blocks (In/Out per channel)
Number of Channels:
Multiple isolated channels with In/Out terminals
Compatible With:
FSI Mercury Semiconductor Processing System
Condition:
Used – Inspected
Seller Notes:
Board only; no additional accessories included.
Country/Region of Manufacture:
United States
Review Status:
Auto-Approved (needs review) 2026-07-04
Condition Notes:
FSI 290168-400 Mercury Interface PCB (290168-200 Rev A) has been inspected and is in good used condition. Normal handling wear; relay ICs seated, screw terminals intact, no visible damage. Please contact us with any questions.

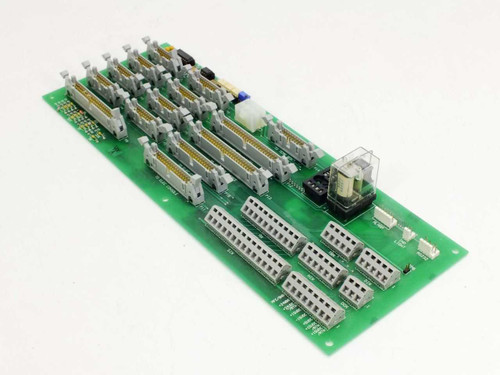

FSI 290157-200 PCB board Rev C front view showing multiple IDC ribbon cable connectors and relay — top-down angle FSI 290157-200 wash station PCB board Rev C angled front view showing full board layout with ribbon connectors and terminal blocks
