FSI 290109-400 Stepper Motor Interface Board 290109-200 Z4/15/010 Rev A

(No reviews yet) Write a Review
SKU:
45776
MPN:
290109-400
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
0.50 LBS
Shipping:
Calculated at Checkout
  • FSI 290109-400 Stepper Motor Interface Board – top view showing green PCB with dual white header connectors and large black edge connector with gold contacts

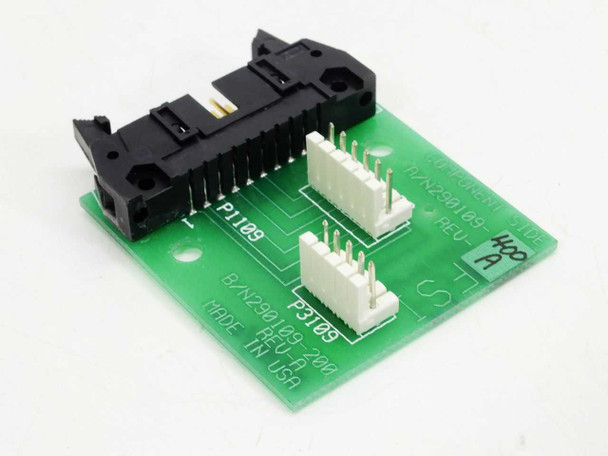

  • FSI 290109-400 290109-200 Rev A Stepper Motor Interface Board – angled top view showing PCB silkscreen markings P1109 and P3109 connector labels and Made in USA marking

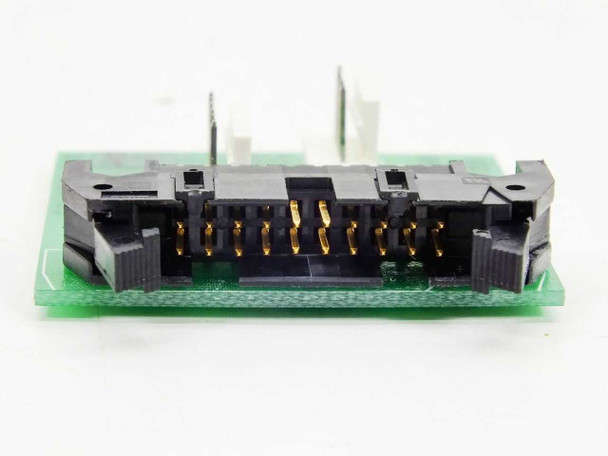

  • FSI 290109-400 Stepper Motor Interface Board – close-up front edge view showing multi-pin black IDC connector with gold-plated contacts
$97.00
Was: $250.00
Current Stock: 1

Sold Out

Description

FSI 290109-400 Stepper Motor Interface Board 290109-200 Z4/15/010 Rev A

Stepper motor control interface board designed for semiconductor and wafer processing equipment. This PCB module manages stepper motor operation within FSI systems.

Specifications & What's Included

  • Brand: FSI
  • Model: 290109-400 / 290109-200
  • Designator: Z4/15/010 Rev A
  • Type: Stepper Motor Interface Board
  • Form Factor: PCB / Card Module
  • Manufactured: United States

Applications

This interface board was used in FSI semiconductor processing equipment for controlling stepper motor functions in wafer handling and positioning systems. Stepper motor interface boards like this are integral components in automated wafer processing tools, managing precision motor movements required for equipment operation. Typically installed as a plug-in module within FSI processor control systems.

Condition: Used
This FSI 290109-400 Stepper Motor Interface Board has been inspected and is in good condition. It came out of FSI repair technician spares stock. The PCB is clean with no visible damage, cracked traces, or broken connectors. The gold-contact edge connector and both white header connectors appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
FSI
Model:
290109-400
Secondary Model:
290109-200
MPN:
290109-400
Part Number 2:
290109-200
Reference Designator:
Z4/15/010
Type:
Stepper Motor Interface Board
Form Factor:
PCB / Card Module
Revision:
Rev A
Country/Region of Manufacture:
United States
Application:
Semiconductor / Wafer Processing Equipment
Condition:
Used – Pulled from Working Environment
SKU:
45776
Seller Notes:
Pulled from FSI repair tech spares; inspected, in good condition
Review Status:
Auto-Approved (needs review) 2026-07-04
Condition Notes:
FSI 290109-400 Stepper Motor Interface Board. Inspected, in good condition. Pulled from FSI repair tech spares. PCB clean, connectors intact. Please view photos and contact us with any questions.
