Dr. Schenk 4 250 415 Customer I/O Converter Box DB25 DB37 24VDC Germany
The Dr. Schenk GmbH 4 250 415 is a Customer I/O Converter Box designed for use with Dr. Schenk industriemesstechnik inspection and measurement systems. It serves as a signal interface adapter, converting between D-sub connector formats to route I/O signals between a host measurement system and external customer equipment or automation controllers. The unit operates on 24VDC and requires an external AC adapter, which is not included.
Specifications & What's Included
- Manufacturer: Dr. Schenk GmbH, industriemesstechnik
- Type No.: 4 250 415
- Type: Customer I/O Converter Box
- Voltage: 24 VDC

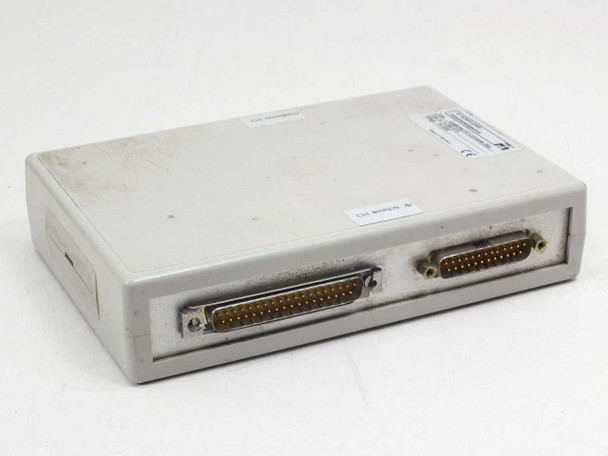

- Front panel connectors: DB37 male (37-pin D-sub) and DB25 male (25-pin D-sub)

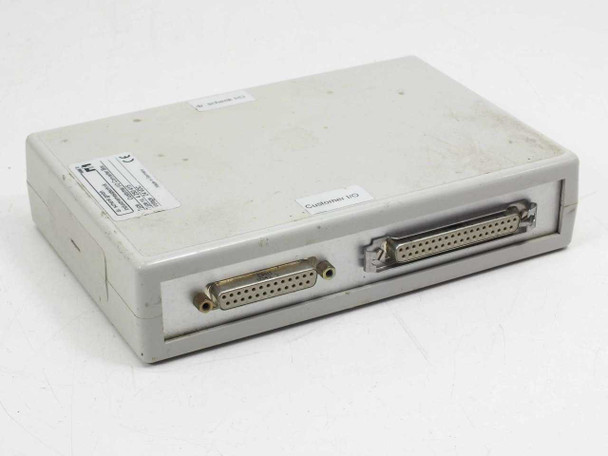

- Rear panel connectors: DB37 female (37-pin D-sub) and DB15 female (15-pin D-sub)
- Form factor: compact desktop/benchtop enclosure
- Country of manufacture: Germany
- CE marked
- 24VDC AC adapter required — not included
Applications
Dr. Schenk GmbH is a German manufacturer specializing in industrial surface inspection and measurement technology, producing systems used in the semiconductor, flat glass, metal, paper, and film industries. I/O converter boxes such as this 4 250 415 are used to interface a Dr. Schenk inspection system's I/O signals with external process control, PLC, or automation equipment, allowing customer-side systems to receive trigger signals, status outputs, or control inputs from the inspection platform. The D-sub connector format — DB25 and DB37 — was a standard choice in industrial measurement and automation systems of this era for carrying multi-channel digital I/O over a single, secure connector. These interface adapters are typically rack-mounted or bench-mounted adjacent to the main inspection controller and wired inline between the Dr. Schenk system and external automation or data-collection hardware. Buyers are typically engineers or technicians maintaining or integrating Dr. Schenk surface inspection lines in semiconductor fabs, flat panel display manufacturing, or precision web/film inspection environments.

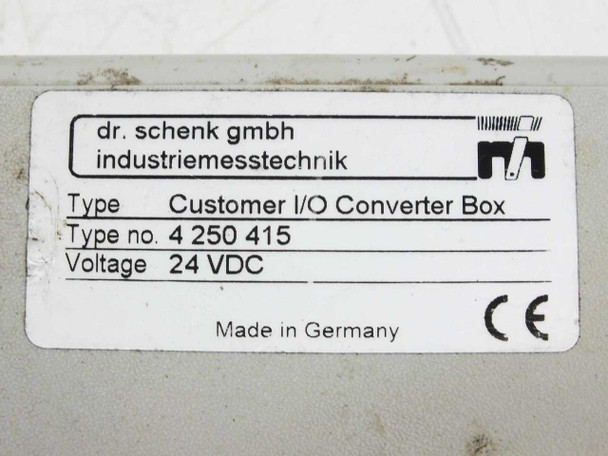

This Dr. Schenk GmbH 4 250 415 Customer I/O Converter Box has been inspected and appears to be in good condition. The enclosure shows light surface soiling and minor scuffs consistent with prior lab or industrial use, but no cracks or structural damage. All D-sub connector pins appear intact on both the DB25 and DB37 ports on each face of the unit. The rating label on the bottom is fully legible. Note that a 24VDC AC adapter is required for operation and is not included with this unit. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dr. Schenk GmbH |
Model: |
4 250 415 |
MPN: |
4 250 415 |
Type: |
Customer I/O Converter Box |
SKU: |
47339 |
Voltage: |
24 VDC |
Power Requirements: |
24 VDC (AC adapter required, not included) |
Connector 1: |
DB25 (25-pin D-sub) |
Connector 2: |
DB37 (37-pin D-sub) |
Interface Type: |
DB25 and DB37 D-sub |
Form Factor: |
Desktop / Benchtop |
Country/Region of Manufacture: |
Germany |
Seller Notes: |
24VDC AC adapter required but not included. DB25 and DB37 connectors. |
Condition Notes: |
Dr. Schenk 4 250 415 Customer I/O Converter Box. Inspected and in good condition. Light surface soiling and minor scuffs; all D-sub connector pins intact. 24VDC AC adapter required, not included. Contact us with any questions. |
