Semiconductor Tools
Semiconductor tools are specialized equipment used in the manufacturing and testing of semiconductor devices. These tools are vital for the production of integrated circuits and other electronic components. Common examples include wafer fabrication tools, semiconductor metrology tools, and packaging equipment. Semiconductor tools are designed to ensure precision, accuracy, and efficiency in the semiconductor manufacturing process. They help in etching, deposition, patterning, and testing of semiconductor materials. These tools play a crucial role in the semiconductor industry, enabling the development of cutting-edge technology. Investing in high-quality semiconductor tools is essential for achieving optimal results in semiconductor manufacturing.
-

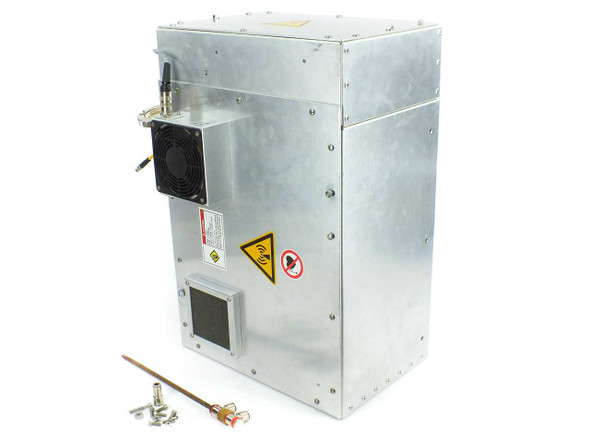

Aurion B-MBT-48 Matchbox Prodik T300 30kW RF Sputtering Impedance Matching
Aurion
$2,000.00Was: $4,000.00Aurion B-MBT-48 Matchbox Prodik T300 30kW RF Sputtering Impedance Matching Network RF impedance matching network designed for 30 kW sputtering and PVD deposition systems. Matches source impedance to load impedance for efficient power transfer in plasma...52215- SKU:
- 52215
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 75.00 LBS
- Brand:
- Aurion Anlagentechnik
- Model:
- B-MBT-48
- MPN:
- B-MBT-48
- Type:
- RF Impedance Matching Network (Matchbox)
- SKU:
- 52215
- Product Family:
- Matchbox Prodik T300
- Order Number:
- 301253
- Customer Order Ref:
- 61109881
- Power Rating:
- 30 kW
- Application:
- RF Sputtering / PVD Deposition
- Input Voltage (X3):
- Up to 277V
- Control Voltage (X4):
- 24V
- Interface / Control:
- RS-232 (X5), P-Bus (X7)
- Cooling:
- Water-cooled (SW3.14 Flow & Return fittings)
- RF Output Connector:
- Large coaxial flange (cathode side)
- Tune Capacitor:
- Comet CVHI-2500AW/15-ADUB, 200-2500pF, 15/9kV
- Load Capacitor:
- Comet CVBA-500BC/7-BEA-L, 5-500pF, 7/4.2kV
- Country/Region of Manufacture:
- Germany
- Form Factor:
- Standalone Enclosure / Benchtop
- Dimensions:
- 23" x 20" x 13"
- Seller Notes:
- Includes mounting hardware, copper probe rod, and water cooling push-fit fittings.
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- This Aurion B-MBT-48 Matchbox Prodik T300 30kW RF impedance matching network has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional operation.
$2,000.00Was: $4,000.00 -

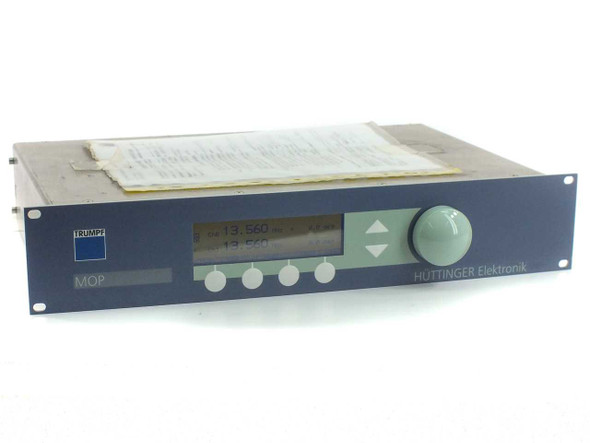

Trumpf Huttinger 0372600 MOP 2-Ch Master Oscillator 13.56 MHz RF Plasma Etch
Trumpf Huttinger
$1,350.00Was: $2,700.00Trumpf Huttinger 0372600 MOP 2-Ch Master Oscillator 13.56 MHz RF Plasma EtchTwo-channel master oscillator generating 13.56 MHz RF signals for plasma processing. Used in RF plasma etch, PVD sputtering, and RF deposition systems to drive plasma generation...52209- SKU:
- 52209
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 15.00 LBS
- Brand:
- Trumpf Huttinger
- Model:
- MOP
- MPN:
- 0372600
- SKU:
- 52209
- Type:
- 2-Channel Master Oscillator
- Frequency:
- 13.56 MHz
- Number of Channels:
- 2
- Power Requirements:
- 85–264V N/PE, 50/60Hz
- Fuse Rating:
- 3.15A (F1/F2)
- Form Factor:
- Rackmount, 2U
- Dimensions:
- 19" x 15" x 3.5"
- Application:
- RF Plasma Etch, PVD Sputtering, RF Deposition
- Display:
- Backlit LCD — shows Ch0 and Ch1 frequency and phase
- Rear Connectors:
- IEC AC inlet, BNC, DB9 (x3), DB25
- Status Code:
- Status 00
- Condition:
- Used – Powers On, Further Testing Limited
- Seller Notes:
- Unit powers on; further testing not available at our facility
- Country/Region of Manufacture:
- Germany
- Condition Notes:
- Trumpf Huttinger 0372600 MOP 2-Ch 13.56MHz. Powers on, LCD shows both channels at 13.560MHz. Light wear from lab use. All controls intact. No damage.
$1,350.00Was: $2,700.00 -
Finetech Fineplacer PCB Rework Station Leica MZ6 Microscope SHOT-102 Stage
Finetech
$8,000.00Was: $16,000.00Finetech Fineplacer PCB Rework Station Leica MZ6 Microscope SHOT-102 Stage Benchtop PCB rework and die placement station combining Finetech Fineplacer control system with Leica MZ6 stereomicroscope and motorized stage. Used for microelectronics...52060- SKU:
- 52060
- Availability:
- Usually ships within 3-5 business days due to size and packaging requirements.
- Weight:
- 145.00 LBS
- Brand:
- Finetech
- Model:
- Fineplacer
- Secondary Model:
- Leica MZ6
- MPN:
- Fineplacer Code 145/27
- SKU:
- 52060
- Type:
- Manual PCB Rework & Die Placement Station
- Condition:
- As-Is / For Parts or Not Working
- Form Factor:
- Benchtop
- Power Requirements:
- 230V, 100W (Fineplacer); TC-2000E up/down converter included
- Microscope Brand:
- Leica
- Microscope Model:
- MZ6
- Microscope Part Number:
- Leica 10445302
- Eyepieces:
- Leica 10445111 (2x, visible on units)
- Camera:
- Watec WAT-202B CCD Color Camera
- Stage Controller:
- Sigma Koki SHOT-102 Two-Axis Stepping Motor Drive
- Illumination:
- Finetech Euromex EK-1 Fiber Optic Light Source (x2)
- Up/Down Converter:
- TC-2000E, 110/220V, Max 2000W
- Placer Control Unit:
- Finetech Placer Control (front panel: illumination, vacuum, pipette mode)
- Joystick Controller:
- Saitek Action Pad
- Included Software:
- Finetech Software CD
- Included Computer:
- PC, Monitor, Keyboard (Windows XP, Fineplacer software installed)
- Main Unit Dimensions:
- 20" x 26" x 20"
- Application / Use Case:
- PCB rework, die attach, flip-chip placement, microelectronics
- Country/Region of Manufacture:
- Germany
- Seller Notes:
- Sold as-is from closed electrical engineering lab; may not be complete. Review photo set for included items.
- Condition Notes:
- Finetech Fineplacer PCB Rework Station w/ Leica MZ6 Microscope, Sigma Koki SHOT-102 stage & accessories. Used, from closed lab. See photos for complete contents & cosmetic condition.
$8,000.00Was: $16,000.00 -

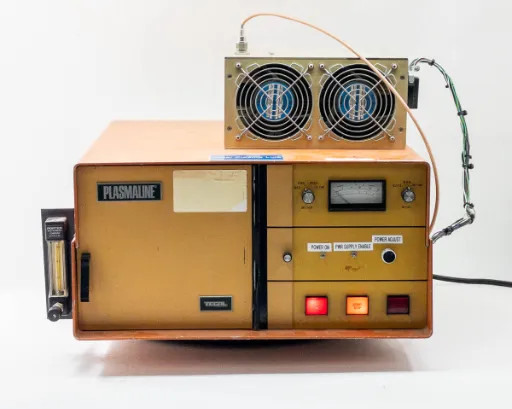

Tegal PlasmaLine 200 Plasma Barrel Etcher w/ Comdel CPS-200AX RF Power Supply
Tegal
$3,500.00Was: $7,000.00Tegal PlasmaLine 200 Plasma Barrel Etcher w/ Comdel CPS-200AX RF Power SupplyBenchtop plasma barrel etcher with cylindrical quartz chamber designed for semiconductor processing applications. Unit includes Comdel CPS-200AX RF power supply; original Tegal...52023- SKU:
- 52023
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 100.00 LBS
- Brand:
- Tegal
- Model:
- PlasmaLine 200
- MPN:
- 200
- Type:
- Plasma Barrel Etcher / Plasma Asher
- SKU:
- 52023
- Included RF Power Supply Brand:
- Comdel
- Included RF Power Supply Model:
- CPS-200AX
- RF Power Supply Serial Number (Comdel):
- AX-86
- RF Power Supply Date of Manufacture:
- 1/3/94
- Main Unit Serial Number:
- 0238
- Main Unit Date of Manufacture:
- 5/79
- Country/Region of Manufacture:
- United States
- Power Requirements (Comdel RF Supply):
- 115V AC
- RF Section Configuration:
- OEM RF section disconnected; rewired for Comdel CPS-200AX RF supply
- Control Power Source:
- Original Tegal supply (control power only)
- Application:
- Plasma barrel etching, photoresist ashing, semiconductor processing
- Form Factor:
- Benchtop / Tabletop
- Chamber Type:
- Barrel/Tunnel — cylindrical quartz chamber with wafer rack
- Front Panel Controls:
- Power On, PWR Supply Enable, Power Adjust, Start/Stop, Tuning, Flow Adj
- Gas Flow Control:
- Flow meter / flow adjustment knob visible on front
- Meter:
- Analog FWD/REF/PRES/FLOW meter on front panel
- Rear Panel:
- DANGER HIGH VOLTAGE section, SENS MIN/MAX, PROC MONITOR, fuse holders, J2 connector
- FCC Certification:
- FCC Regulation 18 (ISM band)
- Seller Notes:
- Includes Comdel CPS-200AX RF power supply (interconnected). Tegal RF section disconnected; Tegal supply provides control power only.
- Condition Notes:
- This Tegal PlasmaLine 200 Plasma Barrel Etcher has been tested with the included Comdel CPS-200AX RF power supply and is working as intended. Note that the original RF section of the Tegal power supply has been disconnected and the system has been
$3,500.00Was: $7,000.00 -

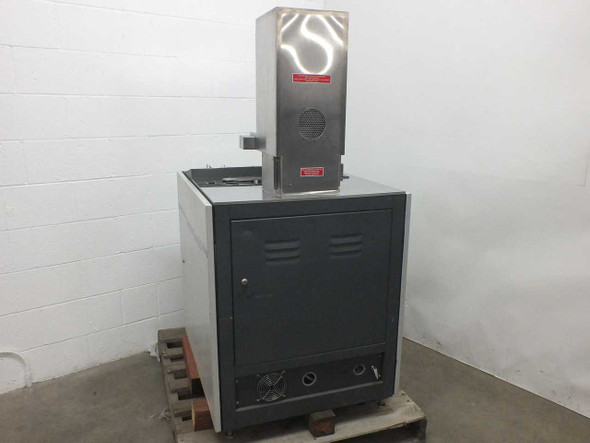

Electron Vision ElectronCure 30X E-Beam Photoresist Curing System 30kV
Electron Vision
$6,000.00Was: $12,000.00Electron Vision ElectronCure 30X E-Beam Photoresist Curing System 30kV An electron beam photoresist curing system designed for semiconductor lithography and microelectronics fabrication. Operates at 30kV accelerating voltage with maximum beam current of...52065- SKU:
- 52065
- Availability:
- Usually ships within 5-7 business days — please contact us regarding freight arrangements for this large item.
- Weight:
- 572.00 LBS
- Brand:
- Electron Vision
- Model:
- ElectronCure 30X
- MPN:
- ElectronCure 30X
- Type:
- E-Beam Photoresist Curing System
- SKU:
- 52065
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS; broken key blocks access to internals; not tested
- Beam Current:
- 33.3 mA (max, per model plate)
- Power Requirements:
- 115V 20A or 230V 15A, Single/Both
- Application:
- Photoresist curing, semiconductor lithography
- Form Factor:
- Freestanding Cabinet / Benchtop Column
- Overall Dimensions:
- 37" W x 31" D x 60" H
- Includes:
- Integrated keyboard, floppy drive, control electronics rack
- Control System:
- Integrated PC controller with keyboard and floppy drive
- Internal Rack Components:
- High voltage power supply, ElectronCure 30x control electronics
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Electron Vision ElectronCure 30X E-Beam Curing System sold AS-IS for parts/repair. Broken key blocks internal cabinet access; not tested. No functionality guarantee. 30R config (30kV). Please contact us with questions.
$6,000.00Was: $12,000.00 -

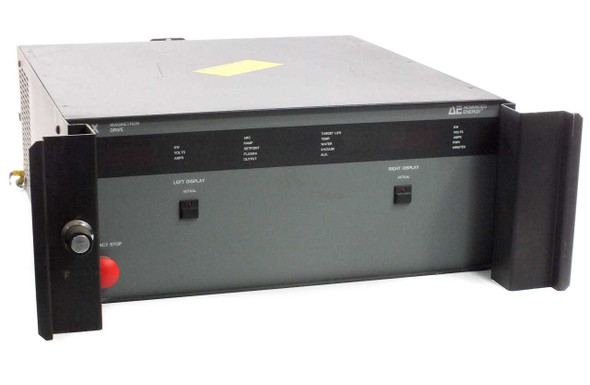

Advanced Energy MDX 2011-011-C 5KW DC Magnetron Drive Power Supply 208V 3Ph
Advanced Energy
$950.00Was: $2,200.00Advanced Energy MDX 2011-011-C 5KW DC Magnetron Drive Power Supply 208V 3Ph 50/60Hz The Advanced Energy MDX 2011-011-C is a 5-kilowatt DC power supply engineered for magnetron drive applications in physical vapor deposition (PVD) and plasma-assisted...52058- SKU:
- 52058
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 65.00 LBS
- User Manual:
- Available — Advanced Energy MDX Magnetron Drive User Manual
- Brand:
- Advanced Energy
- Model:
- MDX 2011-011-C
- MPN:
- 2011-011-C
- SKU:
- 52058
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only. User manual available separately.
- Series:
- MDX Series
- Form Factor:
- Rackmount – 24in W × 20in D × 7in H
- Power Rating:
- 5 kW DC output
- Voltage Rating:
- 208V AC
- Phase:
- Three Phase (3Ø)
- Frequency:
- 50/60 Hz
- Output Type:
- DC
- Application:
- Magnetron drive, PVD, CVD, thin-film deposition, sputtering
- Interface Connectors:
- USER (DB-25), DISPLAY (DB-25)
- Breakers:
- Three-position circuit breaker array — rear panel
- Front Panel Controls:
- Dual digital displays, Emergency Stop button, status indicators
- Cooling:
- Dual large-diameter axial exhaust fans
- Dimensions:
- 24 inches W × 20 inches D × 7 inches H
- Country of Manufacture:
- USA – Fort Collins, Colorado
- Compatible With:
- Advanced Energy MDX Series magnetron sputtering systems, PVD/CVD thin film deposition platforms
- Condition Notes:
- This Advanced Energy MDX 2011-011-C 5KW DC magnetron drive power supply has not been powered up or tested at our facility, but was pulled from a working industrial environment where it was previously in service.
- Front Panel Features:
- Dual digital displays (Left and Right, switchable to Actual readout), KW/Volts/Amps monitoring, Arc/Ramp/Setpoint/Plasma/Output/Target Life/Temp/Water/Vacuum/Aux status indicators, Emergency Stop button
- Circuit Protection:
- Three-position circuit breaker array, rear panel
- Front Panel Displays:
- Dual digital displays, KW/Volts/Amps readout
- Status Indicators:
- Arc, Ramp, Setpoint, Plasma, Output, Target Life, Temp, Water, Vacuum, Auxiliary
- Compatible With 2:
- PVD/CVD thin-film deposition platforms
- Rear Connectors:
- USER (DB-25), DISPLAY (DB-25)
- Power Output Rating:
- 5 kW DC
- Input Voltage:
- 208V AC, three-phase, 50/60 Hz
- Compatible With 1:
- Advanced Energy MDX Series magnetron sputtering systems
- Display Features:
- KW/Volts/Amps readout, switchable to Actual values
$950.00Was: $2,200.00 -

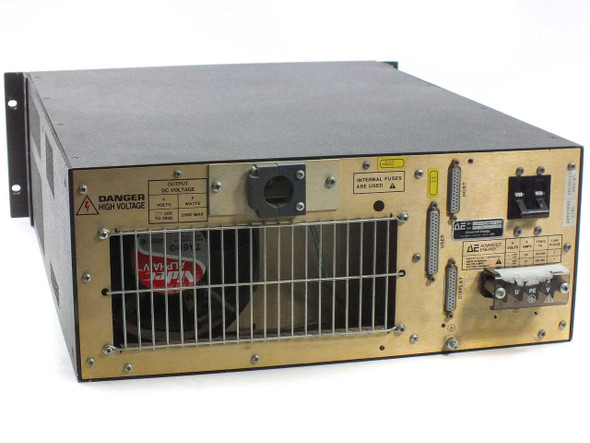

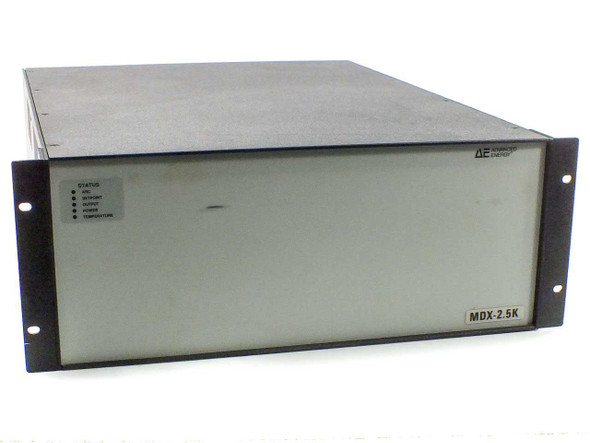

Advanced Energy MDX-2.5K 2224-006-B DC Magnetron Sputtering Power Supply 2500W
Advanced Energy
$2,000.00Was: $4,000.00Advanced Energy MDX-2.5K 2224-006-B DC Magnetron Sputtering Power Supply 2500WThe Advanced Energy MDX-2.5K is a DC magnetron drive power supply designed for use in physical vapor deposition (PVD) sputtering systems. Model number 2224-006-B, it delivers a...52049- SKU:
- 52049
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 80.00 LBS
- Brand:
- Advanced Energy
- Model:
- MDX-2.5K
- MPN:
- 2224-006-B
- Type:
- DC Magnetron Sputtering Power Supply
- SKU:
- 52049
- Output Voltage:
- 500–1800V DC
- Max Power Output:
- 2500W
- Power Rating:
- 2500 Watts
- Application / Use Case:
- DC Magnetron Sputtering, PVD Thin Film Deposition
- Form Factor:
- Rackmount
- Seller Notes:
- Unit only — no additional accessories confirmed included.
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Compatible With:
- PVD sputtering systems, magnetron cathode targets
- Condition Notes:
- This Advanced Energy MDX-2.5K (2224-006-B) DC sputtering power supply could not be fully tested at our facility. Sold as-inspected in used condition. Cosmetically intact with light wear. Please view photos and contact us with questions.
$2,000.00Was: $4,000.00 -
Rudolph Research AutoEL 135A5C Automatic Ellipsometer 115V 50/60Hz 130W For
Rudolph
$750.00Was: $1,500.00Rudolph Research AutoEL 135A5C Automatic Ellipsometer 115V 50/60Hz 130W For Parts Benchtop ellipsometer used for measuring thin film thickness and optical properties. Features automatic operation, integrated thermal printer, and GPIB interface for...52032- SKU:
- 52032
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 151.00 LBS
- Brand:
- Rudolph Research
- Model:
- 135A5C
- MPN:
- 135A5C
- Type:
- Automatic Ellipsometer
- SKU:
- 52032
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS for parts or repair. Does not power on.
- Country/Region of Manufacture:
- United States
- Power Requirements:
- 115V, 50/60Hz, 130W
- Form Factor:
- Benchtop
- Voltage:
- 115V
- Power Consumption:
- 130W
- Frequency:
- 50/60Hz
- Application:
- Thin Film Thickness & Optical Property Measurement
- Measurement Type:
- Ellipsometry — thin film thickness, refractive index
- Interface:
- IEEE-488 / GPIB (rear panel connector visible)
- Integrated Printer:
- Yes — thermal/paper strip printer, top-mounted
- Manufacture Date:
- August 12, 1980
- Regulatory Compliance:
- 21 CFR 1040.10
- Dimensions:
- 29" x 22" x 18"
- Condition Notes:
- Rudolph Research AutoEL 135A5C Automatic Ellipsometer — does not power on; broken rear-panel fuses. Sold AS-IS for parts or repair only. No functionality guaranteed. Age-appropriate cosmetic wear throughout. 115V/130W.
$750.00Was: $1,500.00
