Description
Advanced Energy MDX-2.5K 2224-006-B DC Magnetron Sputtering Power Supply 2500W
The Advanced Energy MDX-2.5K is a DC magnetron drive power supply designed for use in physical vapor deposition (PVD) sputtering systems. Model number 2224-006-B, it delivers a continuously adjustable DC output voltage of 500 to 1800V with a maximum power output of 2500 watts, making it suited to driving magnetron cathode targets in thin film deposition processes. The unit is housed in a rack-mount chassis and features front-panel status indicators alongside rear-panel high-voltage output, control interface connectors, and an AC input circuit breaker.
Specifications & What's Included
- Manufacturer: Advanced Energy Industries, Fort Collins, Colorado, USA
- Model: MDX-2.5K
- Part / Model Number: 2224-006-B
- Output Voltage Range: 500–1800V DC
- Maximum Power Output: 2500 Watts
- Output Type: DC (direct current), magnetron drive
- Form Factor: Rackmount
- Approximate Dimensions: 25" D x 19" W x 7" H
- Front Panel: Status LED indicators (visible labels include ARG, VTOL, OUTPUT, FAULT, TEMPERATURE), model designation badge

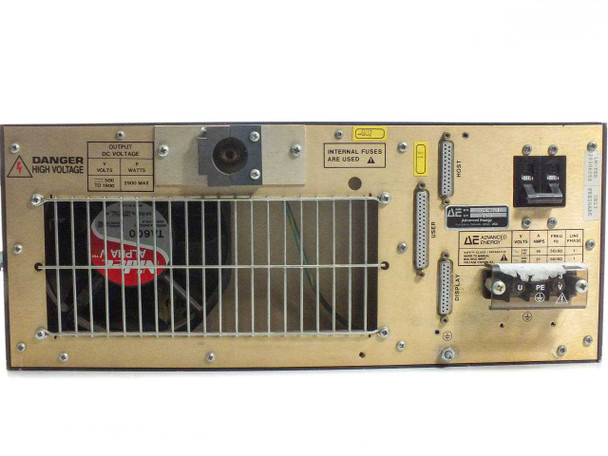

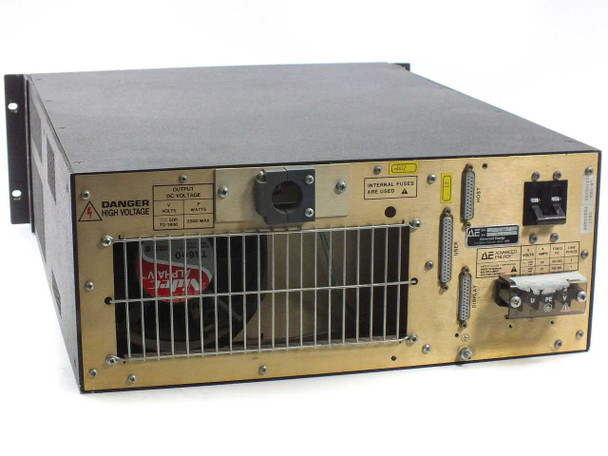

- Rear Panel: High-voltage DC output port, large cooling fan with protective grill, dual D-sub control/interface connectors, AC input circuit breaker, internal fuses (warning label present)
- Danger label: "OUTPUT DC VOLTAGE — DANGER HIGH VOLTAGE" on rear panel
- Unit only — no additional accessories confirmed
Applications
The Advanced Energy MDX series are DC magnetron drive power supplies used in PVD (physical vapor deposition) sputtering systems, primarily in semiconductor fabrication, flat-panel display manufacturing, optical coating, and hard-coating processes. In a sputtering system, the power supply provides the high-voltage DC bias that sustains the plasma discharge at the magnetron cathode, causing target material to be ejected and deposited as a thin film onto a substrate. The MDX-2.5K at 2500W sits in the mid-power range of the MDX product family — large enough for production-scale single-cathode sputtering but compact enough for research and development tools. Advanced Energy has long been a primary supplier of sputtering power electronics to the semiconductor and display industries, and the MDX series in particular has been widely deployed in both OEM sputter tools and standalone research systems since the 1990s. These units remain in active use wherever legacy sputter systems are maintained and serviced.

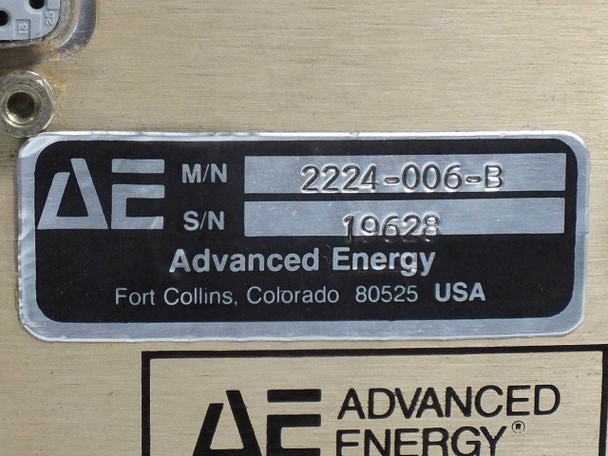

This Advanced Energy MDX-2.5K DC sputtering power supply (M/N 2224-006-B) could not be fully tested at our facility. It is being sold in as-inspected, used condition. The unit is cosmetically intact — the front panel and chassis show light surface wear consistent with lab or fab use, and the rear panel connectors, fan grill, and AC input breaker all appear intact and undamaged. The nameplate label is clean and fully legible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Advanced Energy |
Model: |
MDX-2.5K |
MPN: |
2224-006-B |
Type: |
DC Magnetron Sputtering Power Supply |
SKU: |
52049 |
Output Voltage: |
500–1800V DC |
Max Power Output: |
2500W |
Power Rating: |
2500 Watts |
Application / Use Case: |
DC Magnetron Sputtering, PVD Thin Film Deposition |
Form Factor: |
Rackmount |
Seller Notes: |
Unit only — no additional accessories confirmed included. |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Compatible With: |
PVD sputtering systems, magnetron cathode targets |
Condition Notes: |
This Advanced Energy MDX-2.5K (2224-006-B) DC sputtering power supply could not be fully tested at our facility. Sold as-inspected in used condition. Cosmetically intact with light wear. Please view photos and contact us with questions. |
