Electron Vision ElectronCure 30X E-Beam Photoresist Curing System 30kV

(No reviews yet) Write a Review
SKU:
52065
MPN:
ElectronCure 30X
Condition:
Used
Availability:
Usually ships within 5-7 business days — please contact us regarding freight arrangements for this large item.
Weight:
572.00 LBS
Shipping:
Calculated at Checkout

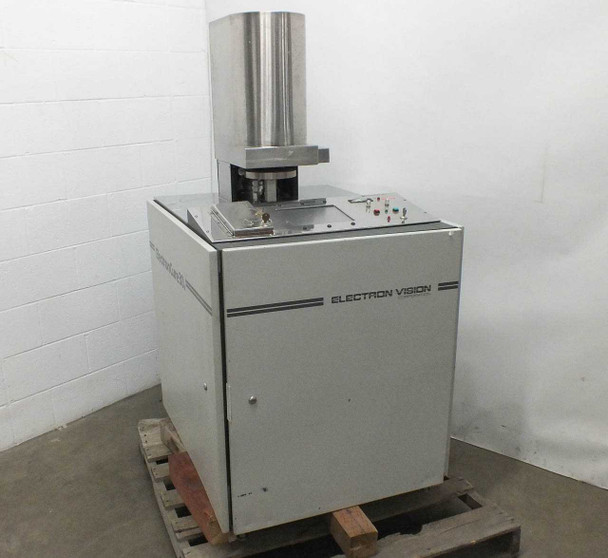

  • Electron Vision ElectronCure 30X e-beam curing system – front-left three-quarter view on pallet showing full cabinet and stainless steel electron column
  • Electron Vision ElectronCure 30X – rear-left view showing stainless steel column with warning labels, ventilation grille, and bottom rear connections panel
  • ElectronCure 30X top deck close-up – stainless steel work surface with wafer stage, control panel showing indicators and switches, and Electron Vision branding

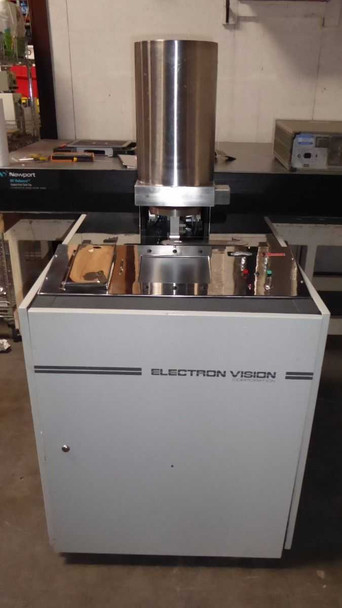

  • Electron Vision ElectronCure 30X – front view in lab setting showing full cabinet with white panels, 'ELECTRON VISION' lettering, and electron column assembly
  • ElectronCure 30X interior rack view – shows Electron Vision high voltage power supply module, ElectronCure 30x control electronics unit, and interconnect wiring

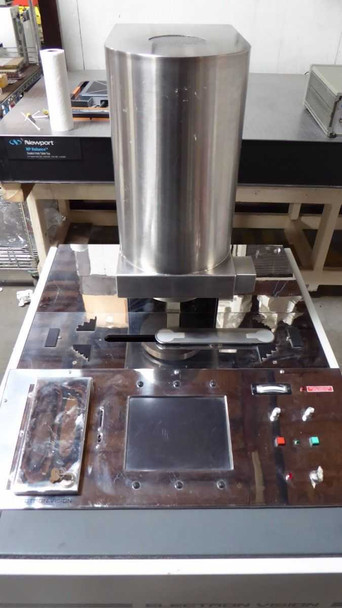

  • ElectronCure 30X top work surface – stainless steel deck with wafer chuck stage, control switches, indicator lights, and accessory holders visible
  • ElectronCure 30X interior cabinet view – shows internal wiring harnesses, pressure gauge, vacuum components, power supply module, and cooling fan
  • ElectronCure 30X integrated keyboard drawer – slide-out drawer with vintage keyboard and floppy disk drive, with floppy disks visible alongside
  • ElectronCure 30X system status screen – GUI display showing 'ElectronCure 30 Exposure System' system status with beam voltage, pressure, and current readout fields
  • Electron Vision rack interior – close-up of high voltage power supply with LED numeric display showing dose readings and ElectronCure 30x control electronics panel below

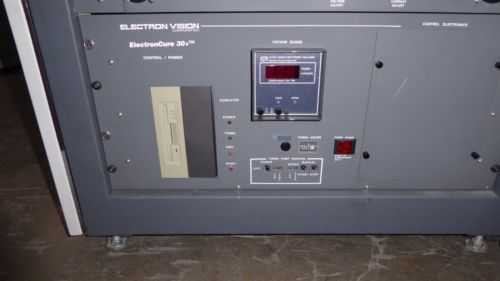

  • ElectronCure 30X control electronics panel – front panel showing floppy drive, vacuum gauge display, control indicators, power switches, and dose controls

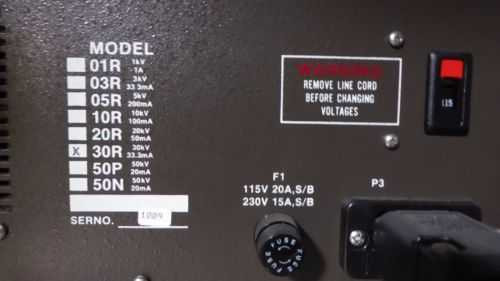

  • ElectronCure 30X model selection plate – rear label showing model variants (01R through 30N), with 30R (30kV, 33.3mA) checked; fuse ratings F1: 115V 20A or 230V 15A visible
  • ElectronCure 30X top deck – alternate angle showing stainless steel work surface, wafer stage, control panel area, and safety interlock components
  • ElectronCure 30X nameplate close-up – 'ElectronCure 30x' model designation printed on white cabinet side panel
$6,000.00
Was: $12,000.00
Current Stock: 1

Sold Out

Description

Electron Vision ElectronCure 30X E-Beam Photoresist Curing System 30kV

An electron beam photoresist curing system designed for semiconductor lithography and microelectronics fabrication. Operates at 30kV accelerating voltage with maximum beam current of 33.3mA.

Specifications & What's Included

  • Model: ElectronCure 30X (30R configuration, 30kV)
  • Accelerating Voltage: 30 kV
  • Maximum Beam Current: 33.3 mA
  • Power Requirements: 115V 20A or 230V 15A (single or both)
  • Dimensions: 37"W x 31"D x 60"H (freestanding cabinet/benchtop column)
  • Includes: Integrated PC controller with keyboard, floppy drive, high voltage power supply, control electronics rack

Applications

E-beam photoresist curing systems are used in semiconductor manufacturing and lithography processes to cure and pattern photoresist materials on silicon wafers and similar substrates. This equipment supports precision microfabrication workflows in research, prototyping, and production environments where electron beam exposure provides fine control over pattern resolution and curing characteristics.

Condition: For Parts or Not Working
This Electron Vision ElectronCure 30X E-Beam Photoresist Curing System is being sold AS-IS for parts or repair. A broken key prevents access to the internal cabinet, and as a result the system has not been powered or tested at our facility. The unit cannot be guaranteed functional in its current state. Externally, the cabinet shows typical wear for its age — light scuffing on the painted surfaces and general lab soiling — while the stainless steel work deck and electron column are intact and present. Internal rack components visible through the open rear include the Electron Vision high-voltage power supply and ElectronCure 30X control electronics. The integrated keyboard, slide-out drawer, and floppy drive are present and appear intact. The model plate on the rear panel confirms this is the 30R configuration (30kV, 33.3mA). This unit is sold strictly as-is with no guarantee of functionality. Please view our full photo set and contact us if you have any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Electron Vision
Model:
ElectronCure 30X
MPN:
ElectronCure 30X
Type:
E-Beam Photoresist Curing System
SKU:
52065
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold AS-IS; broken key blocks access to internals; not tested
Accelerating Voltage:
30 kV
Beam Current:
33.3 mA (max, per model plate)
Power Requirements:
115V 20A or 230V 15A, Single/Both
Application:
Photoresist curing, semiconductor lithography
Form Factor:
Freestanding Cabinet / Benchtop Column
Overall Dimensions:
37" W x 31" D x 60" H
Includes:
Integrated keyboard, floppy drive, control electronics rack
Control System:
Integrated PC controller with keyboard and floppy drive
Internal Rack Components:
High voltage power supply, ElectronCure 30x control electronics
Country/Region of Manufacture:
United States
Condition Notes:
Electron Vision ElectronCure 30X E-Beam Curing System sold AS-IS for parts/repair. Broken key blocks internal cabinet access; not tested. No functionality guarantee. 30R config (30kV). Please contact us with questions.
