Advanced Energy MDX 2011-011-C 5KW DC Magnetron Drive Power Supply 208V 3Ph

Advanced Energy MDX 2011-011-C 5KW DC Magnetron Drive Power Supply 208V 3Ph 50/60Hz

The Advanced Energy MDX 2011-011-C is a 5-kilowatt DC power supply engineered for magnetron drive applications in physical vapor deposition (PVD) and plasma-assisted thin-film sputtering systems. The MDX series is widely deployed in semiconductor fabrication, optical coating, and industrial sputtering environments. This unit provides regulated DC output with integrated front-panel controls and external control integration via dual DB-25 connectors (USER and DISPLAY interfaces).

Specifications & What's Included

• Power output: 5 kW DC
• Input: 208V AC, three-phase, 50/60 Hz

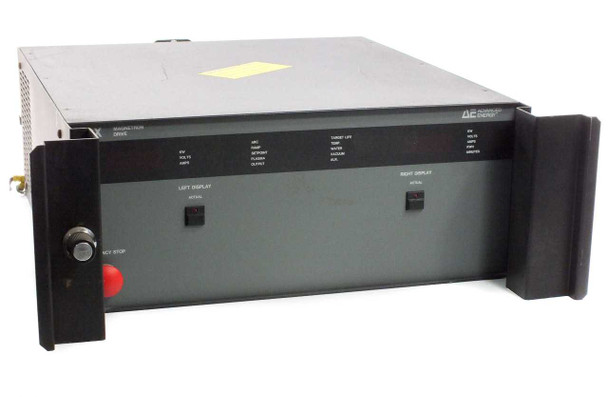

• Dual independent digital displays — KW/Volts/Amps readout (switchable to Actual)
• Status indicators: Arc, Ramp, Setpoint, Plasma, Output, Target Life, Temperature, Water, Vacuum, Auxiliary

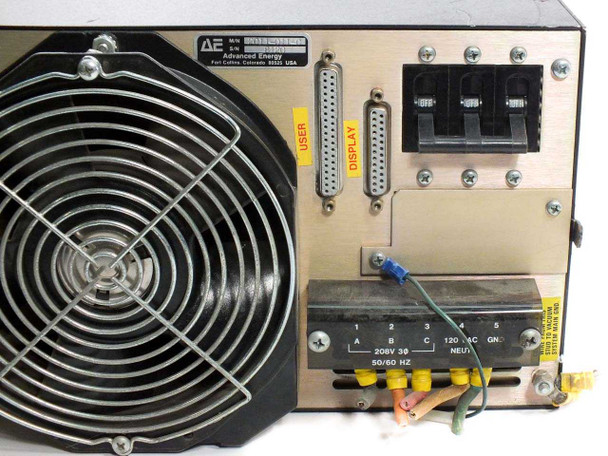

• Rear connectors: USER (DB-25) and DISPLAY (DB-25) for external control
• Front-panel Emergency Stop button
• Circuit protection: Three-position circuit breaker array (rear panel)
• Cooling: Dual large-diameter axial exhaust fans
• Form factor: Rackmount, 24in W × 20in D × 7in H

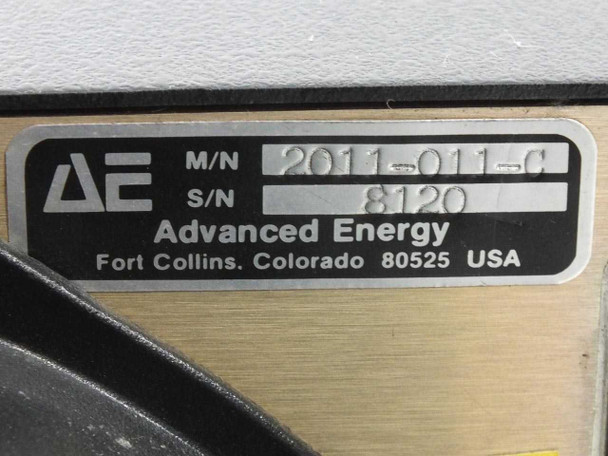

• Manufactured in Fort Collins, Colorado
• Unit only — user manual available separately

Applications

Used in PVD and CVD thin-film deposition systems, magnetron sputtering platforms, semiconductor process equipment, and optical coating production. Commonly integrated with Advanced Energy MDX series sputtering systems and compatible with most industry-standard deposition chambers.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
