Entegris NOWPak NL-200-NS60G-1 NDTV-T200 200L Liner Diptube NS60 FEP Qty 20

Entegris NOWPak NL-200-NS60G-1 NDTV-T200 200L Liner Diptube NS60 FEP Qty 20

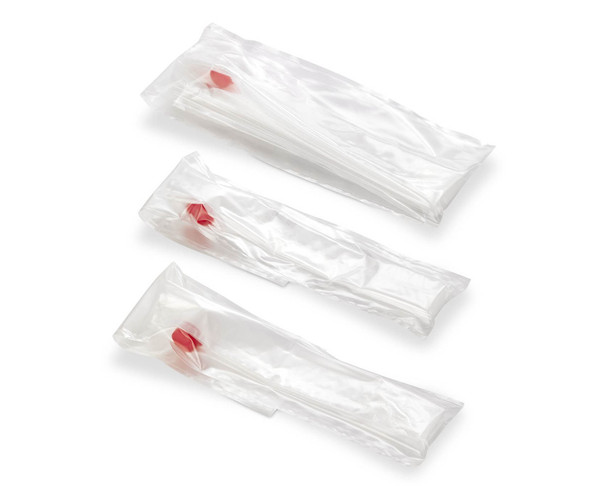

This lot includes 20 new Entegris NOWPak consumables: 10 NL-200-NS60G-1 NS60 conformal replacement liners (200L) and 10 NDTV-T200 FEP high-viscosity diptube assemblies. Both parts are designed for use with Entegris NOWPak liner-based canister dispensing systems. The liners and diptubes are factory-sealed, batch-certified, and manufactured in a Class 5 cleanroom to ISO 14644-1:2005 standards.

Specifications & What's Included

• Liner Part Number: NL-200-NS60G-1
• Diptube Part Number: NDTV-T200
• Quantity: 20 total — 10 liners (NL-200-NS60G-1) + 10 diptubes (NDTV-T200)
• Liner capacity: 200 Liter

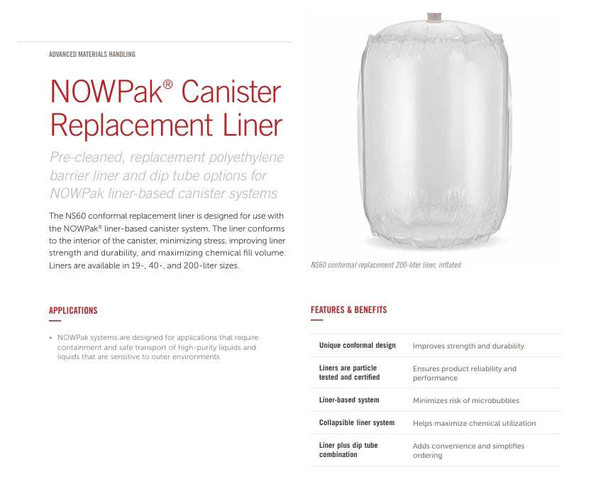

• Liner type: NS60 conformal replacement liner — HDSP, CERT, TFE/P
• Liner material: PE barrier film (translucent); fitment adapter: injection-molded natural HDPE
• Fitment O-ring: EPDM, Chemraz, or semi-perfluoroelastomer
• Retainer and temporary cap: injection-molded natural HDPE / red-pigmented LDPE
• Liner base: PE

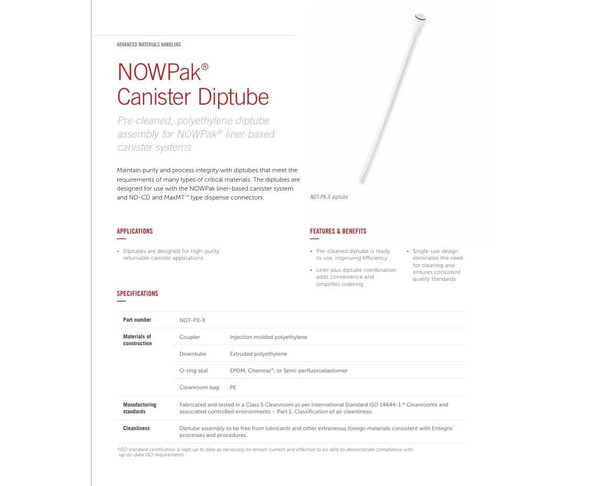

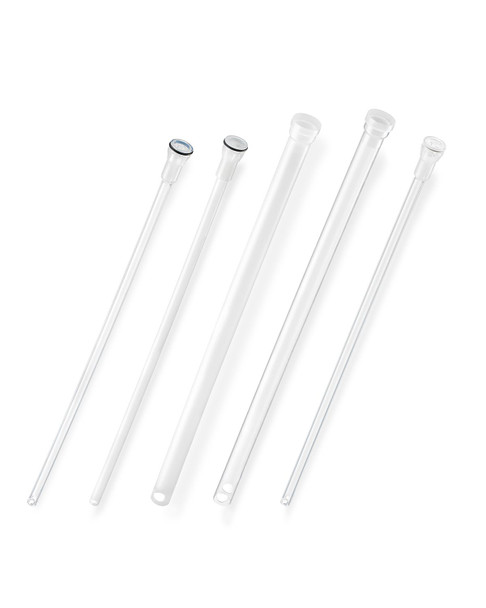

• Diptube type: High viscosity connector, FEP (NDTV-T200 high-viscosity diptube)
• Diptube material: FEP (fluorinated ethylene propylene) extruded tube; EPDM/Chemraz O-ring

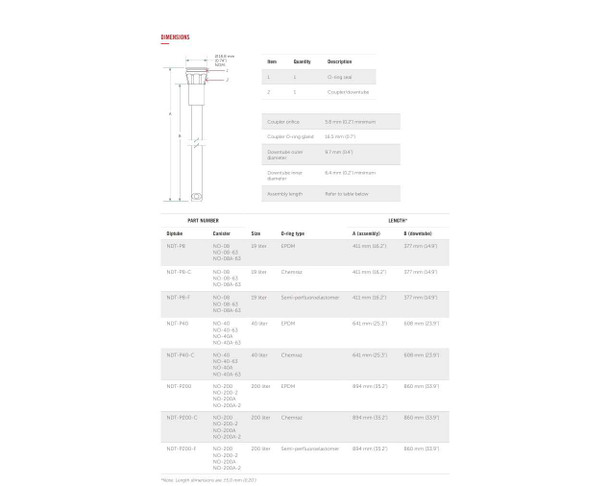

• 200L fill opening: 2-inch fitment — 50.7 mm (2.00 inch)
• Manufacturing standard: Fabricated and tested in a Class 5 cleanroom (ISO 14644-1:2005)
• Film and seal defect detection: Visual inspection using room light
• Liner leak detection: Pressure decay tested
• Liner integrity verification: Weld tensile strength tested
• Particle count verification: Tested with ultrapure DI water; Certificate of Analysis included stating particle count data (certified lines not to exceed 10 counts per ml at 1,000 nm in ultrapure DI water)
• Diptube cleanliness: Free of tartrates and other extraneous foreign materials, compliant with Entegris processes and procedures

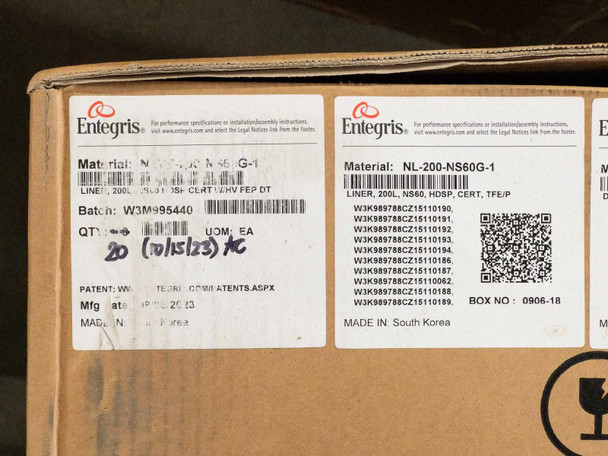

• Batch: W3M995440
• Manufacture date: 2023
• Country of manufacture: South Korea
• Compatible with: Entegris NOWPak liner-based canister systems

Applications

The Entegris NOWPak system is a liner-based bulk chemical dispensing platform used in semiconductor fabrication facilities to contain and dispense high-purity process chemicals — including photoresists, CMP slurries, wet etch chemistries, and other liquids that are sensitive to contamination or react with standard containers. The NS60 conformal liner design conforms to the interior of the NOWPak canister, minimizing headspace and reducing microbubble formation, which is critical when dispensing particle-sensitive chemicals onto wafers. The collapsible liner-based approach also maximizes chemical utilization by allowing near-complete emptying of the canister. The NDTV-T200 FEP high-viscosity diptube is paired with the liner for applications involving thicker or more viscous chemistries, where standard diptubes may restrict flow. These components are used in 200mm and 300mm wafer fabs, flat panel display manufacturing, and other advanced semiconductor processes where chemical purity, particle cleanliness, and precise fluid delivery are controlled to tight process specifications. Each liner ships with a Certificate of Analysis confirming particle count compliance.
