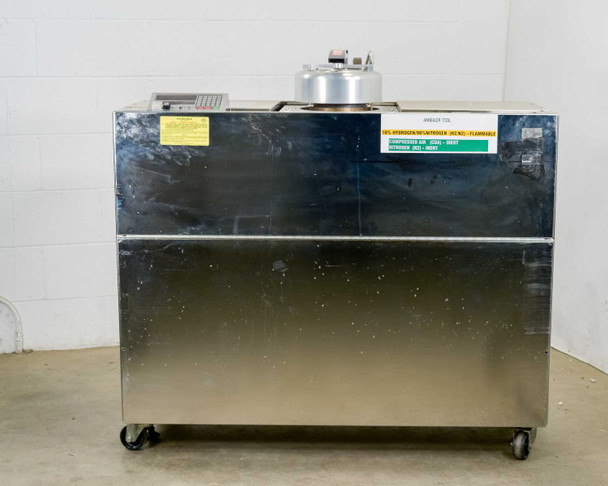

  • C&D Semiconductor 8838A alloy annealer – right front three-quarter view showing stainless steel cabinet body, annealer tool label, and H2/N2 CDA N2 gas designation stickers

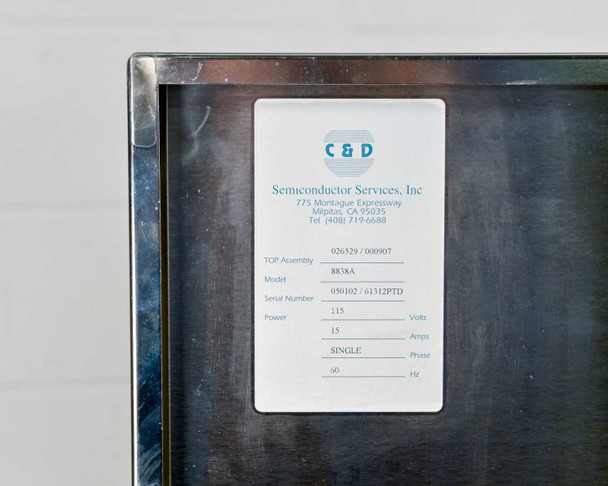

  • C&D Semiconductor Services rating plate showing TOP Assembly 026529/000907, Model 8838A, Serial Number, Power 115V, 15 Amps, Single Phase, 60 Hz
  • 8838A annealer hot plate work area with 6-inch wafer chuck and aluminum dome lid assembly in raised position, DANGER HOT warning label visible
  • Close-up of 8838A annealer hot plate assembly with dome lid in closed/lowered position over the circular wafer chuck, DANGER HOT label on front edge

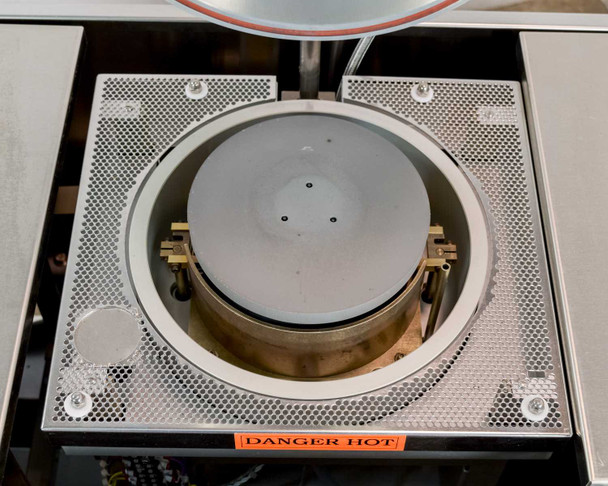

  • 6-inch circular annealing hot plate with perforated surround plate, chuck detail showing three alignment pins, and copper-tone heating element ring visible below chuck
  • 8838A front panel gas label strip reading Annealer Tool – 10% Hydrogen/90% Nitrogen (H2/N2) Flammable, Compressed Air (CDA) Inert, Nitrogen (N2) Inert; Watlow-style process controller and push-button controls visible in recess
  • Prime/Oven controller panel with LED numeric display labeled Prime/Oven, model label 8838 VP, keypad with numeric and function keys, power switch, key switch, and large hydrogen hazard warning label below
  • Watlow Series 988 process controller panel showing dual LED process/setpoint display, DEV/% OUT indicators, L1–L4 status LEDs, Display, Auto/Man, and Mode buttons; Reset and Bypass buttons at left; VAC Signal SWT on/off toggle at right

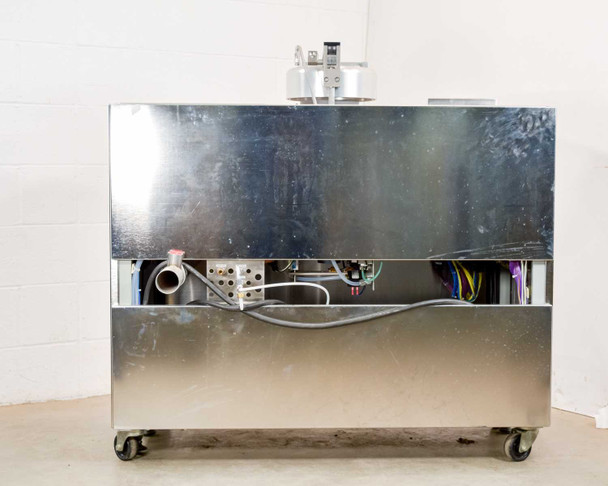

  • Rear of 8838A annealer showing open lower bay with gas manifold plumbing, electrical conduit, multi-color wiring harnesses, and caster-mounted base

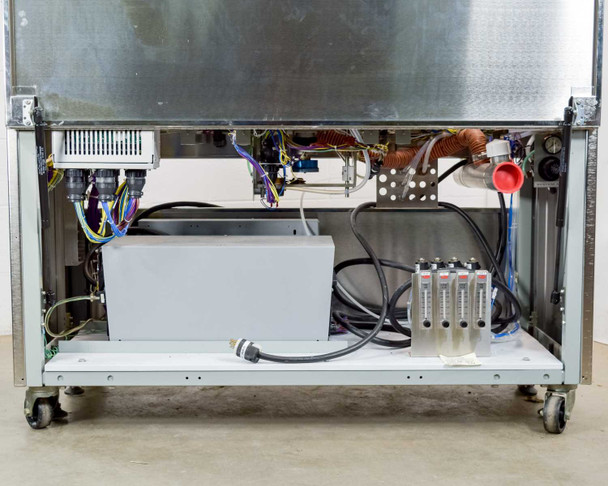

  • Interior rear lower bay view showing gray transformer/power supply enclosure, multi-color wiring bundles, Dwyer rotameter flow meter bank (4 meters), and solenoid valve manifold

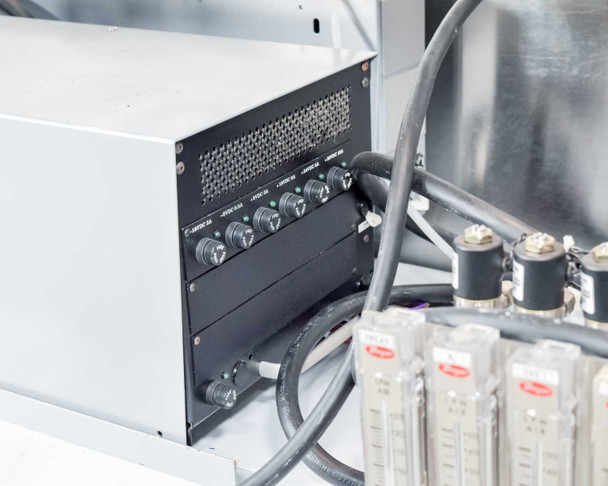

  • Close-up of internal controller sub-chassis with multiple rotary control knobs (labeled Load 1A, Load 2A, etc.) and adjacent Dwyer rotameter bank with solenoid valve heads

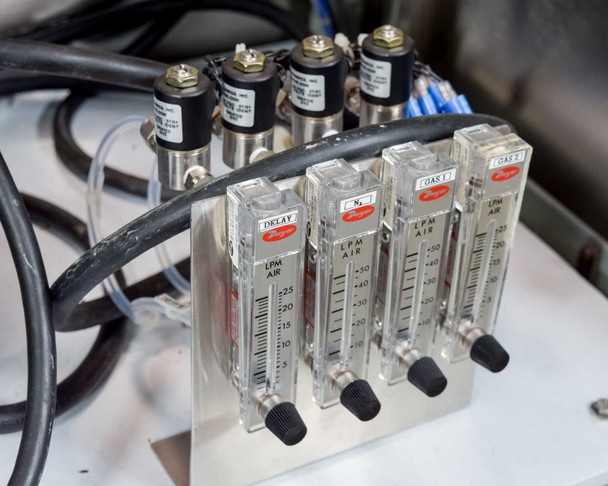

  • Dwyer rotameter flow meter bank – four vertical LPM Air flowmeters labeled Delay, N2, Gas 1, Gas 2 with black knob needle valves; four solenoid valves mounted above
  • Close-up of solenoid valve manifold showing four 24VDC Fluid Dynamics Inc. solenoid valves with tubing connections and rotameter bank visible at right
  • Internal wiring bay viewed from above – multi-color wiring harnesses (yellow, blue, purple, white), terminal blocks, aluminum chassis rails, and a small black sub-module visible
  • Internal component bay showing circuit board assembly with edge-connector ribbon cables, three large black cable gland conduit fittings, and DO NOT OPEN HIGH PRESSURE warning label

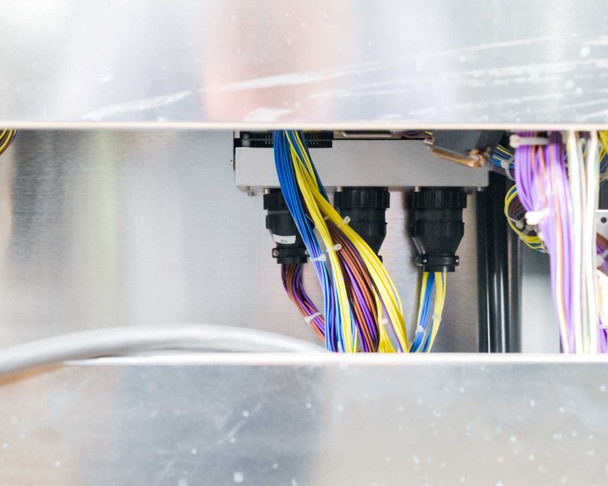

  • Internal mid-section wiring gap view showing multi-color cable harnesses routed through black cable gland fittings and along the chassis frame

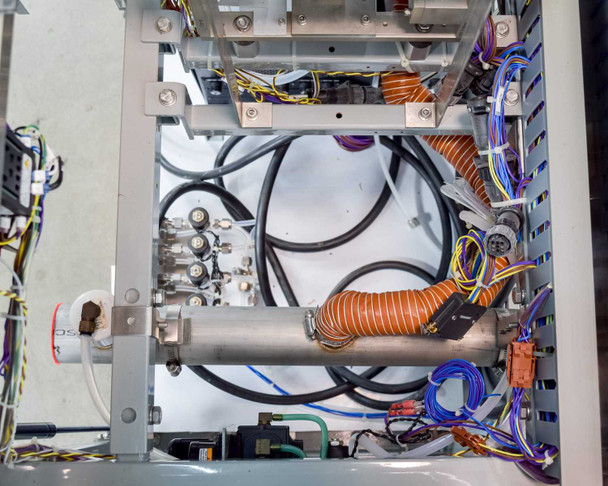

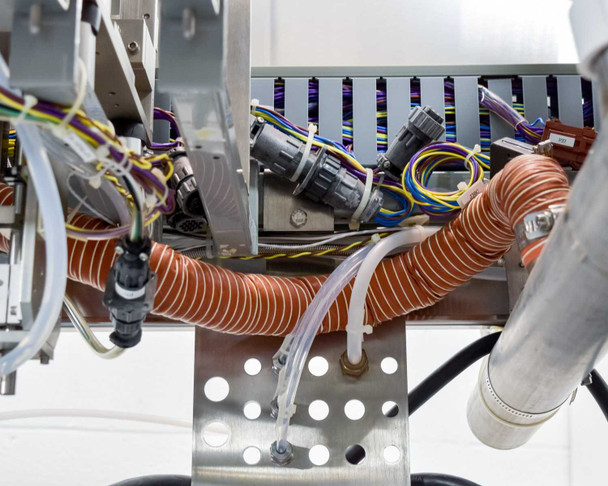

  • Internal lower chassis view showing orange-wrapped heating coil assembly, stainless manifold block with fittings, black high-voltage wiring, thermocouple wiring, and aluminum structural rails

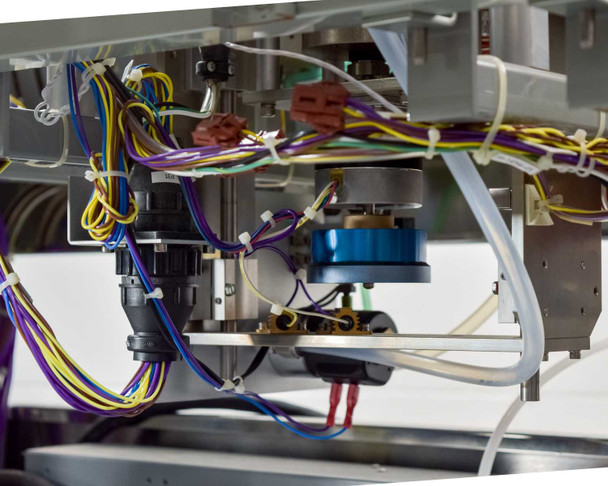

  • Underside internal mechanism view showing small DC motors, a blue toroidal component, wiring harnesses, plastic tubing, and mechanical linkage assembly for the lid/dome actuator
  • Lower side access panel view showing gas inlet manifold with labeled ports (Main, Safety, Delay), white and green tubing connections, a small pump, and orange heat coil visible at rear
  • C&D Semi Conductor Services 8838A 6" Wafer Alloy Annealer System H2/N2 Prime Oven
  • C&D Semi Conductor Services 8838A 6" Wafer Alloy Annealer System H2/N2 Prime Oven
  • C&D Semi Conductor Services 8838A 6" Wafer Alloy Annealer System H2/N2 Prime Oven
  • C&D Semi Conductor Services 8838A 6" Wafer Alloy Annealer System H2/N2 Prime Oven
  • C&D Semi Conductor Services 8838A 6" Wafer Alloy Annealer System H2/N2 Prime Oven
$1,500.00
Was: $3,000.00
Current Stock: 1

Sold Out

Description

C&D Semiconductor 8838A 6" Wafer Alloy Annealer H2/N2 Watlow 988 115V

Floor-standing wafer alloy annealer for 6-inch (150mm) semiconductor processing. Used for ohmic contact formation and alloy annealing in semiconductor fabrication with hydrogen/nitrogen gas mixture capability.

Specifications & What's Included

  • Model: 8838A / 8838 VP; 6.5-inch annealing hot plate
  • Process gases: H2/N2 (10/90), compressed air, nitrogen with pump-out capability
  • Watlow Series 988 process controller
  • Dwyer 4-channel rotameter flow meter bank (LPM Air)
  • 24 VDC solenoid valve bank (Fluid Dynamics Inc.)
  • 115V AC, single phase, 15A, 60Hz
  • Mobile with caster mounting; stainless steel enclosure

Applications

Wafer alloy annealing equipment is used in semiconductor manufacturing for ohmic contact formation and metallurgical processing of silicon wafers. Operates with controlled gas atmospheres to achieve precise thermal profiles. Commonly found in semiconductor fabs and processing facilities for device fabrication workflows.

Condition: Used
This C&D Semiconductor Services 8838A 6-inch Wafer Alloy Annealer has been inspected and is in good condition. It was pulled from a working environment where it was actively in use and functional. The stainless steel cabinet shows surface scuffs and smudging consistent with normal fab environment use. The hot plate, dome lid assembly, Watlow Series 988 process controller, Dwyer rotameter flow meter bank, solenoid valve manifold, and internal wiring all appear intact and complete. Gas hazard labels are present and legible. The unit rides on locking casters and the lower access bay is open, showing plumbing and wiring in organized condition. Please view our photo set and contact us if you have any questions.
