Description
Semiconductor Services 8838 VP Prime/Oven Control Module STD-600386-01 HCIE
Control module for semiconductor wafer processing systems. Manages prime and oven operations in automated track systems.
Specifications & What's Included
- Model: 8838 VP; MPN: STD-600386-01
- Five internal boards: Interface (STD-600386-01), Display (9480073B), Keyboard (94800740-01), Motherboard (9480105B), Transistor (9480092A)

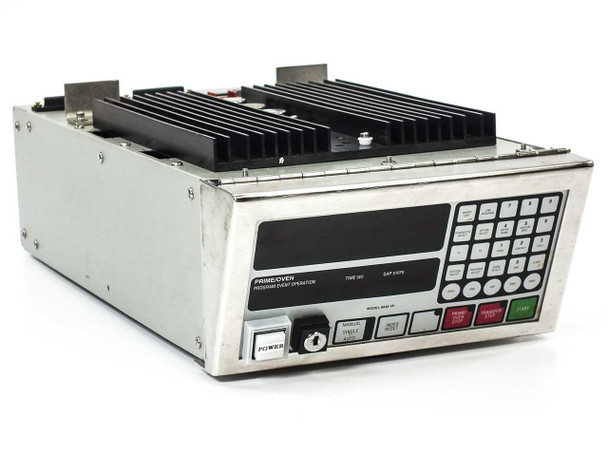

- Front panel controls: Power key, Manual/Single/Auto selector, Index Reset, Prime/Oven Stop, Transfer Stop, Start
- LED/alphanumeric display with multi-pin circular MIL-style connectors (J15–J19) and DB9 connections
- Benchtop standalone form factor; manufactured in the United States
Applications
Used in semiconductor wafer processing equipment for controlling prime and oven operations. Interfaces with automated track systems for thermal processing sequences. Manages temperature and timing cycles in wafer fabrication environments.
Condition: For Parts or Not Working
This Semiconductor Services 8838 VP Prime/Oven Control Module is being sold AS-IS and has not been tested at our facility, as we do not have the equipment required to verify its operation. The unit contains all five internal boards: the HCIE Track Interface Board (STD-600386-01), Display Board (9480073B), Keyboard (94800740-01), Motherboard (9480105B), and Transistor Board (9480092A). Externally, the enclosure is in fair used condition with surface scuffs and wear consistent with industrial service; the front panel labeling is legible and the keypad buttons appear intact. The rear panel features five large multi-pin circular MIL-style connectors (J15–J19). The unit is sold without any guarantee of functionality and is intended for parts, repair, or integration by buyers with the appropriate test equipment. Please view our photo set and contact us if you have any questions.
This Semiconductor Services 8838 VP Prime/Oven Control Module is being sold AS-IS and has not been tested at our facility, as we do not have the equipment required to verify its operation. The unit contains all five internal boards: the HCIE Track Interface Board (STD-600386-01), Display Board (9480073B), Keyboard (94800740-01), Motherboard (9480105B), and Transistor Board (9480092A). Externally, the enclosure is in fair used condition with surface scuffs and wear consistent with industrial service; the front panel labeling is legible and the keypad buttons appear intact. The rear panel features five large multi-pin circular MIL-style connectors (J15–J19). The unit is sold without any guarantee of functionality and is intended for parts, repair, or integration by buyers with the appropriate test equipment. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Semiconductor Services Inc |
Model: |
8838 VP |
MPN: |
STD-600386-01 |
Secondary Model: |
9480073B / 9480105B / 9480092A |
SKU: |
49829 |
Type: |
Prime/Oven Control Module |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes HCIE Track Interface Board, display board, keyboard, motherboard, and transistor board |
Application: |
Semiconductor Wafer Track / Oven Processing System |
Included Boards: |
STD-600386-01, 9480073B, 94800740-01, 9480105B, 9480092A |
Interface Board PN: |
STD-600386-01 |
Display Board PN: |
9480073B |
Keyboard PN: |
94800740-01 |
Motherboard PN: |
9480105B |
Transistor Board PN: |
9480092A |
Connector Type: |
Multi-pin circular MIL-style connectors (J15, J16, J17, J18, J19); DB9; red multi-pin |
Front Panel Controls: |
Power key, Manual/Single/Auto selector, Index Reset, Prime/Oven Stop, Transfer Stop, Start |
Display Type: |
LED/Alphanumeric front panel display |
Form Factor: |
Benchtop / Standalone Module |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Semiconductor Services 8838 VP Prime/Oven Control Module sold AS-IS, untested. We cannot test at our facility. All 5 internal boards present. No functionality guaranteed — for parts or repair only. Please contact us with questions. |
