Description

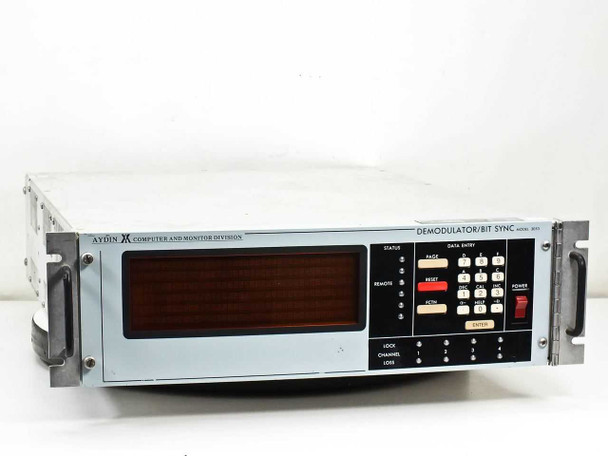

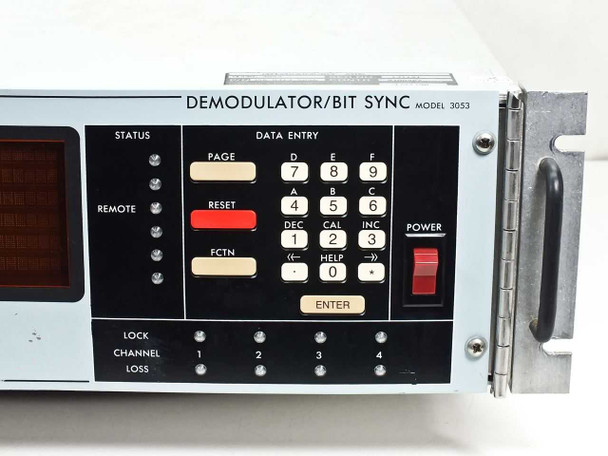

Aydin 3053 Demodulator Bit Sync 356-0313-505A 4-Channel RS-232 TTL Rackmount
4-channel demodulator and bit synchronizer unit in rackmount form factor. Designed for satellite communications and telemetry applications requiring bit-level synchronization across multiple channels.
Specifications & What's Included
- Model: Aydin 3053 (MPN: 356-0313-505A)
- 4 channels with RS-232, TTL, and RS-449 interfaces
- Connectors: BNC, RS-232 DB-25, RS-449 DB-37, IEEE-488 GPIB

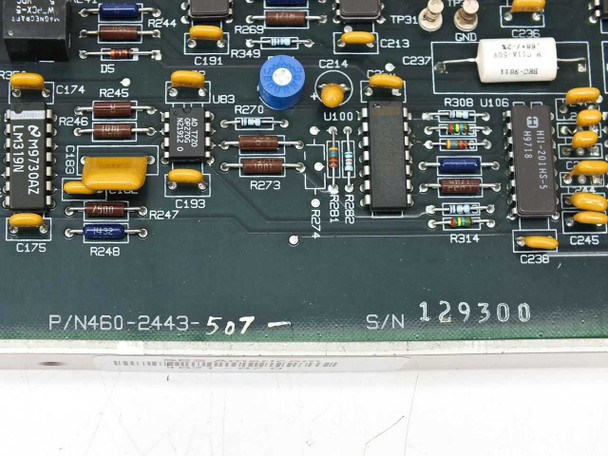

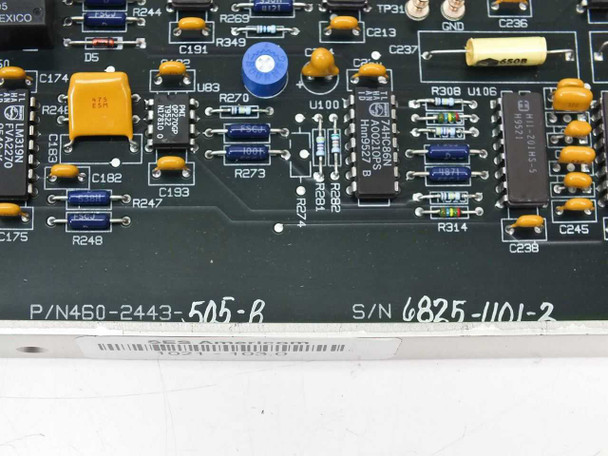

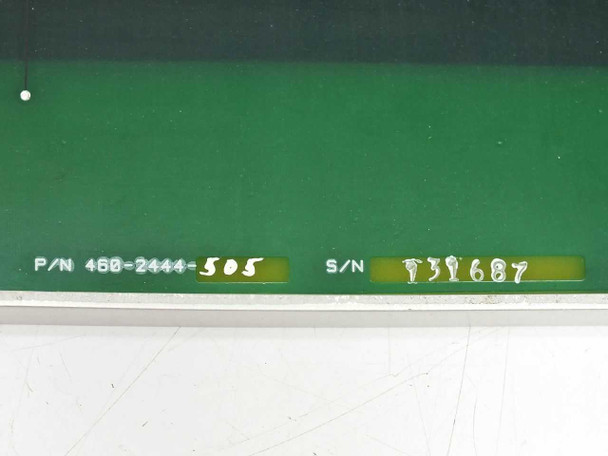

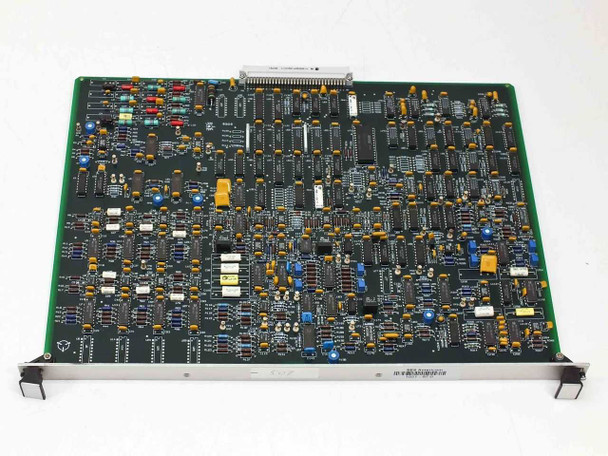

- Includes (1) 460-2444-505 controller card, (2) 460-2443-505 circuit cards, (2) 460-2443-507 circuit cards

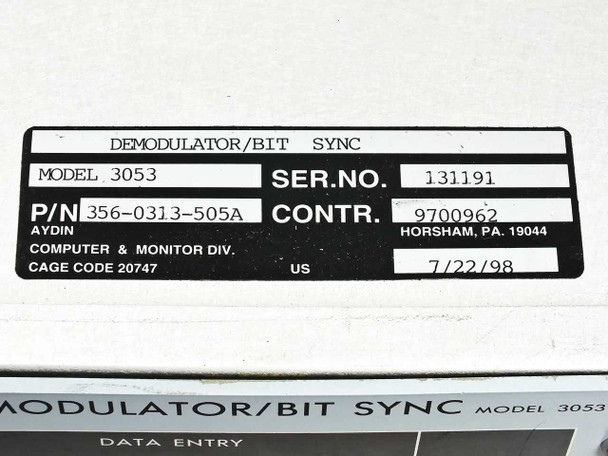

- Manufactured: July 1998, Aydin Computer and Monitor Division, Horsham PA
Applications
Used in satellite ground station systems and telemetry receivers for bit synchronization. The unit integrates with Aydin satcom ground station architectures. Typical deployment involved demodulation and clock recovery from satellite downlink signals, with multi-channel capability supporting parallel telemetry streams. RS-449 and GPIB interfaces allowed integration with test equipment and host control systems.
Condition: For Parts or Not Working
This Aydin 3053 Demodulator/Bit Sync (P/N 356-0313-505A) powers on but produces no readout on the front-panel display. The cause of the display fault has not been diagnosed and the unit is not guaranteed functional. It is being sold strictly AS-IS for parts or repair. The unit includes (1) 460-2444-505 controller card, (2) 460-2443-505 circuit cards, and (2) 460-2443-507 circuit cards, all of which may be useful individually. The chassis shows normal wear consistent with its age and prior service use. Please view our photo set and contact us if you have any questions.
This Aydin 3053 Demodulator/Bit Sync (P/N 356-0313-505A) powers on but produces no readout on the front-panel display. The cause of the display fault has not been diagnosed and the unit is not guaranteed functional. It is being sold strictly AS-IS for parts or repair. The unit includes (1) 460-2444-505 controller card, (2) 460-2443-505 circuit cards, and (2) 460-2443-507 circuit cards, all of which may be useful individually. The chassis shows normal wear consistent with its age and prior service use. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Aydin |
Model: |
3053 |
MPN: |
356-0313-505A |
Secondary Model: |
356-0313-505A |
Type: |
Demodulator / Bit Synchronizer |
SKU: |
45095 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes (1) 460-2444-505 controller card, (2) 460-2443-505 circuit cards, (2) 460-2443-507 circuit cards |
Form Factor: |
Rackmount |
Number of Channels: |
4 |
Interface Type: |
RS-232, TTL, RS-449 |
Connector Type: |
BNC, RS-232 DB-25, RS-449 DB-37, IEEE-488 GPIB |
Rear Interfaces: |

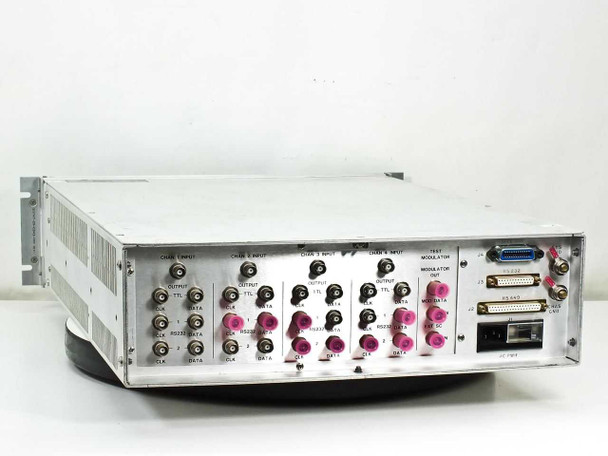

RS-232 (J3), RS-449 (J2), IEEE-488 GPIB (J4), AC PWR inlet |
Included Cards: |
(1) 460-2444-505 Controller, (2) 460-2443-505, (2) 460-2443-507 |
Country/Region of Manufacture: |
United States |
Manufacturer Division: |
Aydin Computer and Monitor Division, Horsham PA |
Contract Number: |
9700962 |
Date of Manufacture: |
7/22/98 |
Application: |
Satellite communications, telemetry bit synchronization |
Compatible With: |
Aydin satcom ground station systems, telemetry receivers |
Condition Notes: |
Aydin 3053 Demodulator/Bit Sync 356-0313-505A powers on but has no display output. Sold AS-IS for parts or repair — not guaranteed functional. Includes controller and circuit cards. Please contact us with questions. |
