Description
Aydin 3053 Demodulator Bit Sync 356-0313-502 4-Channel RS-232 RS-449 IEEE-488
The Aydin 3053 is a rackmount demodulator and bit synchronizer unit designed for telemetry and satellite data applications. It processes incoming signals across four independent channels with multiple interface options.
Specifications & What's Included

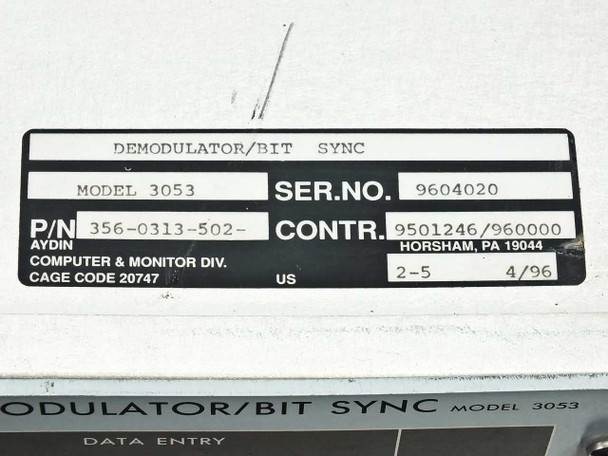

- Model: Aydin 3053 (MPN 356-0313-502)
- 4-channel demodulator/bit synchronizer
- Interfaces: RS-232, RS-449, IEEE-488 (GPIB), TTL

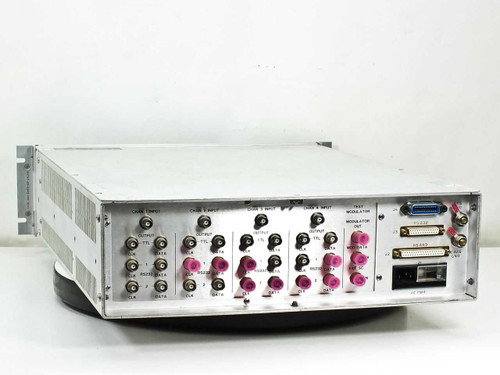

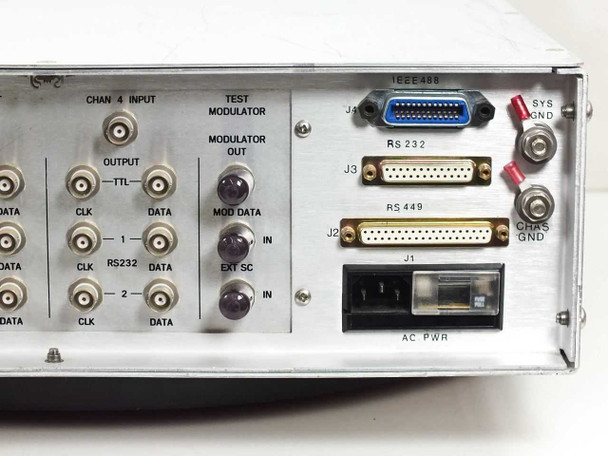

- Connectors: BNC, DB25, DB37, GPIB, AC power

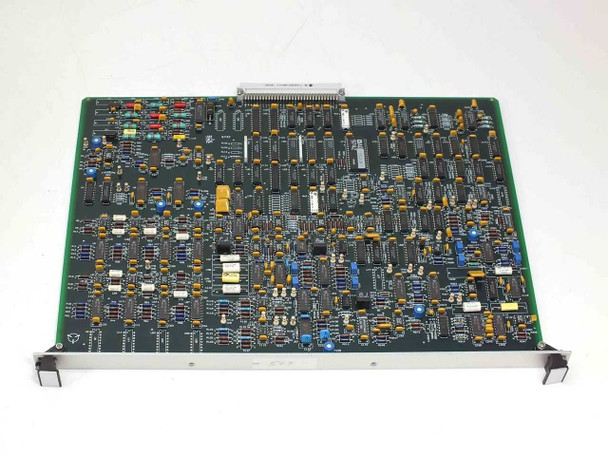

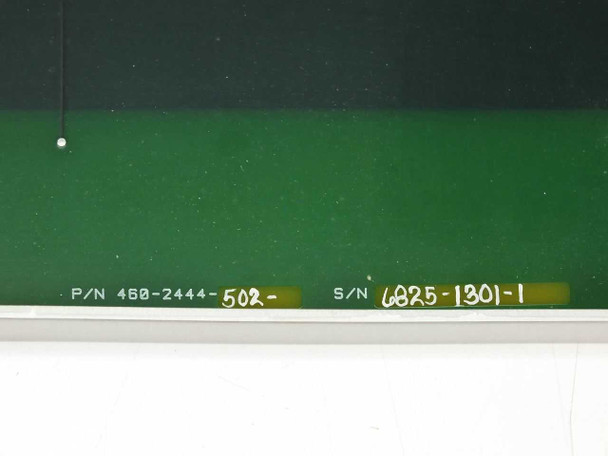

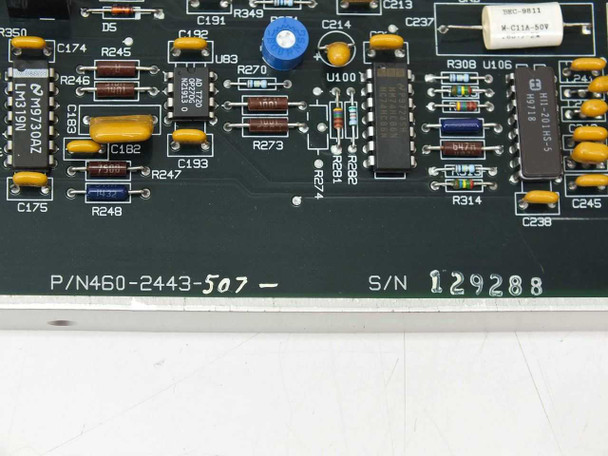

- Includes 5 circuit cards: 2x 460-2443-505, 2x 460-2443-507, 1x 460-2444-502 control card
- U.S. manufactured (Aydin Computer and Monitor Division)
Applications
The 3053 was used in telemetry receive systems and satellite ground stations for demodulating and synchronizing data streams. Units of this type typically integrated with test equipment and data acquisition systems requiring bit-level signal recovery across multiple channels. The multi-protocol interface design supported legacy systems across various platforms.
Condition: For Parts or Not Working

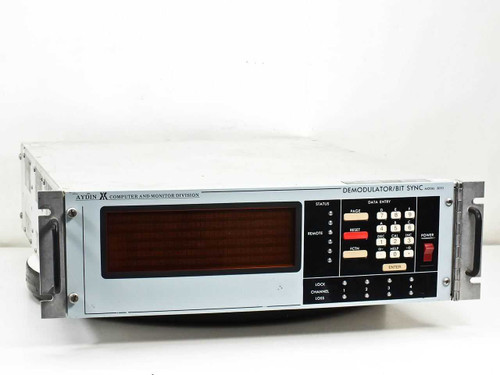

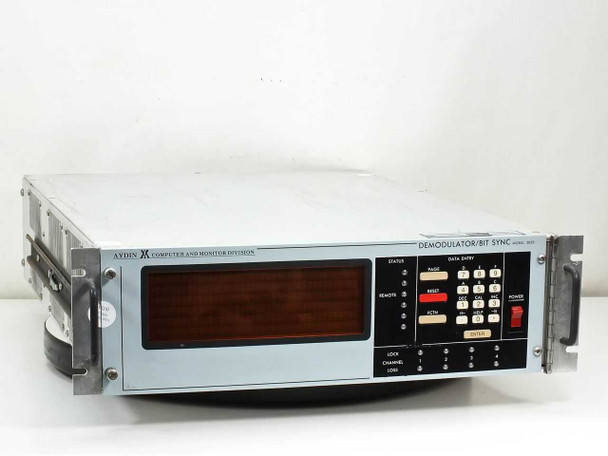

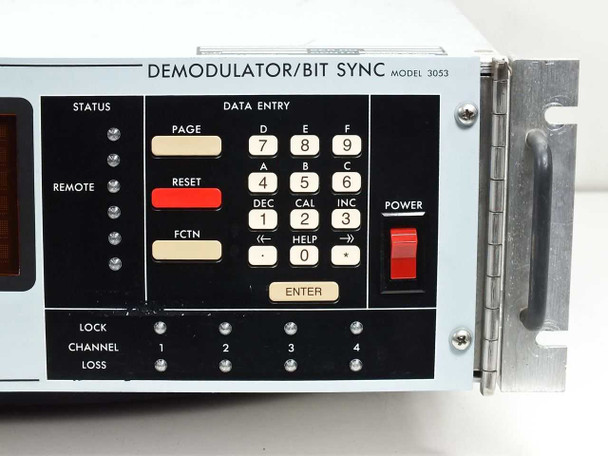

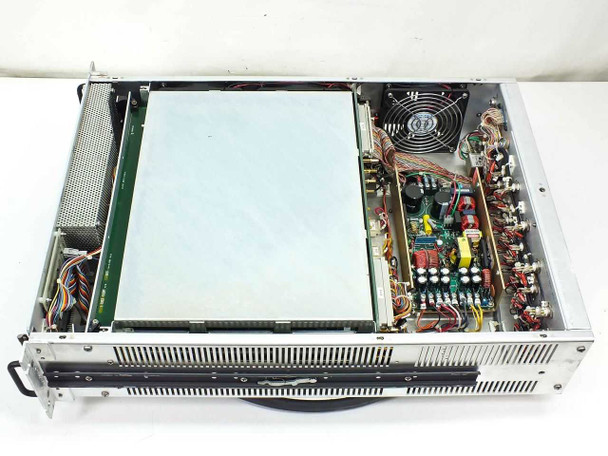

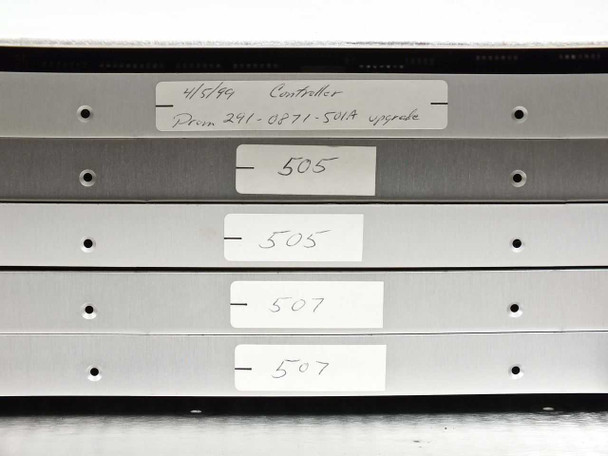

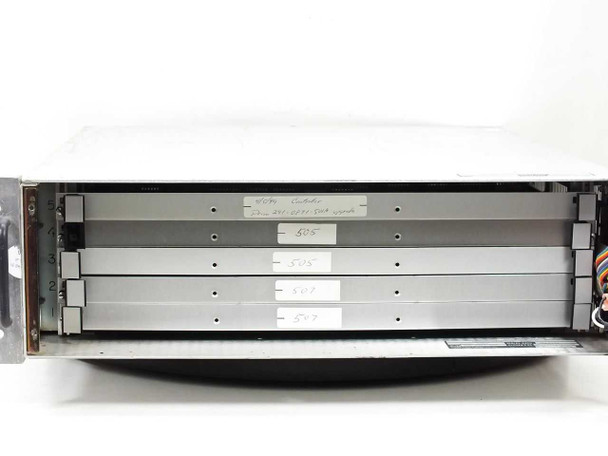

This Aydin 3053 Demodulator/Bit Sync (P/N 356-0313-502) is being sold as-is for parts or repair. When powered on the fan runs, but there is no readout on the front panel display. The unit has not been further tested and is not guaranteed functional. It includes two Aydin 460-2443-505 circuit cards, two Aydin 460-2443-507 circuit cards, and one Aydin 460-2444-502 control card — all visible and installed in the card cage. The chassis, front panel, and rear connectors show typical wear consistent with prior rack-mounted use. Please view our photo set and contact us if you have any questions.
This Aydin 3053 Demodulator/Bit Sync (P/N 356-0313-502) is being sold as-is for parts or repair. When powered on the fan runs, but there is no readout on the front panel display. The unit has not been further tested and is not guaranteed functional. It includes two Aydin 460-2443-505 circuit cards, two Aydin 460-2443-507 circuit cards, and one Aydin 460-2444-502 control card — all visible and installed in the card cage. The chassis, front panel, and rear connectors show typical wear consistent with prior rack-mounted use. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Aydin |
Model: |
3053 |
MPN: |
356-0313-502 |
SKU: |
45080 |
Type: |
Demodulator / Bit Synchronizer |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes 2x 460-2443-505 circuit cards, 2x 460-2443-507 circuit cards, 1x 460-2444-502 control card |
Form Factor: |
Rackmount |
Number of Channels: |
4 |
Interface Type: |
RS-232, RS-449, IEEE-488, TTL |
Connector Type: |
BNC, RS-232 (DB25), RS-449 (DB37), IEEE-488 (GPIB), AC Power |
Application: |
Telemetry / Satellite Data Demodulation / Bit Sync |
Country/Region of Manufacture: |
United States |
Manufacturer Division: |
Aydin Computer and Monitor Division |
CAGE Code: |
20747 |
Included Cards 1: |
Aydin 460-2443-505 Circuit Card (x2) |
Included Cards 2: |
Aydin 460-2443-507 Circuit Card (x2) |
Included Cards 3: |
Aydin 460-2444-502 Control Card (x1) |
Condition Notes: |
Aydin 3053 Demodulator/Bit Sync 356-0313-502 sold as-is for parts or repair. Fan runs on power-up; no front panel display readout. Includes 5 cards (460-2443-505 x2, 460-2443-507 x2, 460-2444-502 x1). Not tested, not guaranteed functional. |
