Varian

Varian VJW1454B Channel Selector Sub-System 115VAC 100VA Microwave Satcom

(No reviews yet) Write a Review
SKU:
38671
MPN:
VJW1454B
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Shipping:
Calculated at Checkout

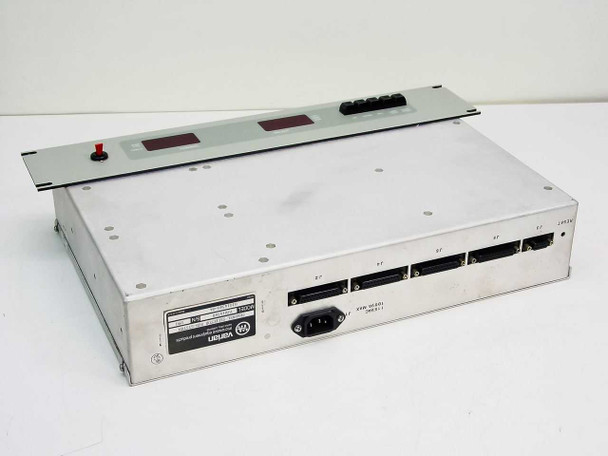

  • Varian VJW1454B Channel Selector Sub-System — angled top-front view showing front panel LED displays, red toggle switch, and multi-port rear connectors
  • Varian VJW1454B Channel Selector Sub-System — angled top-rear view showing enclosure top, front panel controls, and speckled aluminum chassis
  • Varian VJW1454B front panel close-up — PWR FAIL and CABLE indicator labels with CHANNEL LED display window and red toggle switch
  • Varian VJW1454B front panel close-up — SELECT LED display showing C4, LOC/REM/AUX mode indicators, and UP/DOWN/SEL/LAMP TEST/CONT MODE pushbuttons
  • Varian VJW1454B model label — reads Varian Microwave Equipment Products, Santa Clara CA; Model VJW1454B, S/N 090, part number 01014540-04, Made in USA
  • Varian VJW1454B rear panel — RESET button, J3 small multi-pin connector, J5 and J6 larger parallel multi-pin connectors
  • Varian VJW1454B rear panel — IEC C14 AC power inlet (J1) marked 115VAC 100VA MAX, plus J6, J4, and J2 multi-pin parallel connectors
$125.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Varian VJW1454B Channel Selector Sub-System 115VAC 100VA Microwave Satcom

Varian rackmount channel selector and switching subsystem for satellite and microwave communications equipment. Provides local and remote channel selection with status monitoring via front-panel LED indicators.

Specifications & What's Included

  • Model: VJW1454B (MPN: VJW1454B, Secondary: 01014540-04)
  • Power: 115VAC, 100VA maximum, IEC C14 inlet
  • Operating Modes: LOC (Local), REM (Remote), AUX
  • Front Panel: PWR FAIL, CABLE, CHANNEL LED indicators; UP, DOWN, SEL, LAMP TEST, CONT MODE buttons; red toggle switch
  • Rear Connectors: J1 through J6 multi-pin parallel connectors
  • Form Factor: Rackmount or benchtop deployment
  • Unit only—no cables or accessories included

Applications

Channel selector subsystems of this type were used in satellite communications earth stations and microwave relay networks to manage RF channel routing and selection. Commonly integrated into larger satcom ground terminal systems and telecom infrastructure from the 1980s through 2000s. Operated alongside amplifiers, transmitters, and frequency converters in C-band and Ku-band satellite uplink/downlink chains.

Condition: Used
This Varian VJW1454B Channel Selector Sub-System has been inspected and is in good used condition. The chassis and front panel are clean overall, with light speckled marks on the aluminum enclosure consistent with normal storage and handling. The front-panel LED displays, indicator labels, and pushbutton controls appear intact. All rear multi-pin connectors (J2 through J6) and the IEC AC power inlet are present and look undamaged. The unit was pulled from a working environment. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
VJW1454B
MPN:
VJW1454B
Secondary Model:
01014540-04
SKU:
38671
Type:
Channel Selector Sub-System
Power Requirements:
115VAC, 100VA Max
Input Voltage:
115VAC
Power Consumption:
100VA Max
AC Inlet:
IEC C14 (J1)
Rear Connectors:
J2, J3, J4, J5, J6 — multi-pin parallel connectors
Front Panel Indicators:
PWR FAIL, CABLE, CHANNEL LED displays
Front Panel Controls:
UP, DOWN, SEL, LAMP TEST, CONT MODE buttons; red toggle switch
Operating Modes:
LOC (Local), REM (Remote), AUX
Form Factor:
Rackmount / Benchtop
Manufacturer:
Varian Microwave Equipment Products
Country/Region of Manufacture:
United States
Application:
Satellite / Microwave channel selection and switching
Condition:
Used – Inspected
Seller Notes:
Unit only; no cables or accessories included.
Condition Notes:
Varian VJW1454B Channel Selector Sub-System inspected and in good used condition. Light surface marks on aluminum enclosure; front panel controls, LED displays, and rear connectors appear intact. Pulled from a working environment.
View AllClose

Related Products

Related Products

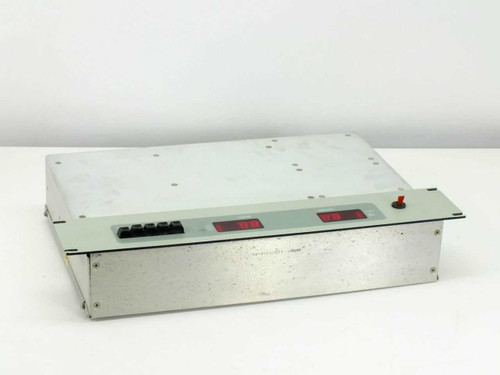

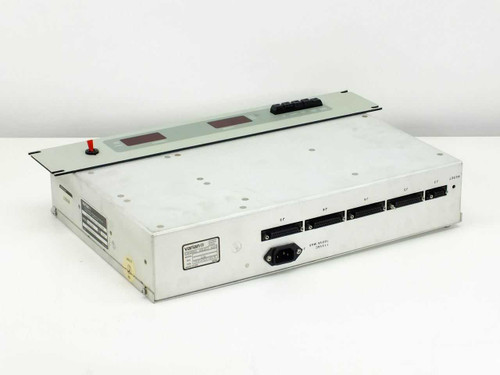

Varian VJW1454C Channel Selector Sub-System 01014540-01/A – front-left angled view showing top cover and front panel with red LED displays and pushbuttons Varian VJW1454C Channel Selector Sub-System – rear-left angled view showing IEC power inlet, D-sub connector, and multiple rear I/O connectors with side label
Add to Cart
Quick view

Varian VJW1454C Channel Selector Sub-System 01014540-01/A Microwave Satcom

Varian

$150.00
Was: $300.00
Varian VJW1454C Channel Selector Sub-System 01014540-01/A Microwave SatcomThe Varian VJW1454C is a Channel Selector Sub-System designed for microwave satellite communications ground station equipment...
45556
SKU:
45556
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Brand:
Varian
Model:
VJW1454C
MPN:
01014540-01/A
Secondary Model:
01014521-00/B
SKU:
45556
Type:
Channel Selector Sub-System
Condition:
Used – Inspected and Tested
Country/Region of Manufacture:
United States
Form Factor:
Benchtop / Rackmount
Front Panel Controls:
UP, DOWN, SEL, LAMP TEST, CONT MODE pushbuttons
Front Panel Displays:
Red 7-segment CHANNEL display; red 7-segment SELECT display
Front Panel Indicators:
PWR FAIL, CABLE LEDs; LOC, REM, AUX status LEDs
Rear Connectors:
IEC AC power inlet (J1); DB25-style connector; J3, J5, J6 multi-pin
Rear Features:
RESET button; multiple D-sub multi-pin I/O connectors (J3, J5, J6)
Application:
Microwave satellite communications channel selection
Compatible With:
Varian microwave equipment / satcom ground station systems
Seller Notes:
Unit only — no additional accessories observed.
Condition Notes:
Varian VJW1454C Channel Selector Sub-System 01014540-01/A has been inspected and is in good used condition. Chassis shows light surface scuffing; front panel controls and displays appear intact. Rear connectors undamaged.

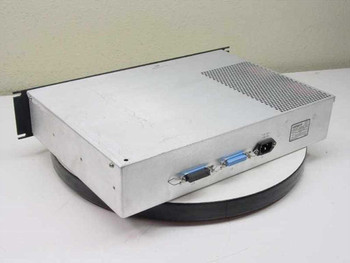

Varian VJW1454R1 Remote Channel Selector front panel with dual red LED displays and power indicator Varian VJW1454R1 Remote Channel Selector rear view showing IEC power inlet and two DB25 connectors
