Varian

Varian VJW1454C Channel Select Sub-System 01014540-01/A Pittman DC Gear Motors

(No reviews yet) Write a Review
SKU:
31542
MPN:
VJW-1454
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout
  • Varian VJW1454C Channel Select Sub-System – front-right three-quarter view showing black cylindrical housing with top-mounted coaxial connectors and red identification label
  • Varian VJW1454C Channel Select Sub-System – left-side three-quarter view showing cylindrical enclosure, latch hardware, and top RF connectors

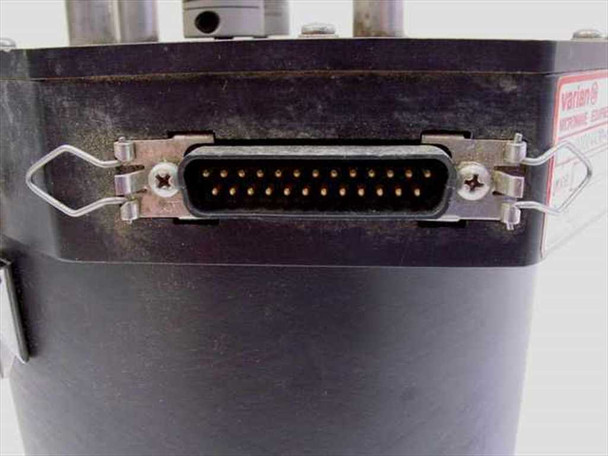

  • Varian VJW1454C Channel Select Sub-System – close-up of 25-pin D-Sub connector on side of housing with jackscrew hardware
  • Varian VJW1454C Channel Select Sub-System – top-down view showing six coaxial connector ports and bolt pattern on black aluminum top plate
  • Varian VJW1454C identification label – Model VJW1454C, S/N 0118, Part 01014540-01/A, Varian Microwave Equipment Products, Santa Clara CA, Made in USA
  • Varian VJW1454C – bottom view with housing removed showing two Pittman 24VDC DC gear motors mounted to base plate
  • Varian VJW1454C – alternate bottom view with two Pittman DC gear motors and red Varian label visible on housing side
  • Pittman GM9413H838 DC gear motor label – 24 VDC, 38.3:1 ratio, Part 01014448 Rev. A, dated 10-20-95, Harleysville PA
  • Varian 01014430-01/J red label on housing side – Varian Microwave Equipment Products, S/N 376, CAGE Code 59782, Made in USA

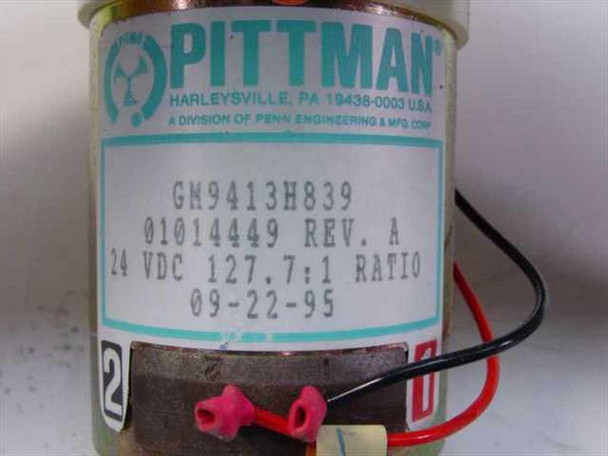

  • Pittman GM9413H839 DC gear motor label – 24 VDC, 127.7:1 ratio, Part 01014449 Rev. A, dated 09-22-95, Harleysville PA
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Varian VJW1454C Channel Select Sub-System 01014540-01/A Pittman DC Gear Motors

Channel select sub-system from Varian's microwave equipment division. Controls RF channel selection in satellite and microwave communication systems using two 24VDC Pittman gear motors with different reduction ratios.

Specifications & What's Included

  • Model: VJW1454C (MPN: 01014540-01/A)
  • Two Pittman 24VDC DC gear motors: GM9413H838 (38.3:1) and GM9413H839 (127.7:1)
  • D-Sub 25-pin connector interface
  • Multiple top-mounted coaxial RF connectors
  • Manufactured in Santa Clara, California

Applications

Channel select sub-systems were used in Varian satellite and microwave communication platforms to mechanically switch between RF channels. The dual motor configuration with different gear ratios provided stepped tuning and selection control. These systems saw use in ground station and terrestrial microwave equipment from the 1980s through 2000s.

Condition: Used
This Varian VJW1454C Channel Select Sub-System has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The black cylindrical housing is intact with normal surface wear; the top-mounted coaxial connectors and 25-pin D-Sub interface connector are present and show no obvious damage. Both Pittman DC gear motors (GM9413H838 and GM9413H839) are present and visually intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
VJW1454C
MPN:
01014540-01/A
Secondary Model:
01014430-01/J
Type:
Channel Select Sub-System
SKU:
31542
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes two Pittman 24VDC DC gear motors: GM9413H838 (38.3:1) and GM9413H839 (127.7:1)
Country/Region of Manufacture:
United States
Motor 1 Model:
Pittman GM9413H838
Motor 1 Part Number:
01014448 Rev. A
Motor 1 Voltage:
24 VDC
Motor 1 Gear Ratio:
38.3:1
Motor 2 Model:
Pittman GM9413H839
Motor 2 Part Number:
01014449 Rev. A
Motor 2 Voltage:
24 VDC
Motor 2 Gear Ratio:
127.7:1
Number of Motors:
2
Motor Voltage:
24 VDC
Motor Type:
DC Gear Motor
Connector Type:
D-Sub (25-pin)
RF Connector Type:
Coaxial (multiple, top-mounted)
Manufacturer Division:
Varian Microwave Equipment Products
Manufacturer Location:
Santa Clara, California
CAGE Code:
59782
Application:
Satellite / Microwave Channel Selection
Compatible With:
Varian microwave satellite communication systems
Condition Notes:
Varian VJW1454C Channel Select Sub-System in good used condition. Pulled from a working environment. Both Pittman 24VDC DC gear motors (GM9413H838 & GM9413H839) present. Normal wear. Please view photos and contact us with questions.
