Varian VZC6961D7G1 TWTA 5.9-6.4 GHz 65 dB Gain Rackmount Satcom Amplifier

(No reviews yet) Write a Review
SKU:
39943
MPN:
VZC6961D7G1
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
32.00 LBS
Shipping:
Calculated at Checkout

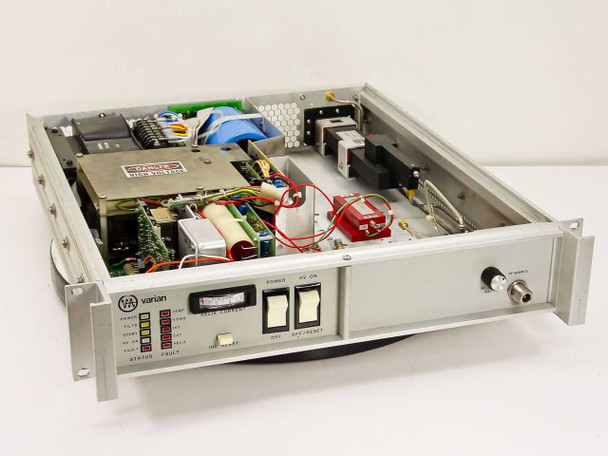

  • Varian VZC6961D7G1 TWTA rackmount amplifier — front panel and open top view showing internal components

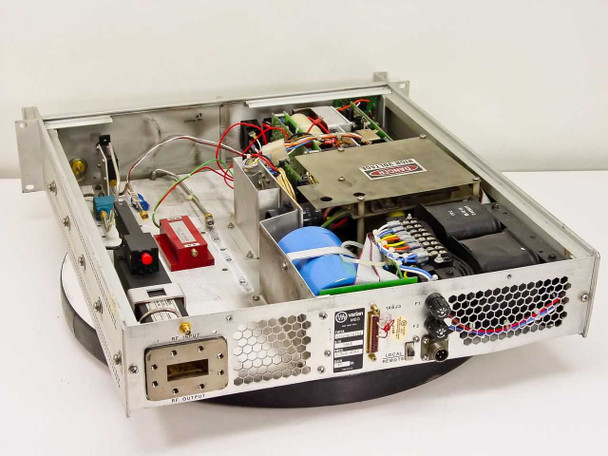

  • Varian VZC6961D7G1 TWTA — rear panel and open interior view showing RF connectors and wiring
  • Varian VZC6961D7G1 rating label showing model number, S/N 1664, frequency 5.9–6.4 GHz, gain 65 dB, Made in USA
  • Varian VZC6961D7G1 front panel close-up showing status/fault LED indicators, helix current meter, Power and HV ON switches
  • Varian VZC6961D7G1 side panel showing RF Gain Adj knob and RF Sample BNC port
  • Varian VZC6961D7G1 interior close-up showing control PCB, transformer, and wiring harness
  • Varian VZC6961D7G1 full interior view showing TWT tube, high voltage module, blue capacitor, PCB, and DANGER HIGH VOLTAGE label
  • Internal RF module P/N 113798-03 (red anodized housing) with RF IN and RF OUT SMA connectors visible
  • Internal TWT module label — Aercon Industries Inc., Model No. 129511, S/N 392, Sacramento CA, Made in USA

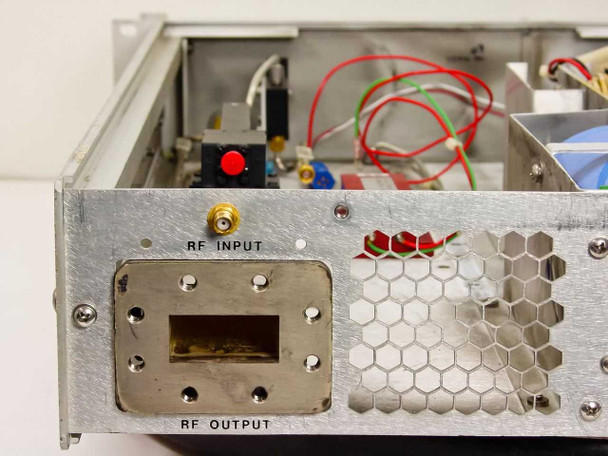

  • Varian VZC6961D7G1 rear panel showing SMA RF INPUT connector, waveguide RF OUTPUT port, and ventilation grille
  • Varian VZC6961D7G1 5.9 - 6.4 GHz 65db Rackmount TWTA for Parts - AS IS
$450.00
Was: $900.00
Current Stock: 1

Sold Out

Description

Varian VZC6961D7G1 TWTA 5.9-6.4 GHz 65 dB Gain Rackmount Satcom Amplifier

Traveling Wave Tube Amplifier (TWTA) designed for C-Band satellite uplink and ground station applications. Provides 65 dB gain across the 5.9–6.4 GHz frequency range in a rackmount form factor.

Specifications & What's Included

  • Frequency Range: 5.9–6.4 GHz (C-Band)
  • Gain: 65 dB
  • Internal TWT Module: Aercon Industries Model 129511
  • RF Input: SMA connector (rear panel)
  • RF Output: Waveguide connector (rear panel)
  • RF Gain Adjustment: Front-panel knob
  • Front Panel Controls: Power switch, HV ON/OFF-RESET, IND RESET
  • Indicators: Power, Filter, Standby, HV ON, Fault, Temp, VSWR, INT, EXT, Helix
  • Manufactured in the United States

Applications

TWTAs of this type are used in satellite communication ground stations for uplink signal amplification. The C-Band 5.9–6.4 GHz range covers standard fixed satellite service (FSS) uplink frequencies. This amplifier was deployed in commercial and government satcom earth stations where high gain and wide bandwidth were required for transmission to orbiting satellites.

Condition: For Parts or Not Working
This Varian VZC6961D7G1 Traveling Wave Tube Amplifier (TWTA) has been inspected and appears to be in good physical condition, but it has not been tested at our facility. We are selling it AS-IS for parts or repair with no guarantee of functionality. The top cover is removed, exposing the internal components, which appear intact — the TWT tube, high-voltage module, internal RF module (P/N 113798-03), and PCB assemblies are all present and show no obvious physical damage. The front panel indicators, switches, helix current meter, and RF gain adjustment knob are all present. The rear waveguide RF output and SMA RF input connectors are visible and appear undamaged. Normal surface wear is present on the chassis exterior. Please view our photo set and contact us if you have any questions.
