Varian VZC6961D7W1 C-Band TWT Amplifier TWTA 5.9-6.4 GHz 65 dB Gain Rackmount

(No reviews yet) Write a Review
SKU:
31387
MPN:
VZC-6969B1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
48.00 LBS
Shipping:
Calculated at Checkout
  • Varian VZC6961D7W1 C-Band TWT Amplifier — front panel view showing STATUS and FAULT LED indicators, HELIX CURRENT meter, POWER and HV ON switches, rackmount chassis
  • Varian TWTA VZC6961D7W1 front panel close-up showing Varian logo, STATUS/FAULT LED array, HELIX CURRENT analog meter, IND RESET button, POWER and HV ON rocker switches

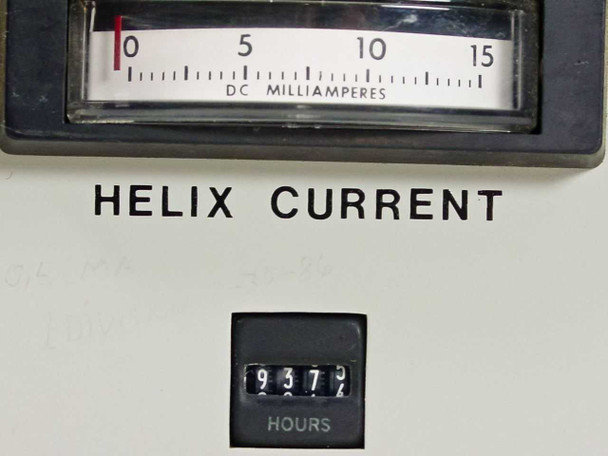

  • Close-up of Varian TWTA helix current meter (0–15 DC milliamperes scale) and hours counter reading 937 hours

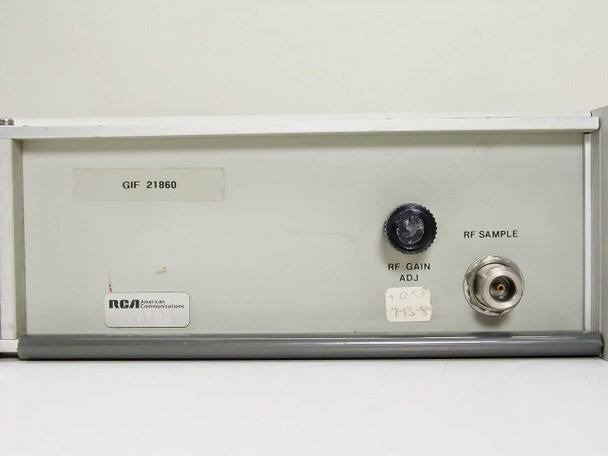

  • Varian VZC6961D7W1 side panel showing GIF 21860 asset tag label, RF GAIN ADJ trimmer, RF SAMPLE BNC connector, and RCA American Communications badge
  • Varian VZC6961D7W1 rear panel overview showing waveguide RF output port, cooling vents, multi-pin D-Sub connector, and HIGH VOLTAGE warning label
  • Varian TWTA rear panel close-up showing RF INPUT waveguide port, RF OUTPUT waveguide port, Varian MED rating label (TWTA VZC6961D7W1, S/N 1755, FREQ 5.9–6.4 GHz, GAIN 65 dB), and D-Sub interface connector
  • Varian TWTA rear panel close-up showing 1A6J3 connector label, F1 and F2 fuse holders, J1 power connector, LOCAL/REMOTE switch, and D-Sub multi-pin connector
  • Varian MED rating plate close-up: TWTA model VZC6961D7W1, S/N 1755, FREQ 5.9–6.4 GHz, GAIN 65 dB, Code Ident 59782, Made in USA
  • Varian VZC6961D7W1 interior view with top cover removed — showing TWT tube assembly, high-voltage power supply, cooling fans, transformer, capacitors, and PCB assemblies

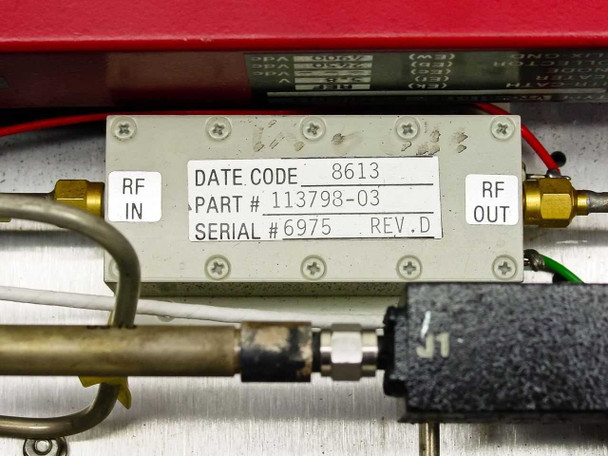

  • Interior TWT module label close-up: DATE CODE 8613, PART # 113798-03, SERIAL # 6975, REV. D — with RF IN and RF OUT connections visible
  • Varian 5.9 - 6.4 GHz C-Band Microwave TWT Amplifier VZC-6969B1 - As Is
  • Varian 5.9 - 6.4 GHz C-Band Microwave TWT Amplifier VZC-6969B1 - As Is
  • Varian 5.9 - 6.4 GHz C-Band Microwave TWT Amplifier VZC-6969B1 - As Is
$500.00
Was: $1,000.00
Current Stock: 2

Sold Out

Description

Varian VZC6961D7W1 C-Band TWT Amplifier TWTA 5.9-6.4 GHz 65 dB Gain Rackmount

C-Band traveling wave tube amplifier (TWTA) designed for 5.9–6.4 GHz operation. Provides 65 dB gain and mounts in standard 19-inch rack enclosures. Features front-panel power and HV controls with status and fault indicators.

Specifications & What's Included

  • Frequency Range: 5.9–6.4 GHz (C-Band)
  • Gain: 65 dB
  • Form Factor: Rackmount (19-inch)
  • Internal TWT: 113798-03 (Rev. D, date code 8613)
  • Meter Reading: 937 hours
  • RF Connectors: Waveguide/coax input and output (rear panel)
  • Control Interface: D-Sub multi-pin connector with local/remote switch
  • Manufactured: USA

Applications

C-Band TWTAs are used in satellite communications, telecommunications ground stations, and broadcast uplink systems. This model supports transmit chain applications requiring high-power amplification across the 5.9–6.4 GHz band. Commonly integrated into earth station and telecom infrastructure requiring coherent or non-coherent signal amplification.

Condition: For Parts or Not Working
This Varian VZC6961D7W1 C-Band TWT Amplifier does not power on and is being sold as-is for parts or repair. The unit has not been tested and no functionality is guaranteed. The chassis is complete and intact, and the internal TWT assembly, power supply components, PCBs, and front-panel meter assembly all appear to be present based on photos. The hours counter reads approximately 937 hours. The front panel shows general cosmetic wear consistent with lab/rack use. Please view our full photo set, including the interior shots, before purchasing. Contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
