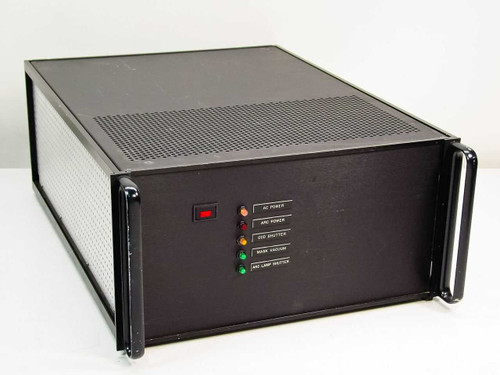

This is a custom-built rackmount enclosure designed as a shutter and relay I/O control system, most likely for a photolithography or mask aligner instrument. The front panel carries five labeled status indicators — AC Power, ARC Power, CCD Shutter, Mask Vacuum, and ARC Lamp Shutter — and a main power rocker switch, consistent with control systems used to sequence arc lamp, shutter, and vacuum functions in contact or proximity mask aligners. The enclosure is approximately 4U rackmount size and is constructed in a steel chassis with rack ears. It is being sold AS-IS for parts or repair and has not been tested at our facility.

Specifications & What's Included

• Enclosure: steel rackmount chassis, approximately 4U, with rack ears
• Internal PSU 1: Astec PS ACV 5N9-1 (5V output)
• Internal PSU 2: Astec PS ACV 12N5 (12V output)
• Internal transformer: large toroidal/laminated transformer (yellow-wrapped)
• EMI Filter: Corcom 10VK7 — 10A, 120/250V, 50-60Hz, UL and CSA listed, Made in Mexico

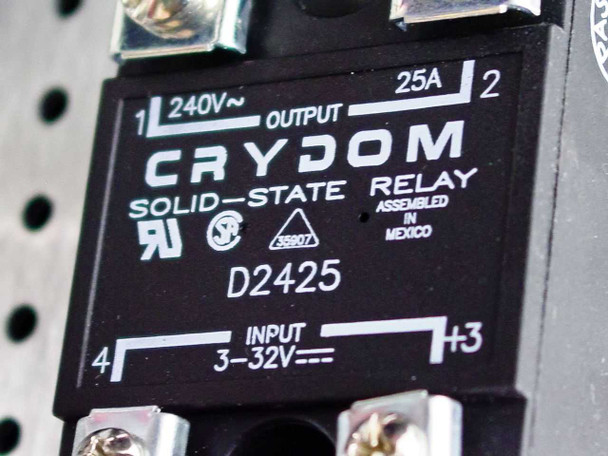

• Solid State Relay: Crydom D2425

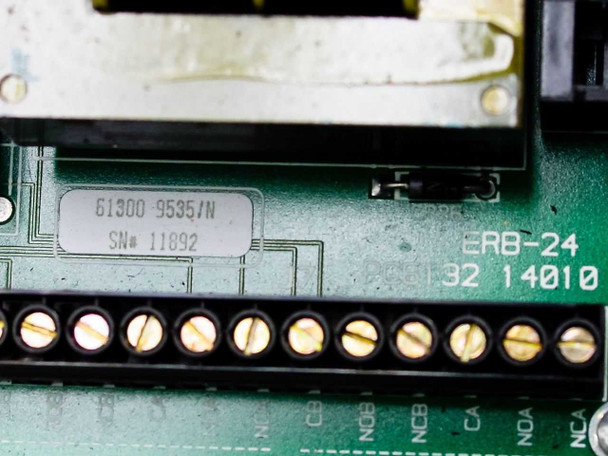

• Relay I/O Board: PC 6222 Rev C — labeled STA-U, 9627/D 25249, copyright 1984

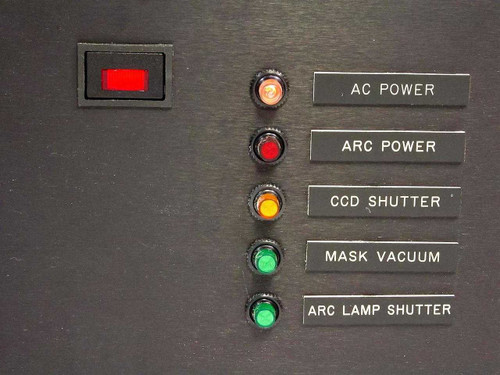

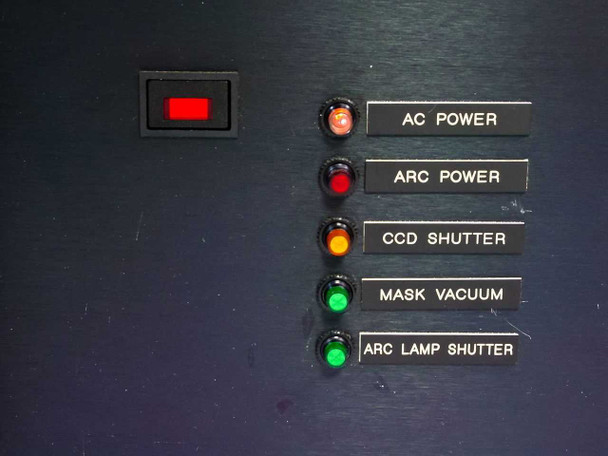

• Front panel indicators (5): AC Power, ARC Power, CCD Shutter, Mask Vacuum, ARC Lamp Shutter
• Front panel: illuminated rocker power switch

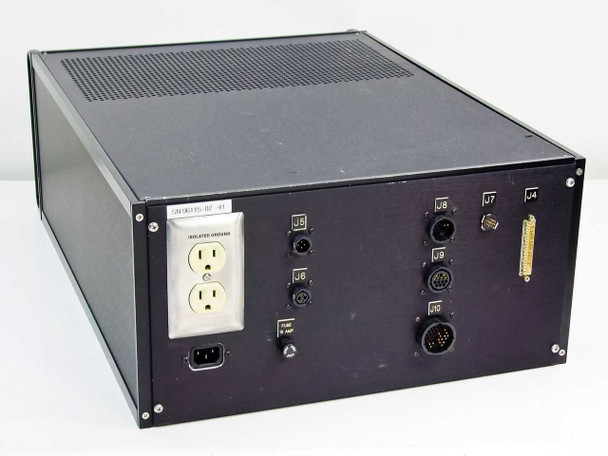

• Rear panel AC outlet: isolated ground duplex outlet
• Rear panel AC input: IEC C14 inlet
• Rear panel fuse: 15 Amp

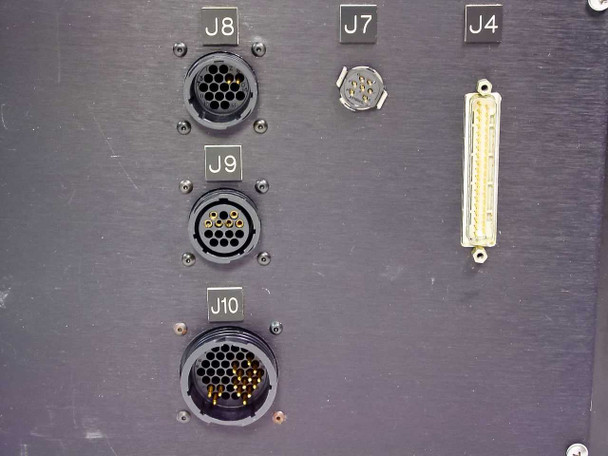

• Rear connectors: J5, J6 (XLR-style circular); J7, J8, J9, J10 (large mil-spec circular multi-pin); J4 (gold D-sub connector)

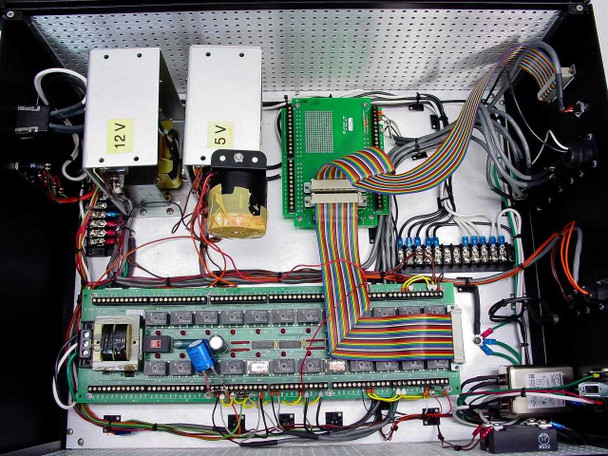

• Internal wiring: rainbow ribbon cables connecting relay I/O board to terminal blocks and output connectors
• Condition: AS-IS, for parts or repair — not tested, no functionality guaranteed

Applications
