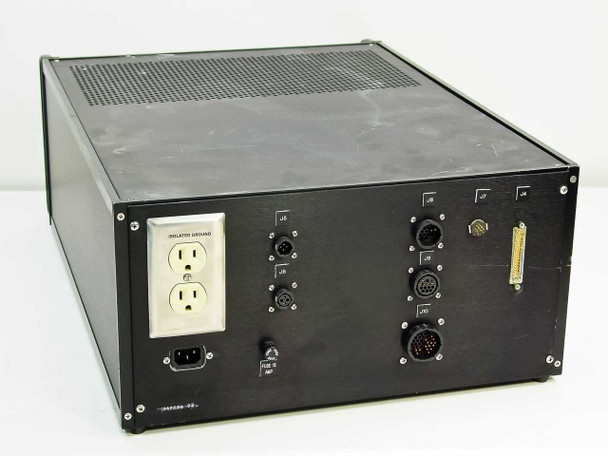

This is a Keithley 61300 relay I/O expansion system housed in a black rackmount enclosure. It is built around the ERB-24 relay I/O board (assembly 9540/P), which provides 24 relay-switched I/O channels for digital control and switching applications. The enclosure integrates dual Astec power supplies, a Crydom solid-state relay, a Corcom EMI filter, and an interface/breakout board (62200, 9535/C), making it a self-contained relay control unit ready for system integration.

Specifications & What's Included

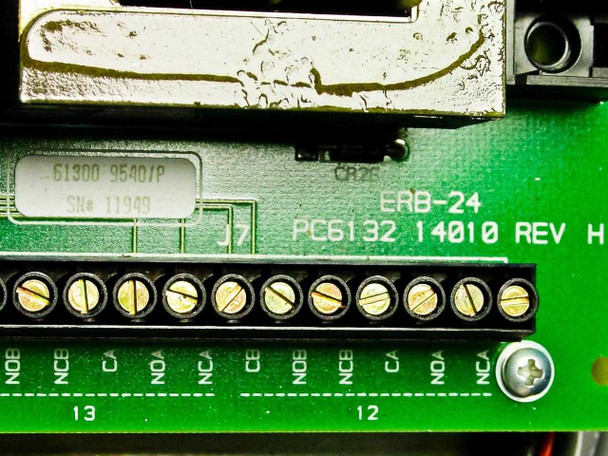

• Relay I/O Board: ERB-24, assembly 9540/P — 24 relay channels
• Interface Board: 62200, 9535/C (PC 6222 Rev C, copyright 1984)
• Power Supply 1: Astec ACV5N9-1 — Output: 5V DC / 9.0A
• Power Supply 2: Astec ACV12N5 — Output: 12V DC / 5.1A
• EMI Filter: Corcom 10VK7 — 10A, 120/250V, 50–60Hz, UL and CSA listed
• Solid-State Relay: Crydom D2425 — 240V AC output, 25A, Input 3–32V DC, UL/CSA listed

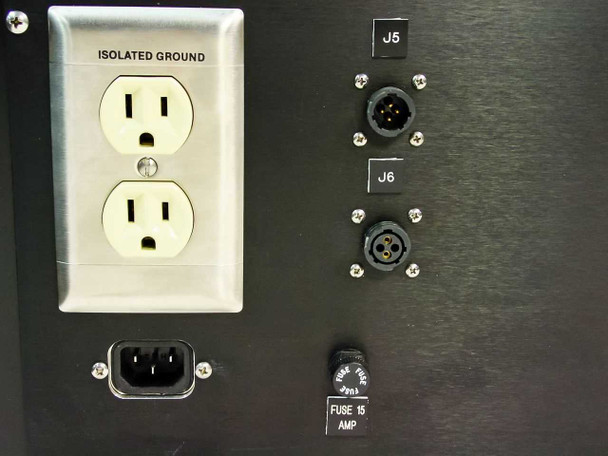

• Power Input: IEC C14 inlet with 15A fuse
• Rear Panel Outlets: Isolated ground duplex AC receptacle

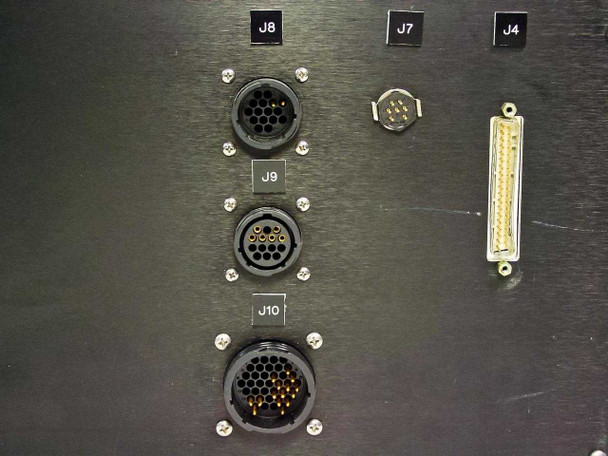

• Rear Connectors: J5 (4-pin XLR male), J6 (3-pin XLR female), J4 (50-pin ribbon), J7, J8, J9, J10 (multi-pin circular connectors)
• Front Panel Indicators: Red power switch; LEDs for AC Power, Arc Power, CCD Shutter, Mask Vacuum, and Arc Lamp Shutter
• Form Factor: Rackmount enclosure with front rack ears
• Internal wiring harness and ribbon cable interconnects included

Applications

The Keithley 61300 relay I/O system is designed to expand the switching and digital control capabilities of Keithley data acquisition and control platforms. With 24 relay channels, it handles automated switching of signals, power lines, or process outputs under computer or instrument control. The front-panel status indicators — CCD Shutter, Mask Vacuum, Arc Power, and Arc Lamp Shutter — point strongly to use in photolithography or optical alignment systems, where precise sequenced control of shutters, vacuum, and arc lamp sources is required. This type of relay I/O controller was commonly integrated into semiconductor wafer processing, mask aligner, or contact aligner setups in research and production environments during the 1980s and 1990s, where it served as the switching backbone between a host controller and the various electromechanical subsystems of the tool. The included Crydom D2425 solid-state relay adds high-current AC switching capability (up to 25A at 240V) to the system's relay array. The Corcom EMI filter on the AC input provides line-side noise suppression appropriate for sensitive lab and cleanroom environments.
