Keithley ERB-24 Relay I/O Rackmount Enclosure 61300 PC6132 Crydom D2425 SSR

(No reviews yet) Write a Review
SKU:
40901
MPN:
61300 9504/M
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
43.00 LBS
Shipping:
Calculated at Checkout

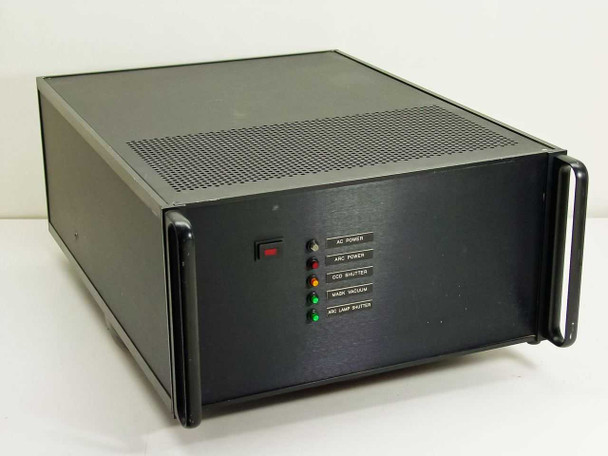

  • Keithley ERB-24 relay I/O rackmount enclosure front panel, three-quarter view showing power switch and status LEDs

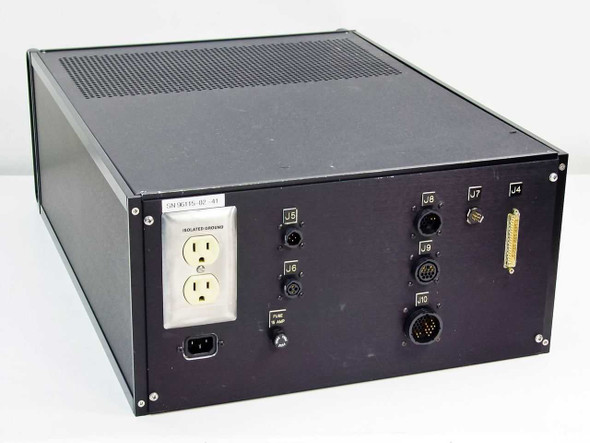

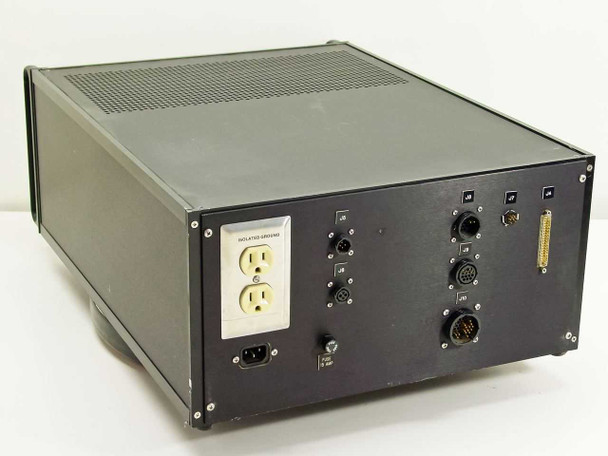

  • Keithley ERB-24 enclosure rear panel showing IEC AC inlet, isolated ground outlet, XLR connectors J5 and J6, and multi-pin connectors
  • Close-up of front panel indicator labels: AC Power, Arc Power, CCD Shutter, Mask Vacuum, Arc Lamp Shutter with colored LEDs

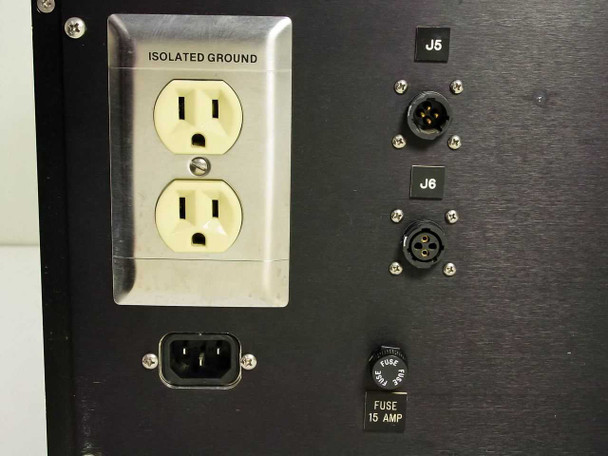

  • Rear panel detail showing isolated ground duplex outlet, IEC inlet, J5 and J6 XLR connectors, and 15A fuse holder

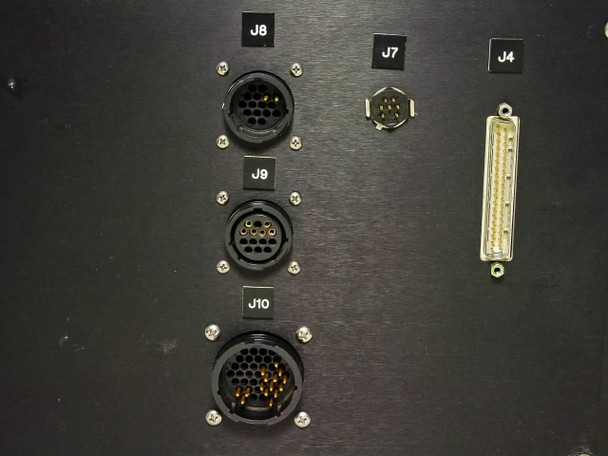

  • Rear panel detail showing circular multi-pin connectors J8, J9, J10, mini connector J7, and 50-pin SCSI-style connector J4
  • Close-up of ERB-24 relay board showing label 61300 9504/M, SN 11395, and PC6132 14010 REV G silkscreen with terminal strip
  • Interior top-down view showing dual Astec power supplies (5V and 12V), ERB-24 relay board, 62200 board, ribbon cables, and wiring

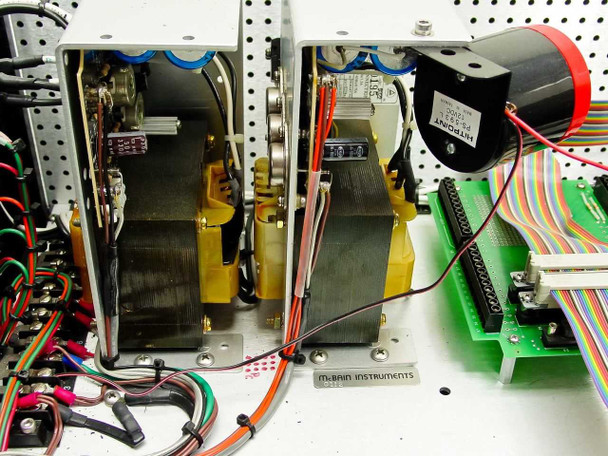

  • Interior detail showing two Astec power supply modules labeled 12V and 5V, McBain Instruments labeling, and ribbon cable connections
  • Close-up of secondary board PC6222 REV C showing label 62200 9502/C, SN 23370, copyright 1984
  • Close-up of Crydom D2425 solid-state relay showing 240V output, 25A rating, 3-32V DC input, assembled in Mexico
  • Keithley Board ERB-24 Relay I/O in Rackmount Enclosure 61300 9504/M
$200.00
Was: $400.00
Current Stock: 1

Sold Out

Description

Keithley ERB-24 Relay I/O Rackmount Enclosure 61300 PC6132 Crydom D2425 SSR

Rackmount relay control enclosure designed for industrial automation and test equipment applications. Houses relay switching, solid-state relay control, and power distribution in a single chassis.

Specifications & What's Included

  • Model: ERB-24 (MPN 61300 9504/M)
  • Crydom D2425 solid-state relay: 240V output, 25A, 3-32V DC input
  • Dual Astec power supplies: 5V/9.0A and 12V/5.1A outputs
  • Corcom 10VK7 EMI filter
  • 50-pin SCSI and multipin circular connectors (J4-J10)
  • Front panel indicators: AC Power, Arc Power, CCD Shutter, Mask Vacuum, Arc Lamp Shutter
  • AC mains input with 15A fuse and isolated ground outlet

Applications

Relay I/O enclosures of this type are used in semiconductor processing equipment, laboratory automation systems, and industrial test setups requiring distributed relay switching and power management. The ERB-24 was integrated into larger manufacturing and inspection systems where remote relay control and signal isolation were necessary. Typical applications include mask alignment systems, arc lamp control, and vacuum pump management in cleanroom manufacturing environments.

Condition: Used
This Keithley ERB-24 Relay I/O Rackmount Enclosure (board 61300) has been inspected and appears to be in good used condition. The enclosure is intact with no significant damage to the chassis or front panel. Interior components — including the dual Astec power supplies (5V and 12V), ERB-24 relay board (PC6132 14010 REV G), secondary board 62200 9502/C, Corcom EMI filter 10VK7, and Crydom D2425 solid-state relay — are all present and visually intact. Wiring and ribbon cables appear undamaged. The unit shows typical bench and handling wear consistent with its age and use in an instrumentation environment. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Keithley
Model:
ERB-24
MPN:
61300 9504/M
Secondary Model:
PC6132 14010 REV G
Type:
Relay I/O Rackmount Enclosure
SKU:
40901
Form Factor:
Rackmount Enclosure
Condition:
Used – Inspected
Board Part Number:
61300 9504/M
Secondary Board:
62200 9502/C (PC6222 REV C, copyright 1984)
Solid State Relay:
Crydom D2425 – 240V Output, 25A, 3-32V DC Input
Power Supply 1:
Astec ACV5N9-1 – 5V / 9.0A output
Power Supply 2:
Astec ACV12N5 – 12V / 5.1A output
EMI Filter:
Corcom 10VK7
Front Panel Indicators:
AC Power, Arc Power, CCD Shutter, Mask Vacuum, Arc Lamp Shutter
Power Input:
AC mains via IEC inlet; 15A fuse; isolated ground outlet
Rear Connectors:
J4 (50-pin SCSI-style), J5, J6 (XLR), J7, J8, J9, J10 (circular multipin)
Fuse Rating:
15 Amp
Seller Notes:
Includes ERB-24 relay board, 62200 board, Astec dual PSUs, Crydom SSR, Corcom EMI filter
Country/Region of Manufacture:
United States
Condition Notes:
Keithley ERB-24 Relay I/O Rackmount Enclosure (61300) inspected and in good used condition. All internal components present — dual Astec PSUs, ERB-24 board, Crydom D2425 SSR, Corcom EMI filter. Normal wear for age.
View AllClose

Related Products

Related Products

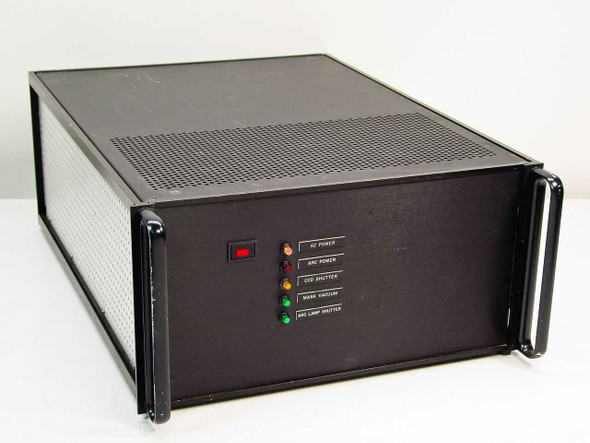

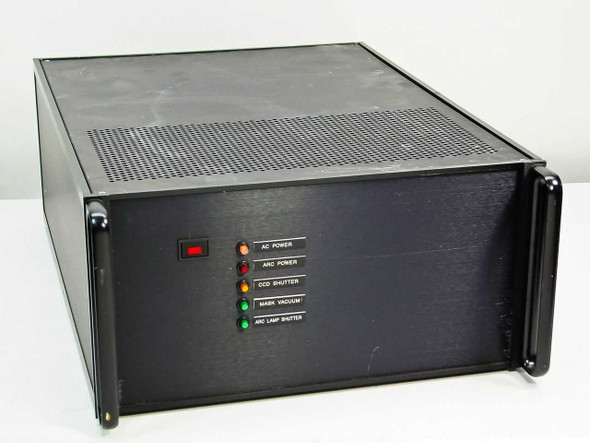

Keithley 61300 ERB-24 relay board rackmount enclosure — front panel with indicator lights and power switch Keithley 61300 ERB-24 front panel close-up showing AC Power, Arc Power, CCD Shutter, Mask Vacuum, and Arc Lamp Shutter LED indicators
