Load Cell Transducer TI82-1K-10P1 1000 lb Force Sensor w/ Cable USA Made

Load Cell Transducer TI82-1K-10P1 1000 lb Force Sensor w/ Cable USA Made

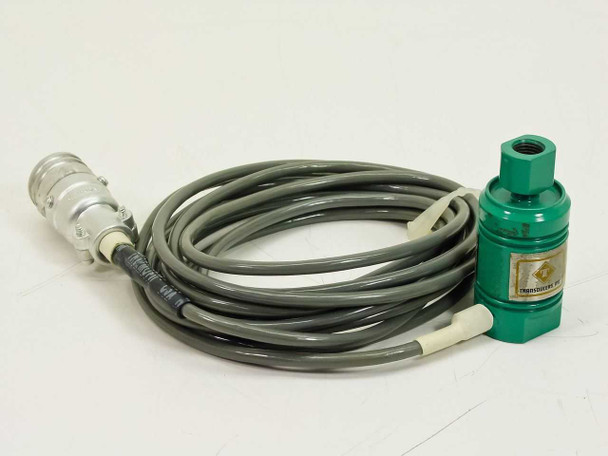

The TI82-1K-10P1 is a cylindrical inline load cell transducer rated for 1000 lb (1K lb) force measurement, with an attached multi-conductor cable terminating in a circular multi-pin military-style connector. The unit is manufactured in the USA as indicated by the label on the body. Load cells of this type convert applied mechanical force into an electrical signal (typically a millivolt bridge output) for use with compatible readout instruments, data acquisition systems, or test stands.

Specifications & What's Included

• Part Number: TI82-1K-10P1
• Serial Number: 73186
• Type: Inline / cylindrical load cell force transducer
• Rated Capacity: 1000 lb (1K lb)
• Body: Green anodized cylindrical housing with threaded port (NPT-style top fitting visible)
• Country of Manufacture: United States (label confirmed)
• Cable: Multi-conductor gray cable, approximately 10–12 ft, attached to transducer body
• Connector: Circular multi-pin military-style male connector (10-pin visible in photos)
• Condition: AS-IS — sold for parts or repair; not tested

Applications

Load cells of this type are used in industrial and laboratory force measurement applications including tensile and compression testing, materials testing, process monitoring, and machine load verification. Inline cylindrical load cells like the TI82-1K-10P1 are typically installed in-line with a cable, rod, or fixture to measure pulling or pushing force in real time. They connect to strain gauge amplifiers, data acquisition systems, or dedicated load cell readout displays via their multi-pin connector. This style of transducer was commonly found in manufacturing test equipment, aerospace ground support, and mechanical test rigs from the 1980s through 2000s. Buyers sourcing this unit for parts or repair may find it useful as a replacement body, a connector/cable assembly, or a calibration reference platform.
