Description
Microdyne 1111-VT(70)(D)10 RF Tuner 52-88 MHz For Parts Crystal Select
VHF RF tuner module for broadcast and telecom applications. Covers 52-88 MHz band with crystal select, local, and remote tuning modes.
Specifications & What's Included
- Model: 1111-VT(70)(D)10 | Frequency Range: 52-88 MHz (VHF)
- Tuning Mode: Crystal Select / Local / Remote
- Connectors: D-Sub (P1), BNC (J1)
- Form Factor: Rack-mount enclosed chassis
- Hardware Revision: REV M62
- Manufactured: United States
Applications
RF tuners of this type are used in broadcast distribution, cable headend equipment, and telecom receiver systems. The 52-88 MHz band covers FM radio and low-band VHF frequencies. Microdyne tuner modules were standard components in professional broadcast and CATV infrastructure.
Condition: For Parts or Not Working

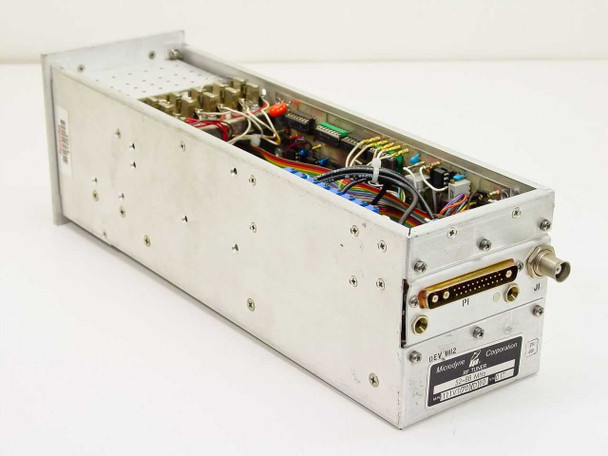

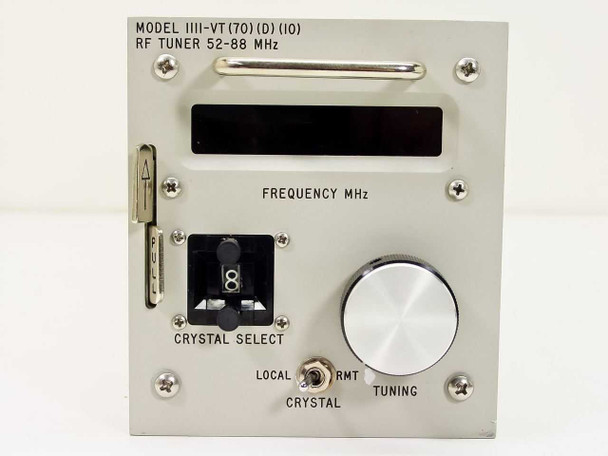

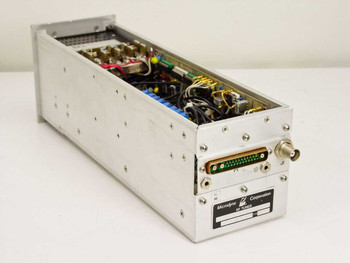

This Microdyne 1111-VT(70)(D)10 RF Tuner (52-88 MHz) is being sold as-is for parts or repair and is not guaranteed functional. The top cover has been removed and the internal PCB is exposed, as shown in the photos. The unit may be useful for parts, board-level repair, or as a reference for a working unit. It has not been tested at our facility. The chassis and front panel controls — including the Crystal Select switch, Local/RMT switch, tuning knob, and frequency display — appear intact. The rear D-sub (P1) and BNC (J1) connectors appear undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Microdyne 1111-VT(70)(D)10 RF Tuner (52-88 MHz) is being sold as-is for parts or repair and is not guaranteed functional. The top cover has been removed and the internal PCB is exposed, as shown in the photos. The unit may be useful for parts, board-level repair, or as a reference for a working unit. It has not been tested at our facility. The chassis and front panel controls — including the Crystal Select switch, Local/RMT switch, tuning knob, and frequency display — appear intact. The rear D-sub (P1) and BNC (J1) connectors appear undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Microdyne |
Model: |
1111-VT(70)(D)10 |
MPN: |
111VT(70)(D)10 |
Type: |
RF Tuner Module |
SKU: |
39336 |
Frequency Range: |
52-88 MHz |
Frequency Band: |
VHF |
Tuning Mode: |
Crystal Select / Local / Remote |
Connector Type: |
D-Sub (P1), BNC (J1) |
Form Factor: |
Rack-mount module / enclosed chassis |
Hardware Revision: |
REV M62 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold for parts or repair. Top cover removed; internal PCB visible. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Microdyne 1111-VT(70)(D)10 RF Tuner 52-88 MHz sold as-is for parts or repair. Not tested; top cover removed and internal PCB exposed. Front panel controls and rear connectors appear intact. No functionality guaranteed. |
