Microdyne

Microdyne 1111-VT(70)(D)(10) RF Tuner 52-88 MHz Crystal Select For Parts

(No reviews yet) Write a Review
SKU:
39447
MPN:
1111-VT
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout

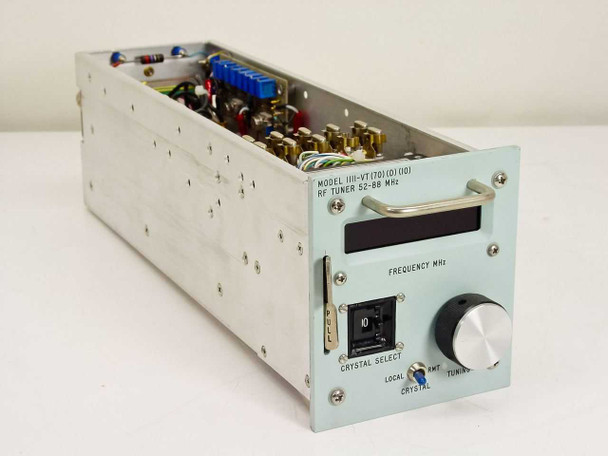

  • Microdyne 1111-VT RF Tuner 52-88 MHz – right-side three-quarter view showing open top, front panel label, crystal select dial, and tuning knob
  • Microdyne 1111-VT RF Tuner – left-side three-quarter rear view showing open interior PCB, rear D-sub P1 connector, BNC J1 connector, and Microdyne Corporation label

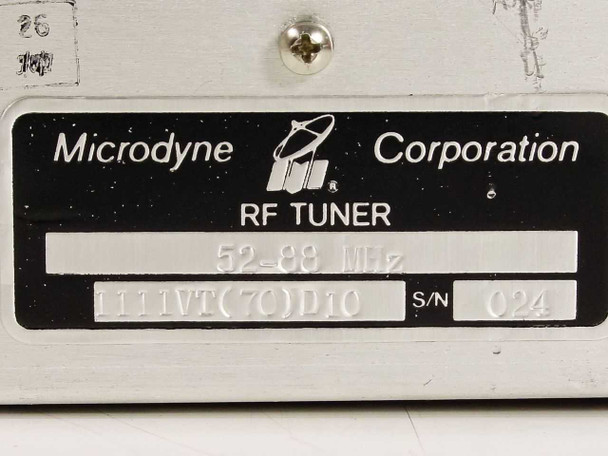

  • Microdyne Corporation RF Tuner label closeup – model 1111VT(70)D10, 52-88 MHz, serial number 024
  • Microdyne 1111-VT RF Tuner – rear panel view showing D-sub multi-pin P1 connector and BNC J1 connector with Microdyne label below

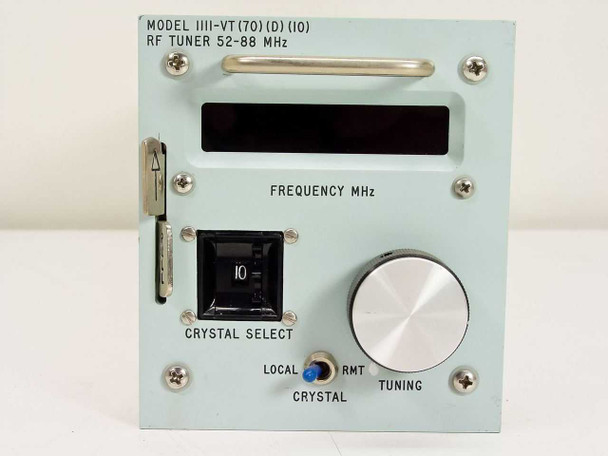

  • Microdyne 1111-VT front panel closeup – model label reading MODEL 1111-VT(70)(D)(10) RF TUNER 52-88 MHz, frequency display window, crystal select dial showing position 10, local/RMT switch, and tuning knob
  • Microdyne 1111-VT front panel model label closeup – MODEL 1111-VT(70)(D)(10) RF TUNER 52-88 MHz engraved/printed on panel
  • Amtex Research Inc. (ARI) internal board label – Model: Microdyne 303-645, S/N 1193-3, Gaithersburg MD USA
$225.00
Was: $450.00
Current Stock: 1

Sold Out

Description

Microdyne 1111-VT(70)(D)(10) RF Tuner 52-88 MHz Crystal Select For Parts

VHF RF tuner module designed for telecom and broadcast applications. Operates across the 52-88 MHz band with crystal select tuning and remote control capability via D-Sub and BNC rear connectors.

Specifications & What's Included

  • Frequency Range: 52-88 MHz (VHF)
  • Tuning Method: Crystal Select with Local/Remote switch
  • Connectors: D-Sub multi-pin (P1) and BNC (J1) rear panel
  • Front Panel: Frequency display window, tuning knob, crystal select dial
  • Internal Component: Amtex Research Inc. (ARI) board Model 303-645
  • Form Factor: Rack/Chassis module
  • Manufacturer: Microdyne Corporation, USA

Applications

RF tuners of this type were used in telecom infrastructure, cable headend systems, and broadcast receive equipment during the analog era. The 52-88 MHz band covers VHF television and FM radio frequencies. Typically integrated into larger receiver or distribution systems requiring selectable channel tuning and remote switching capability.

Condition: For Parts or Not Working
This Microdyne 1111-VT(70)(D)(10) RF Tuner is being sold as-is for parts or repair. The unit is not guaranteed to be functional and has not been tested at our facility. It shows the expected wear of older surplus electronics — the aluminum chassis has some minor surface marks and the interior PCB assembly is exposed (the top cover is open or missing). The rear panel has a D-sub multi-pin connector (P1) and a BNC connector (J1); both appear intact in the photos. An internal Amtex Research Inc. (ARI) board marked Microdyne 303-645 is present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Microdyne Corporation
Model:
1111-VT(70)(D)(10)
MPN:
1111VT(70)D10
Secondary Model:
303-645
SKU:
39447
Type:
VHF RF Tuner Module
Frequency Range:
52-88 MHz
Tuning Method:
Crystal Select / Remote Tuning
Interface Type:
D-Sub (P1), BNC (J1)
Connector 1:
D-Sub multi-pin (P1) — rear panel
Connector 2:
BNC (J1) — rear panel
Front Panel Controls:
Crystal Select dial, Local/RMT switch, Tuning knob
Front Panel Display:
Frequency MHz display window
Form Factor:
Rack/Chassis Module
Associated Component:
Amtex Research Inc. (ARI) board, Model Microdyne 303-645
Country/Region of Manufacture:
United States
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is for parts or repair. Includes internal ARI board (Microdyne 303-645).
Condition Notes:
Microdyne 1111-VT(70)(D)(10) RF Tuner sold as-is for parts or repair. Not tested, no functionality guarantee. Minor surface wear. Internal ARI board (Microdyne 303-645) present. D-sub and BNC connectors appear intact.
View AllClose

Related Products

Related Products

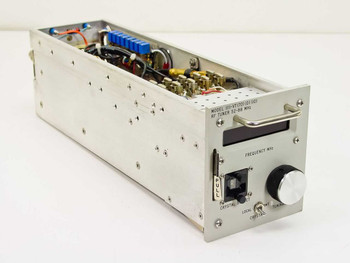

Microdyne 1111-VT RF Tuner 52-88 MHz – three-quarter front view with top cover removed showing internal PCB and components Microdyne 1111-VT RF Tuner – rear three-quarter view showing D-sub P1 connector, BNC J1 connector, and internal wiring with REV M62 label
Add to Cart
Quick view

Microdyne 1111-VT(70)(D)10 RF Tuner 52-88 MHz For Parts Crystal Select

Microdyne

$150.00
Was: $300.00
Microdyne 1111-VT(70)(D)10 RF Tuner 52-88 MHz For Parts Crystal SelectVHF RF tuner module for broadcast and telecom applications. Covers 52-88 MHz band with crystal select, local, and remote tuning...
39336
SKU:
39336
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Brand:
Microdyne
Model:
1111-VT(70)(D)10
MPN:
111VT(70)(D)10
Type:
RF Tuner Module
SKU:
39336
Frequency Range:
52-88 MHz
Frequency Band:
VHF
Tuning Mode:
Crystal Select / Local / Remote
Connector Type:
D-Sub (P1), BNC (J1)
Form Factor:
Rack-mount module / enclosed chassis
Hardware Revision:
REV M62
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold for parts or repair. Top cover removed; internal PCB visible.
Country/Region of Manufacture:
United States
Condition Notes:
Microdyne 1111-VT(70)(D)10 RF Tuner 52-88 MHz sold as-is for parts or repair. Not tested; top cover removed and internal PCB exposed. Front panel controls and rear connectors appear intact. No functionality guaranteed.

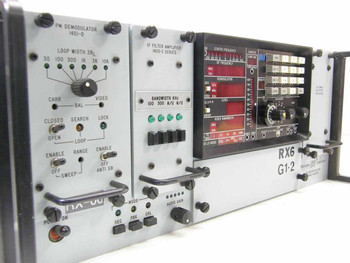

Microdyne 1400-MR Telemetry Receiver front panel three-quarter view showing plug-in modules and front controls Microdyne 1400-MR front panel close-up showing 1420-I IF Filter Amplifier plug-in (100 kHz bandwidth) and power/mode controls
