Electronic Test

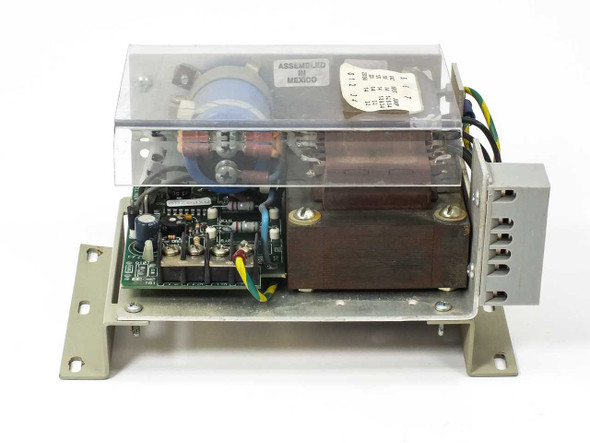

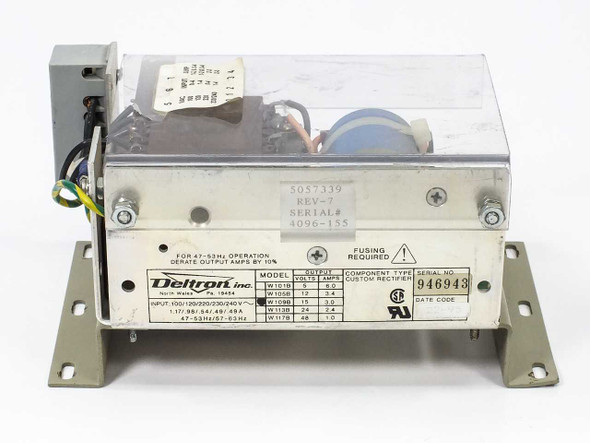

Deltron W109B 15VDC 3A Single Output Open Frame Linear Power Supply 100-240VAC

SKU:

50061

Availability:

Usually ships within 1-2 business days.

Weight:

8.00 LBS

Brand:

Deltron

Model:

W109B

MPN:

W109B

Type:

Open Frame Linear Power Supply

SKU:

50061

Series:

W Series (World Series Linears)

Output Voltage:

15V DC

Output Current:

3.0A

Number of Outputs:

1

Input Voltage:

100/120/220/230/240V AC (universal)

Input Current:

1.17/0.98/0.54/0.49/0.49A (by voltage tap)

Input Frequency:

47–53Hz / 57–63Hz

Power Requirements:

100-240V AC, 47-63Hz

Topology:

Linear (transformer-based)

Form Factor:

Open Frame

Output Connection:

Hardwired leads / terminal block

Input Connection:

Hardwired leads (voltage tap jumper configurable)

Voltage Tap Configuration:

Jumper-selectable: 100/120/220/230/240V AC

Current Configuration Note:

Derate output amps by 10% for 47-53Hz operation

Component Type:

Custom Rectifier

Certifications:

CSA (visible on label)

Country/Region of Manufacture:

Mexico

Condition:

Used – Inspected and Tested

Seller Notes:

Unit tested good at 15.05V DC output. Currently wired for 100/120V AC input.

Condition Notes:

Deltron W109B 15VDC 3A open frame linear power supply. Tested good at 15.05V DC output. Currently wired for 100/120V AC input; jumper-configurable for higher voltages. Normal cosmetic wear. Used condition.

Balzers RFS 302 RF Power Supply 2.5kW 13.56 MHz Plasma Generator 380V 3-Phase

Balzers

SKU:

50032

Availability:

This item requires freight shipping due to its size and weight. Please contact us for a freight quote or to arrange local pickup.

Weight:

1,111.00 LBS

Brand:

Balzers

Model:

RFS 302

MPN:

RFS 302

Secondary Model:

TIS 2.5/13560

Type:

RF Plasma Generator Power Supply

SKU:

50032

Internal Generator Brand:

Fritz Hüttinger Elektronik GmbH

Internal Generator Type:

TIS 2.5/13560

Internal Generator Version:

A 46-0104

Output Power:

2500 W (2.5 kW)

Output Frequency:

13.56 MHz

Line Voltage:

3 x 380V AC

Phase:

Three Phase

Frequency:

50/60 Hz

Power Consumption:

5400 VA

Input Current:

8.2 A

RF Output Connector:

N-type / coaxial (50 Ohm)

RF Output Impedance:

50 Ohm

Max RF Voltage:

1000 Vp (per Vorsicht HF-Spannung label)

Form Factor:

Floor-Standing Enclosure / Cabinet

Dimensions:

27.5" W x 22" D x 53" H

Front Panel Meters:

Incident Power (kW), Reflected Power meters

Front Panel Controls:

Mains/Standby/Remote switch, RF on/off, Overload indicator, Interlock

Power Switch:

Siemens rotary lockout/keyed main disconnect

Internal Power Supply Module:

Hüttinger Netzteil Typ B 66-0015

Internal RF Unit:

Hüttinger HF-Teil Typ B 76-0002

Internal Control Board:

Hüttinger Typ B 38-0114

Application:

RF Plasma Etching, Sputtering, CVD, PVD Semiconductor

Cooling:

Forced air (internal axial fans visible)

Country/Region of Manufacture:

West Germany

Condition:

As-Is / For Parts or Not Working

Seller Notes:

Sold AS-IS. Freight shipping required — contact us for quote or local pickup.

Condition Notes:

Balzers RFS 302 RF Plasma Generator Power Supply sold AS-IS, untested, for parts or repair. Not powered or tested at our facility. Freight shipping required — contact us for a quote or local pickup.

Balzers RFS 302 RF Power Supply 2.5kW 13.56 MHz Plasma Hüttinger TIS 2.5/13560

Balzers

SKU:

50029

Availability:

This item requires freight shipping due to its size and weight. Please contact us for a freight quote or to arrange local pickup.

Weight:

495.00 LBS

Brand:

Balzers

Model:

RFS 302

MPN:

BG M34 563 / 0157

Secondary Model:

TIS 2.5/13560

Type:

RF Power Supply / Plasma Generator

SKU:

50029

Seller Notes:

Includes RF output cables and associated cabling visible on top of unit

Country/Region of Manufacture:

Germany

Form Factor:

Floor-Standing Cabinet

Output Power:

2500 W (2.5 kW)

Output Frequency:

13.56 MHz

Input Voltage:

3 x 380V AC (Three-Phase)

Phase:

Three Phase

Input Frequency:

50/60 Hz

Power Consumption:

5400 VA

Current Rating:

8.2 A

RF Generator Manufacturer:

Fritz Hüttinger Elektronik GmbH

RF Generator Type:

TIS 2.5/13560

RF Generator Version:

A 46-0104

Cooling:

Water-cooled and fan-cooled

Cooling Water Flow Min:

6 l/min

Cooling Water Pressure:

7 bar nominal / max

Front Panel Meters:

Incident Power Pi (0-2.5 kW), Reflected Power Pr (0-500 W)

Front Panel Controls:

Key switch, Mains/Standby/Remote indicators, RF on/off, Overload reset

Overload Indicators:

Interlock, T>, Pr>, I>

Output Connector:

Coaxial (N-type / threaded RF output)

Max RF Voltage (Output):

Up to 1000 Vp

Application:

Plasma Etch, PVD Sputtering, CVD, Semiconductor

Dimensions:

27.5" W x 22" D x 52.25" H

Condition:

Used – Pulled from Working Environment

Condition Notes:

Balzers RFS 302 RF Power Supply inspected and in good used condition. Cabinet and internals intact; Fritz Hüttinger TIS 2.5/13560 module present. Cables included. Freight shipping required — contact us for a quote.

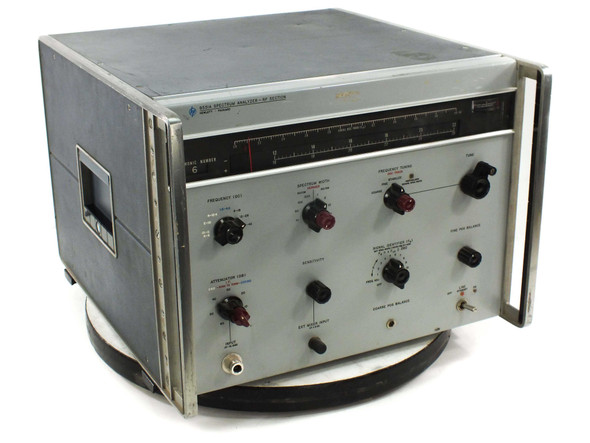

HP 8551A Spectrum Analyzer RF Section 10 MHz-10 GHz 115/230V For Parts

HP

SKU:

50027

Availability:

This item requires freight shipment or local pickup due to its size and weight — please contact us to arrange shipping before ordering.

Weight:

155.00 LBS

Brand:

Hewlett-Packard

Model:

8551A

MPN:

8551A

Type:

Spectrum Analyzer RF Section

SKU:

50027

Condition:

As-Is / For Parts or Not Working

Seller Notes:

Powers on to STANDBY only. No power cord included. Freight or local pickup required.

Country/Region of Manufacture:

United States

Form Factor:

Benchtop

Power Requirements:

115/230V, 50/60Hz

Frequency Range:

10 MHz to 10 GHz (direct coaxial input)

Extended Frequency Range:

8.2 to 40 GHz with external waveguide mixers

Input Type:

Direct single coaxial; external waveguide mixers

Measurement Type:

RF Spectrum Analysis

Front Panel Controls:

Frequency, Spectrum Width, Frequency Tuning, Attenuator, Sensitivity, Signal Identifier

Rear Panel Outputs:

LO Output (50 ohm), 2GC IF Input, 2GC Output (Input/Output), 200MC Output

Fuse Rating:

0.5A SB / 3A SB (visible on rear panel)

Switched Line Output:

Present on rear panel

Dimensions:

18.5" W x 16.75" D x 12.50" H

Era / Vintage:

1960s

Condition Notes:

This HP 8551A Spectrum Analyzer RF Section is being sold AS-IS for parts or repair. When powered, the unit advances only to the STANDBY indicator — no fans spin and no additional lights or displays activate.

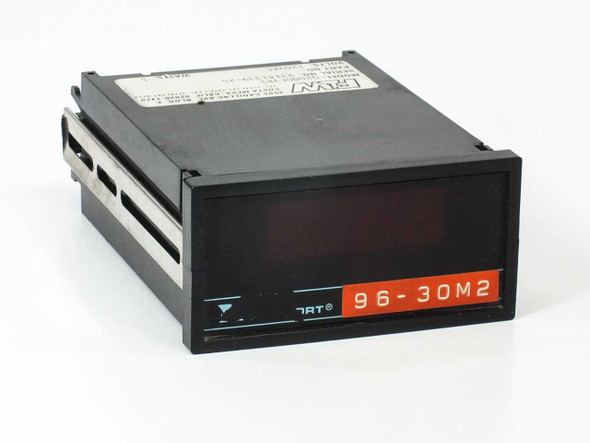

FLW Newport Q2000FVR2 AC Voltmeter Panel Meter 1/8 DIN 120VAC RMS 5W

Newport

SKU:

49974

Availability:

Usually ships within 1-2 business days.

Weight:

3.00 LBS

Brand:

FLW

Product Line:

Newport

Model:

Q2000FVR2

MPN:

Q2000FVR2

Secondary Model:

96-30M2

SKU:

49974

Type:

AC Voltmeter Panel Meter

Measurement Type:

AC Voltage (RMS)

Input Voltage:

120VAC

Power Consumption:

5W

Form Factor:

1/8 DIN Panel Mount

Display Type:

LED (Red 7-Segment)

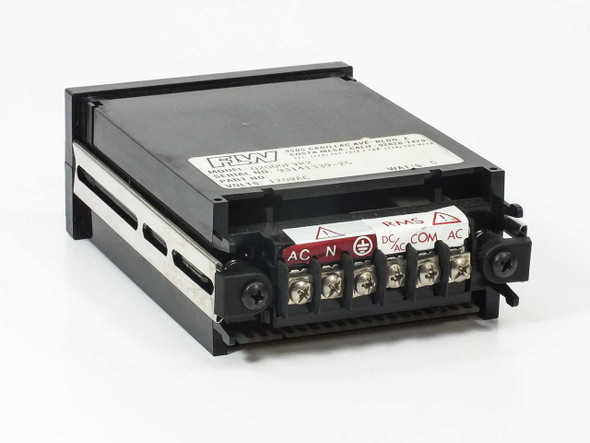

Rear Connection Type:

Screw Terminal Block

Terminal Labels:

AC, N, DC/AC, COM, AC (RMS)

Condition:

Used – Inspected and Tested

Seller Notes:

Unit only; tested and in working order.

Country/Region of Manufacture:

United States

Condition Notes:

FLW Newport Q2000FVR2 AC Voltmeter Panel Meter. Tested and in working order. LED display functions. Shows normal wear. Rear screw terminals intact. Please contact us with any questions.

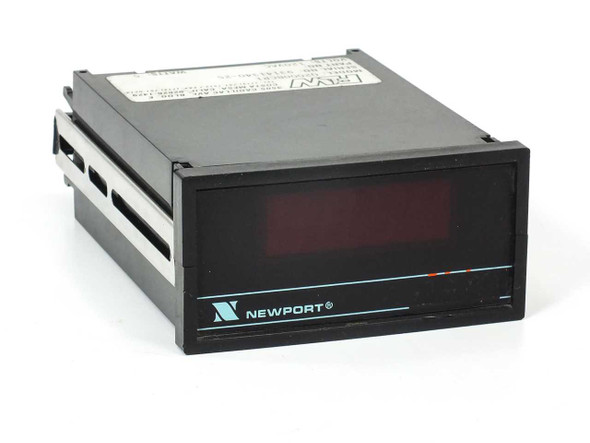

Newport Q2000BCR1 DC Ammeter Panel Meter 1/8 DIN 120VAC 5W LED Display

Newport

SKU:

49973

Availability:

Usually ships within 1-2 business days.

Weight:

3.00 LBS

Brand:

Newport

Model:

Q2000BCR1

MPN:

Q2000BCR1

Secondary Model:

Q2000BVR2

SKU:

49973

Type:

DC Ammeter Panel Meter

Form Factor:

1/8 DIN Panel Mount

Display Type:

LED Digital Display

Measurement Type:

DC Current (Amperage)

Power Requirements:

120VAC, 5W

Input Power:

120VAC

Power Consumption:

5W

Panel Cutout Size:

1/8 DIN

Terminal Type:

Screw Terminal

Condition:

Used – Inspected and Tested

Country/Region of Manufacture:

United States

Seller Notes:

Unit powers on and is in good working condition. Sold as shown.

Condition Notes:

Newport Q2000BCR1 DC Ammeter Panel Meter powers on and is in good working condition. LED display functions normally. Housing shows typical light wear. Rear screw terminals are clean and intact.

Newport Q2000AVR1 DC Voltmeter Panel Meter 1/8 DIN 96-30M5 120VAC 5W

Newport

SKU:

49972

Availability:

Usually ships within 1–2 business days.

Weight:

3.00 LBS

Brand:

Newport

Model:

Q2000AVR1

Secondary Model:

96-30M5

MPN:

Q2000AVR1

SKU:

49972

Type:

DC Voltmeter Panel Meter

Form Factor:

1/8 DIN Panel Mount

Display Type:

LED (Red 7-Segment)

Measurement Type:

DC Voltage

Power Requirements:

120VAC, 5W

Input Power (Volts):

120 VAC

Power Consumption:

5 Watts

Panel Cutout Size:

1/8 DIN

Condition:

Used – Inspected and Tested

Seller Notes:

Unit only; tested and in working order.

Country/Region of Manufacture:

United States

Condition Notes:

Newport Q2000AVR1 DC Voltmeter Panel Meter. Tested and in working order — powers on, LED display functional. Housing shows typical used wear; terminal block intact. Please view photos and contact us with any questions.

Fiplex DDBP 1622 Mobile Duplexer 12-Cavity 160-219.5 MHz N-Type VHF RF

Fiplex

SKU:

49953

Availability:

Usually ships within 1-2 business days.

Weight:

5.00 LBS

Brand:

Fiplex

Model:

DDBP 1622

MPN:

DDBP 1622

Type:

12-Cavity Mobile Duplexer

SKU:

49953

Frequency Range:

160/171 – 217/219.5 MHz

Number of Cavities:

12

Connector Type:

N-Type (female)

Port Labels:

DPLX 101 (duplex), ANTI-101 (antenna x2)

Filter Type:

Band Pass Duplexer

Band:

VHF

Form Factor:

Rackmount

Application:

Mobile Radio, Repeater Systems, VHF RF

Condition:

Used – Pulled from Working Environment

Seller Notes:

Unit only; port caps included as shown in photos.

Country/Region of Manufacture:

Spain

Condition Notes:

Fiplex DDBP 1622 12-cavity VHF mobile duplexer. Inspected, in good used condition. Pulled from a working environment where it was actively in service. N-type connectors intact; port caps included. Normal surface wear.
