Description

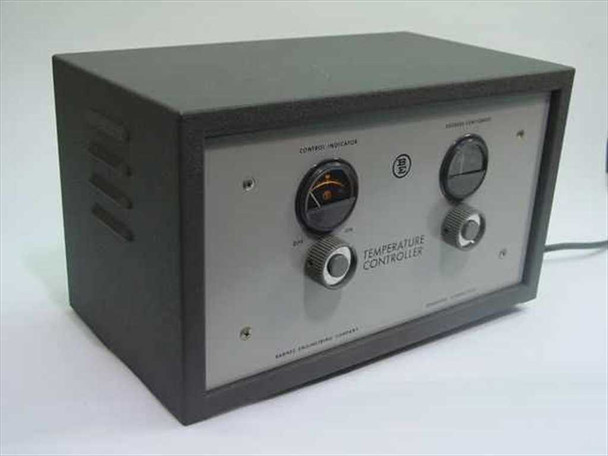

Barnes Engineering Co. 11-110-2 Temperature Controller Bolometer Thermostat
Benchtop temperature controller designed for bolometer heads and infrared detector systems. Features dual analog meters displaying temperature in degrees Centigrade and control indicator status.
Specifications & What's Included
- Model: 11-110-2
- Type: Temperature Controller / Thermostat
- Display: Analog meter (Centigrade) and control indicator meter
- Tubes: 12AX7, 12AT7, 6AL5, C3J
- Connector: Multi-pin circular (rear panel)
- Form Factor: Benchtop
- Manufactured: United States
Applications
Temperature controllers of this type were used in infrared detection and measurement systems, particularly in research and industrial thermal imaging applications. The 11-110-2 is compatible with Barnes Engineering bolometer detector heads and similar thermal sensing equipment. Historically deployed in spectroscopy, radiometry, and precision thermal monitoring setups requiring stable detector temperatures.
Condition: For Parts or Not Working
This Barnes Engineering Co. 11-110-2 Temperature Controller is being sold as-is for parts or repair. It is not guaranteed to be functional and has not been tested at our facility. The unit is physically complete and intact — the cabinet, front-panel meters, and control knobs are all present and show typical wear for a vintage instrument of this era. The interior is well-preserved: vacuum tubes (12AX7, 12AT7, 6AL5, and a C3J) are all present in their sockets, transformer cans appear intact, and the hand-wired point-to-point circuit board is undamaged and complete. The multi-pin circular connector on the rear panel shows some age but appears intact. Overall this is a good source for original parts including the tubes, meters, chassis hardware, and transformers. Please view our photo set and contact us if you have any questions.
This Barnes Engineering Co. 11-110-2 Temperature Controller is being sold as-is for parts or repair. It is not guaranteed to be functional and has not been tested at our facility. The unit is physically complete and intact — the cabinet, front-panel meters, and control knobs are all present and show typical wear for a vintage instrument of this era. The interior is well-preserved: vacuum tubes (12AX7, 12AT7, 6AL5, and a C3J) are all present in their sockets, transformer cans appear intact, and the hand-wired point-to-point circuit board is undamaged and complete. The multi-pin circular connector on the rear panel shows some age but appears intact. Overall this is a good source for original parts including the tubes, meters, chassis hardware, and transformers. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Barnes Engineering Co. |
Model: |
11-110-2 |
MPN: |
11-110-2 |
SKU: |
20915 |
Type: |
Temperature Controller |
Compatible With: |
Bolometer head / infrared detector systems |
Display Type: |
Analog meter — Degrees Centigrade |
Secondary Display: |
Analog meter — Control Indicator |
Tube Complement: |
12AX7 (V101), 12AT7 (V102), 6AL5 (V103), C3J (V104) |
Connector Type: |
Multi-pin circular connector (rear panel) |
Form Factor: |
Benchtop |
Country/Region of Manufacture: |
United States |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is; includes useful internal parts including vacuum tubes |
Condition Notes: |
Barnes Engineering Co. 11-110-2 Temperature Controller sold as-is for parts or repair. Not tested or guaranteed functional. Physically complete; tubes (12AX7, 12AT7, 6AL5, C3J), meters, and chassis all present. Good parts source. |
