Temp-Tendor

Temp-Tendor 428-8171R1 Temperature Controller 0-1000°C w/ SE Variac Transformer

(No reviews yet) Write a Review
SKU:
48740
MPN:
428-8171
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
28.00 LBS
Shipping:
Calculated at Checkout
  • Temp-Tendor 428-8171R1 temperature controller front view showing SE Variac dial and analog meter in gray steel enclosure
  • Close-up of SE Variac rotary dial (0–100 scale) on front panel of Temp-Tendor 428-8171R1 controller
  • Temp-Tendor analog thermocouple meter face showing 0–1000 centigrade scale with indicator lamp and toggle switch

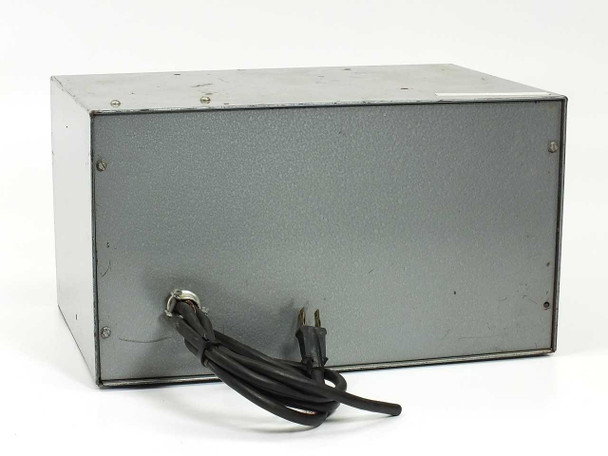

  • Rear view of Temp-Tendor 428-8171R1 enclosure showing AC power cord exit and plain steel back panel

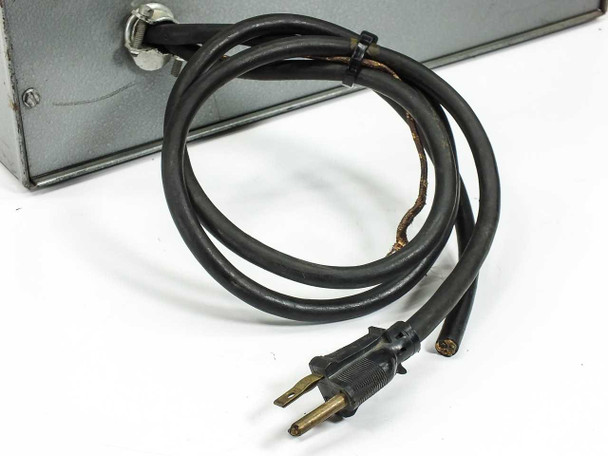

  • Close-up of AC power cord attached to rear of Temp-Tendor 428-8171R1 showing cord insulation wear and 2-prong plug

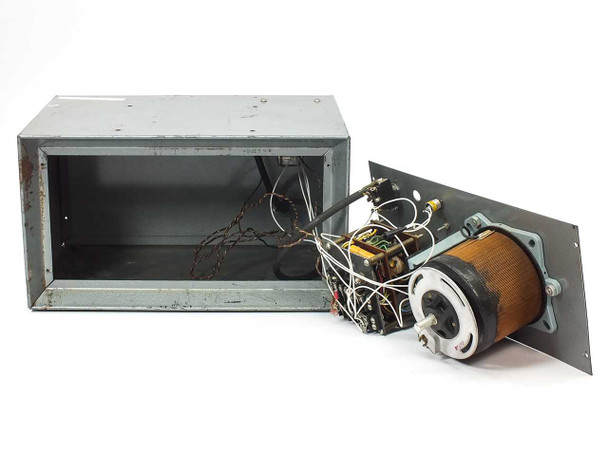

  • Disassembled Temp-Tendor 428-8171R1 with enclosure open showing SE Variac autotransformer coil and internal wiring removed from chassis

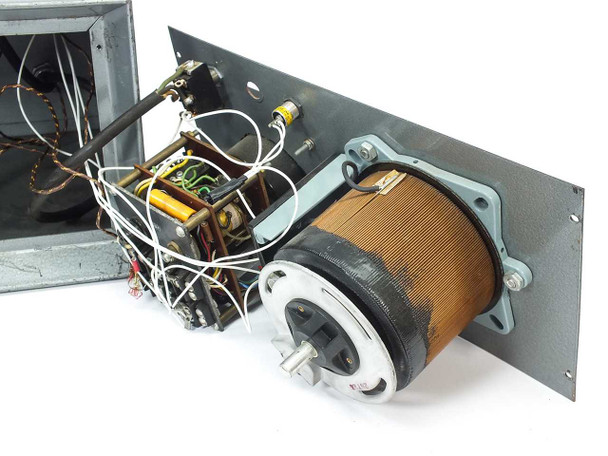

  • SE Variac autotransformer toroidal coil and front panel assembly removed from enclosure, wiring harness visible
  • Internal control wiring and terminal block of Temp-Tendor 428-8171R1 showing relay board and interconnecting wires

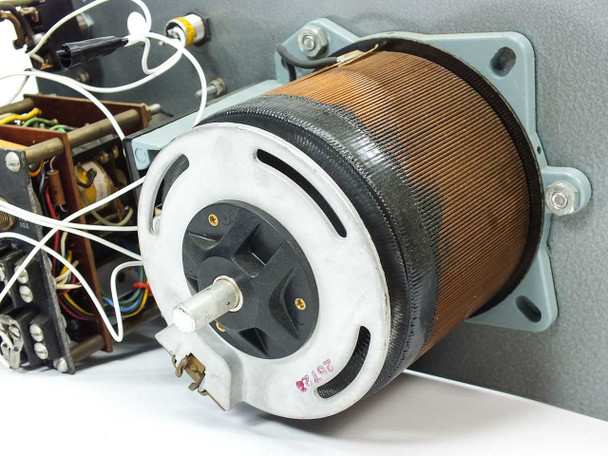

  • Rear view of SE Variac toroidal autotransformer coil showing copper winding and white plastic brush assembly
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Temp-Tendor 428-8171R1 Temperature Controller 0-1000°C w/ SE Variac Transformer

Benchtop temperature control unit with integrated SE Variac autotransformer. Measures temperatures from 0–1000°C using a thermocouple analog panel meter and outputs variable AC voltage (0–100 VAC) via rotary dial control.

Specifications & What's Included

  • Model: 428-8171R1 (Secondary: 428-8171)
  • Temperature Range: 0–1000°C thermocouple measurement
  • Transformer Output: 0–100 VAC (SE Variac autotransformer)
  • Front Panel: Rotary variac dial, indicator lamp, toggle switch
  • Included: SE Variac assembly, thermocouple meter gauge, control wiring harness, power cord
  • Enclosure: Steel sheet metal, gray painted

Applications

Temperature controllers with variac transformers were used in laboratory furnace control, process heating systems, and industrial test equipment. The combination of temperature measurement and variable AC output made them suitable for applications requiring synchronized heating control and temperature monitoring in manufacturing and research environments.

Condition: For Parts or Not Working
This Temp-Tendor 428-8171R1 temperature controller with SE Variac autotransformer is being sold as-is for parts or repair. The unit has been disassembled — photos show the SE Variac toroidal coil assembly and internal wiring harness removed from the steel enclosure. The power cord shows significant insulation cracking and wear and should be replaced before any electrical use. The enclosure has surface rust along the bottom edges and general wear consistent with age. The front panel meter face and SE Variac dial are intact. This item has not been tested and is not guaranteed functional. It is offered as a source of parts, including the SE Variac autotransformer, the Temp-Tendor thermocouple meter, relay board, terminal block, and related hardware. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Temp-Tendor
Model:
428-8171R1
MPN:
428-8171R1
Secondary Model:
428-8171
Type:
Temperature Controller with Variac Autotransformer
SKU:
48740
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is; includes SE Variac autotransformer assembly and thermocouple meter gauge
Measurement Range:
0 – 1000°C (Centigrade)
Meter Type:
Thermocouple Analog Panel Meter
Transformer Type:
SE Variac Autotransformer, 0–100 VAC Output
Output Voltage Range:
0 – 100 VAC
Form Factor:
Benchtop / Desktop Enclosure
Front Panel Controls:
Rotary variac dial (0–100), indicator lamp, toggle switch
Included Components:
SE Variac autotransformer, Temp-Tendor meter, control wiring harness, power cord
Power Cord:
Standard 2-prong AC power cord (included)
Enclosure Material:
Steel sheet metal, gray painted
Manufacturer:
Assembly Products Inc
Condition Notes:
Temp-Tendor 428-8171R1 temp controller w/ SE Variac sold as-is for parts or repair. Unit is disassembled; power cord shows wear. Not tested, not functional guarantee. Good source of parts.
