Yokogawa 3033 X-Y Analog Recorder Plotter YEW Vintage For Parts Repair
Benchtop X-Y analog recorder plotter manufactured by Yokogawa Electric Works. Records data on chart paper using pen drive mechanism with dual-axis input (X and Y1).
Specifications & What's Included
- Model: Yokogawa 3033 (YEW series)
- Recording Type: X-Y Analog with pen drive and DC amplifier
- Input Channels: 2 (X and Y1 axes)
- Input Range: mV/cm with vernier adjustment
- Sweep Rate: 0.25–10 s/cm adjustable
- Controls: Offset, position, range/vernier, filter on/off, sweep, chart hold, pen down
- Rear Interface: D-sub connector
- Mounting: Flat or vertical orientation
- Includes: Instruction manual
Applications
X-Y analog plotters were used in industrial laboratories, process control, and research settings to record relationships between two variables on paper charts. Typically connected to signal sources via analog inputs. Compatible with standard chart paper designed for Yokogawa 3033 series recorders. Commonly found in legacy measurement and monitoring systems from manufacturing, telecommunications, and scientific environments.
Condition: For Parts or Not Working

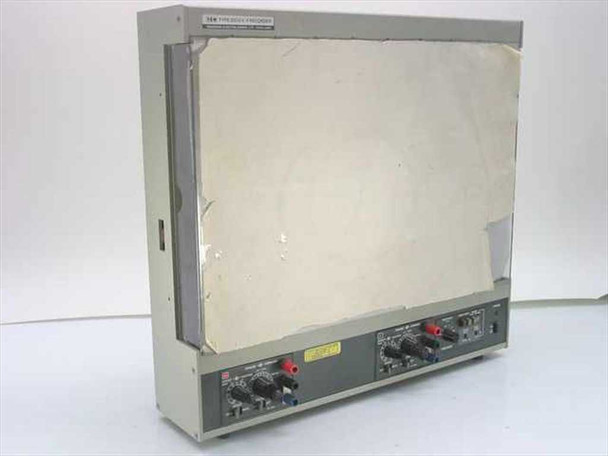

This Yokogawa YEW Type 3033 X-Y Analog Recorder Plotter powers on and the power indicator light illuminates, but it is in poor physical condition and is being sold for parts or repair only. The large chart surface area shows heavy soiling, surface damage, and significant wear. The enclosure has visible scuffs and wear throughout. The front-panel controls — including the Range/Vernier knobs, Filter switches, Sweep Rate, Chart Hold, and Pen Down — appear physically intact, and a D-sub connector is present on the rear panel. The unit comes with its instruction manual. It is sold strictly as-is with no functionality guarantee beyond what is described. Please view our photo set and contact us if you have any questions.
