Description
Tektronix 7A26 Dual Trace Amplifier Plug-In 7000 Series Oscilloscope 20MHz 2Ch
Vertical amplifier plug-in module for Tektronix 7000 Series oscilloscope mainframes. Provides dual-channel signal conditioning and amplification with 20 MHz bandwidth and variable deflection settings.
Specifications & What's Included
- Model: 7A26
- Type: Dual Trace Vertical Amplifier Plug-In
- Channels: 2
- Bandwidth: 20 MHz
- Deflection Range: 5 mV/div to 10 V/div (calibrated)
- Input Impedance: 1 MΩ / 22 pF
- Display Modes: ALT, CHOP, ADD
- Coupling Options: AC, GND, DC
- CH 2 Polarity: Normal (+UP) / Invert
- Trigger Source: CH 1, CH 2
Applications
The 7A26 amplifier plug-in was used in laboratory and service environments with Tektronix 7000 Series mainframe oscilloscopes for general-purpose signal measurement and analysis. Compatible with all 7000 Series mainframes including the 7623, 7633, and similar models. Typically configured for analog troubleshooting, electronics testing, and measurement of low-amplitude signals across multiple channels.
Condition: For Parts or Not Working

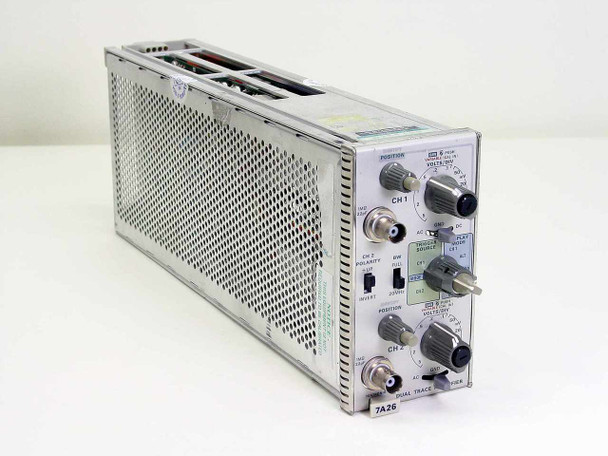

This Tektronix 7A26 Dual Trace Amplifier Plug-In is being sold as-is because we are unable to test it in-house. Physically, the unit is in good shape — the front panel knobs, switches, and BNC input connectors all appear intact and undamaged, and the vented housing shows only normal age-related wear consistent with lab use. The edge connector fingers on the rear are visible and present. Because we cannot verify electrical function, this plug-in is listed for parts or repair only and is not guaranteed to be operational. The unit you receive may differ slightly from the photos, as we have had multiple units of this model over the years. Manuals for the 7A26 are available separately at SKU 27793. Please view our photo set and contact us if you have any questions.
This Tektronix 7A26 Dual Trace Amplifier Plug-In is being sold as-is because we are unable to test it in-house. Physically, the unit is in good shape — the front panel knobs, switches, and BNC input connectors all appear intact and undamaged, and the vented housing shows only normal age-related wear consistent with lab use. The edge connector fingers on the rear are visible and present. Because we cannot verify electrical function, this plug-in is listed for parts or repair only and is not guaranteed to be operational. The unit you receive may differ slightly from the photos, as we have had multiple units of this model over the years. Manuals for the 7A26 are available separately at SKU 27793. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Tektronix |
Model: |
7A26 |
MPN: |
7A26 |
Type: |
Dual Trace Vertical Amplifier Plug-In |
SKU: |
19347 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is, untested. Good physical condition. Manuals available at SKU 27793. |
Compatible With: |
Tektronix 7000 Series Oscilloscope Mainframes |
Number of Channels: |
2 |
Bandwidth: |
20 MHz |
Input Impedance: |
1 MΩ / 22 pF |
Deflection Range: |
5 mV/div to 10 V/div (calibrated) |
Display Mode: |
ALT, CHOP, ADD |
Trigger Source: |
CH 1, CH 2 |
CH 2 Polarity: |
Normal (+UP) / Invert |
Coupling: |
AC, GND, DC |
Form Factor: |
Plug-In Module |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Tektronix 7A26 Dual Trace Amplifier Plug-In sold as-is — unable to test. Good physical condition; knobs, switches, and BNC connectors intact. Not guaranteed functional. For parts or repair. Unit may vary from photos. |
