Description

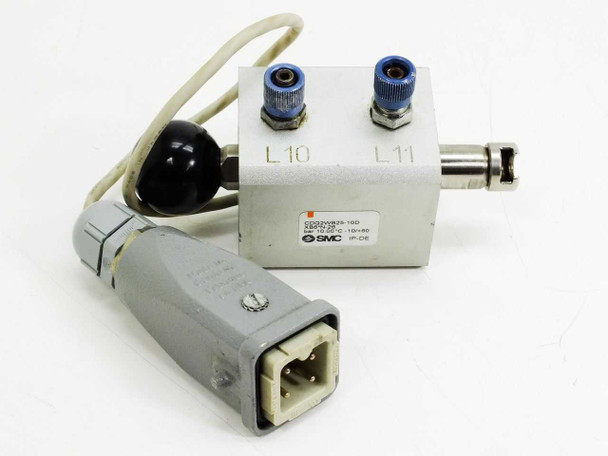

SMC CDQ2WB25-10D Compact Pneumatic Cylinder 25mm Bore 10mm Stroke XB6 Switch
The SMC CDQ2WB25-10D is a compact double-acting pneumatic cylinder from SMC Corporation's CDQ2 series, featuring a 25mm bore and 10mm stroke. This unit includes an XB6 series auto switch with a 4-pin industrial connector cable, providing integrated position sensing for use in automated systems. The cylinder is rated to 10 bar operating pressure and carries an IP-DE environmental designation, making it suitable for light-duty industrial automation environments.
Specifications & What's Included
- Brand: SMC Corporation
- Model: CDQ2WB25-10D
- Option Code: XB6*N-26
- Series: CDQ2 Compact Cylinder
- Bore Diameter: 25 mm
- Stroke: 10 mm
- Maximum Operating Pressure: 10 bar
- Operating Temperature Range: -10°C to +60°C

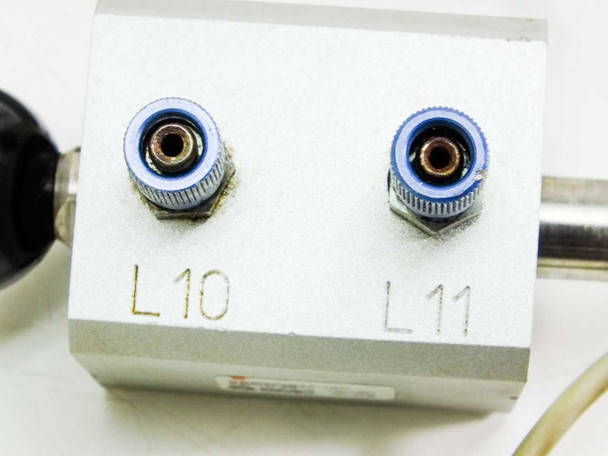

- Pneumatic Ports: Two push-in fittings (labeled L10 and L11), top-mounted
- Auto Switch: XB6 series, integrated on body

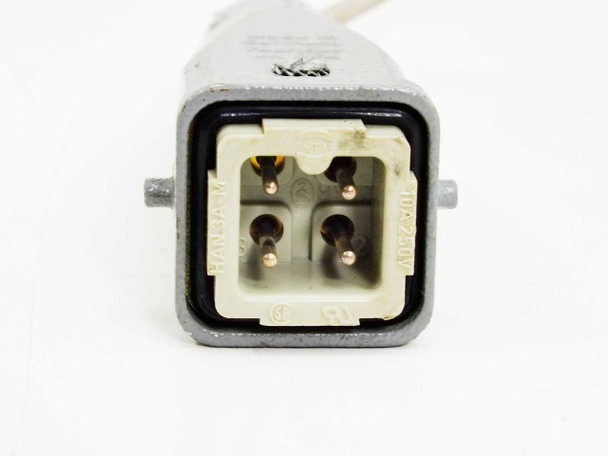

- Connector: 4-pin rectangular industrial connector, rated 10A / 250V
- IP Rating: IP-DE
- Unit marking: INCH
- Includes: Cylinder body with attached auto switch assembly and 4-pin connector cable
Applications
The SMC CDQ2 series is one of the most widely used compact pneumatic cylinder families in industrial automation. These cylinders are designed for space-constrained applications where a short-stroke linear actuator is needed — common in pick-and-place machinery, clamping fixtures, indexing mechanisms, and semiconductor and electronics assembly equipment. The CDQ2WB profile (wide body) provides a larger mounting footprint and greater resistance to lateral loading compared to the standard CDQ2 body. The XB6 auto switch option adds reed or solid-state position sensing directly on the cylinder body, allowing a PLC or motion controller to detect end-of-stroke positions without separate proximity sensors. SMC cylinders of this type are standard components across general factory automation, food and beverage, and clean-room-compatible assembly systems worldwide.
This SMC CDQ2WB25-10D compact pneumatic cylinder has been inspected and appears to be in good condition. It was pulled from a working environment where it was in use and functional. The aluminum body shows light surface wear consistent with industrial use, and the blue push-in fittings and black knob are intact. The attached 4-pin connector cable and auto switch assembly are present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SMC |
Model: |
CDQ2WB25-10D |
MPN: |
CDQ2WB25-10D |
Secondary Model: |
XB6*N-26 |
SKU: |
45578 |
Type: |
Compact Pneumatic Cylinder |
Series: |
CDQ2 Compact Cylinder Series |
Bore Size: |
25 mm |
Stroke: |
10 mm |
Auto Switch / Sensor: |
XB6 Series Auto Switch |
Switch Connector: |
4-pin rectangular industrial connector |
Connector Rating: |
10A, 250V |
Port Labels: |
L10, L11 (push-in pneumatic fittings, top) |
IP Rating: |
IP-DE |
Seller Notes: |
Includes attached 4-pin connector cable and auto switch assembly |
Country/Region of Manufacture: |
Japan |
Application: |
Industrial automation, pneumatic actuation |
Form Factor: |
Compact / Inline |
Condition Notes: |
SMC CDQ2WB25-10D compact pneumatic cylinder. Inspected and in good condition; pulled from a working environment where it was in use and functional. Includes 4-pin connector cable and auto switch. Normal wear. |
