SMC CDQ2B63-75DMZ-A93 Compact Pneumatic Cylinder 63mm Bore 75mm Stroke 1.0MPa

(No reviews yet) Write a Review
SKU:
48095
MPN:
CDQ2B63-75DMZ-A93
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
  • SMC CDQ2B63-75DMZ-A93 compact pneumatic cylinder – front angled view showing rod end and body

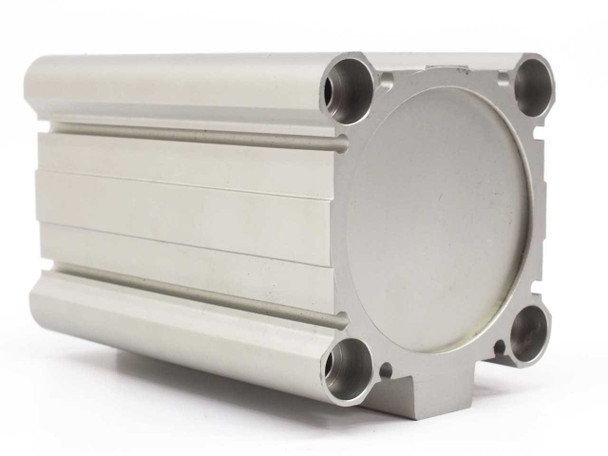

  • SMC CDQ2B63-75DMZ-A93 compact pneumatic cylinder – rear angled view showing aluminum body and through-hole mounting corners

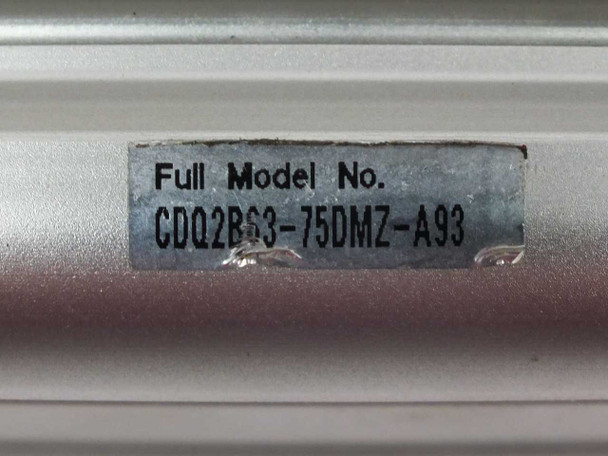

  • SMC CDQ2B63-75DMZ-A93 label close-up showing full model number CDQ2B63-75DMZ-A93

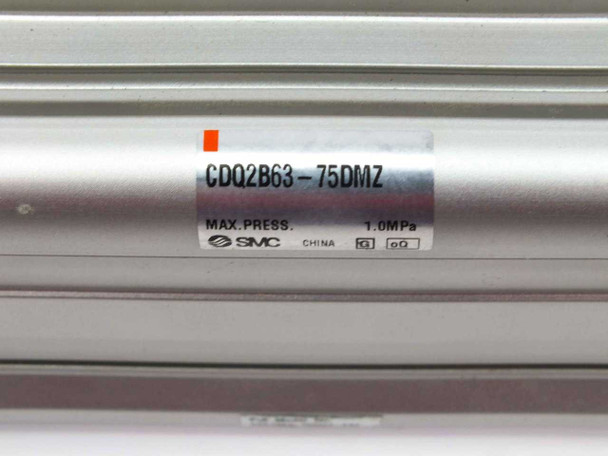

  • SMC CDQ2B63-75DMZ cylinder label showing model CDQ2B63-75DMZ, max pressure 1.0MPa, SMC brand, made in China

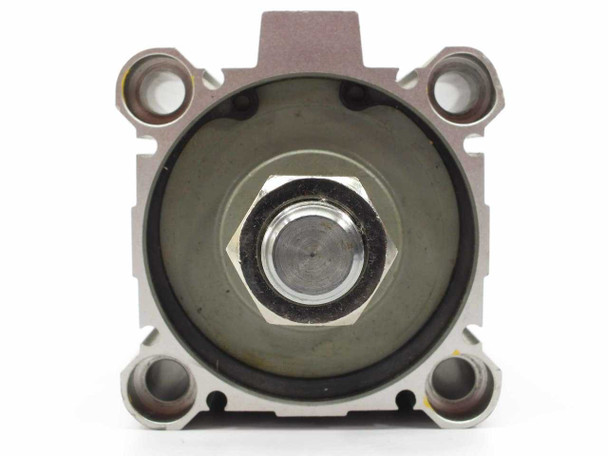

  • SMC CDQ2B63-75DMZ-A93 – end cap view showing piston rod nut and seal

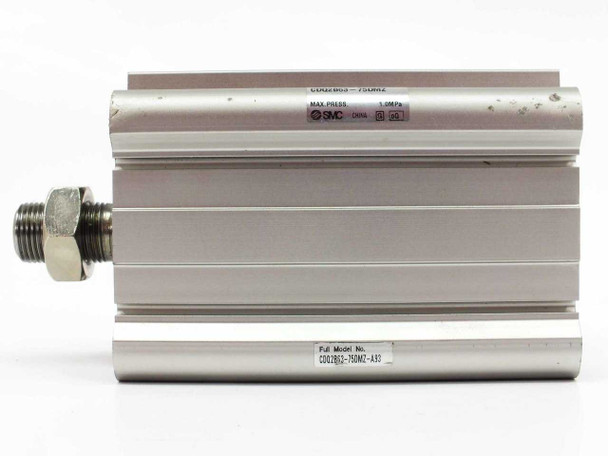

  • SMC CDQ2B63-75DMZ-A93 compact pneumatic cylinder – side profile view showing port fitting and label
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

SMC CDQ2B63-75DMZ-A93 Compact Pneumatic Cylinder 63mm Bore 75mm Stroke 1.0MPa

Double-acting pneumatic cylinder with 63mm bore and 75mm stroke length. Operates at 1.0 MPa maximum pressure and delivers controlled linear motion in both directions using compressed air.

Specifications & What's Included

  • Brand: SMC
  • Model: CDQ2B63-75DMZ-A93
  • Type: Compact Double-Acting Pneumatic Cylinder
  • Bore Size: 63 mm
  • Stroke Length: 75 mm
  • Max Operating Pressure: 1.0 MPa
  • Body Material: Aluminum
  • Mounting Style: Through-Hole
  • Rod Type: Single Rod
  • Manufactured in China
  • Cylinder only; tested and in working order

Applications

SMC CDQ2B series cylinders are used in factory automation, assembly equipment, material handling systems, and general pneumatic control applications. The compact design suits space-constrained installations. These cylinders integrate with standard pneumatic valve systems and ISO-compatible mounting interfaces found in industrial production lines and machinery requiring controlled linear actuation.

Condition: Used
This SMC CDQ2B63-75DMZ-A93 compact double-acting pneumatic cylinder has been tested and is in working order. The aluminum body is clean and shows only light surface wear consistent with prior use. The rod end, port fittings, and through-hole mounting corners all appear intact with no visible damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
CDQ2B63-75DMZ-A93
MPN:
CDQ2B63-75DMZ-A93
Secondary Model:
CDQ2B63-75DMZ
Type:
Compact Double-Acting Pneumatic Cylinder
SKU:
48095
Series:
CDQ2B
Bore Size:
63 mm
Stroke Length:
75 mm
Action Type:
Double Acting
Rod Type:
Single Rod
Mounting Style:
Through-Hole
Max Operating Pressure:
1.0 MPa
Body Material:
Aluminum
Condition:
Used – Inspected and Tested
Seller Notes:
Cylinder only; tested and in working order.
Country/Region of Manufacture:
China
Form Factor:
Compact / Short Stroke
Condition Notes:
SMC CDQ2B63-75DMZ-A93 compact pneumatic cylinder tested and in working order. Aluminum body shows light surface wear. Rod end and port fittings intact. No visible damage.
