SMC CDM2B25-125 Pneumatic Cylinder Double-Acting 25mm Bore 125mm Stroke 1.0MPa

(No reviews yet) Write a Review
SKU:
53200
MPN:
CDM2B25-125
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • SMC CDM2B25-125 double-acting pneumatic cylinder – full unit angled view showing rod end, auto switch, and push-in fittings

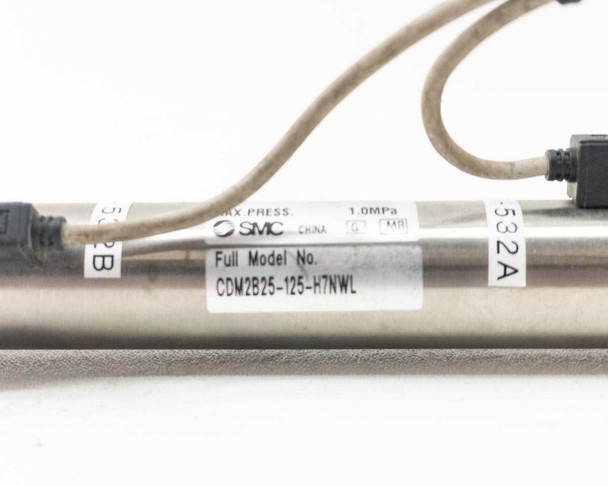

  • SMC CDM2B25-125-H7NWL label close-up showing full model number and 1.0MPa max pressure rating
  • SMC CDM2B25-125 body label showing model CDM2B25-125, Max Press 1.0MPa, SMC China markings
  • SMC CDM2B25-125 pneumatic cylinder – opposite side angled view showing cap end, push-in fittings, and auto switch wiring
  • SMC CDM2B25-125 pneumatic cylinder – full length side view showing rod extended with threaded rod end and fittings
  • SMC CDM2B25-125 pneumatic cylinder – full length view with rod fully extended showing cylinder body and auto switch

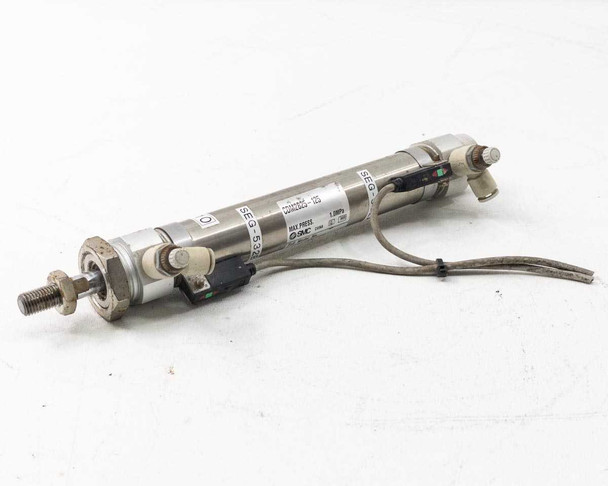

  • SMC CDM2B25-125 pneumatic cylinder – three-quarter view showing auto switch mounted to cylinder body with wiring

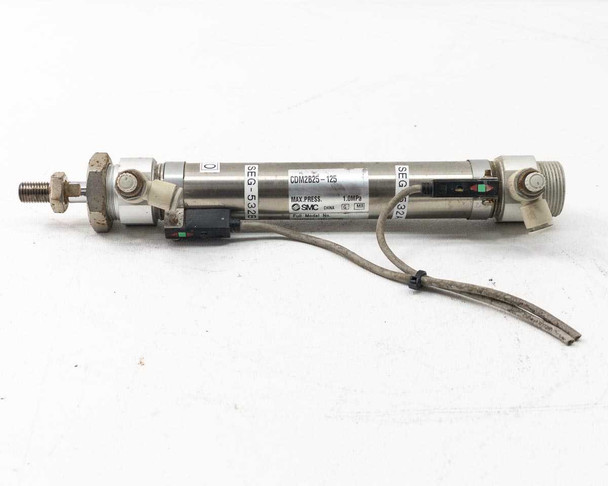

  • SMC CDM2B25-125 pneumatic cylinder – side profile view showing model label, auto switch, and cap end detail
$60.00
Was: $125.00
Current Stock: 20

Sold Out

Description

SMC CDM2B25-125 Pneumatic Cylinder Double-Acting 25mm Bore 125mm Stroke 1.0MPa

Double-acting pneumatic cylinder from SMC's CDM2B series. Delivers controlled linear motion in both directions under compressed air, with 25mm bore and 125mm stroke rated for 1.0 MPa operation.

Specifications & What's Included

  • Brand: SMC | Model: CDM2B25-125
  • Bore: 25mm | Stroke: 125mm
  • Max Operating Pressure: 1.0 MPa
  • Type: Double-Acting with installed auto switch and wiring leads
  • Manufactured: China
  • Condition: Used, pulled from working environment

Applications

CDM2B cylinders are used in industrial automation systems for material handling, assembly lines, clamping fixtures, and pneumatic machinery. Compatible with SMC CDM2B series control valve systems and standard pneumatic automation networks. This stroke and bore size handles moderate-force linear actuation in compact machine configurations.

Condition: Used
SMC CDM2B25-125 double-acting pneumatic cylinder, 25mm bore, 125mm stroke, pulled from active industrial service. This unit has been tested and confirmed functional. The cylinder body displays cosmetic wear consistent with normal industrial use, including surface marks, discoloration, and light oxidation around the rod end and end cap hardware. The threaded rod end and mounting hardware show typical installation wear. An auto switch is factory-installed and wired to the cylinder body. Fully operational and ready for deployment. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
CDM2B25-125
MPN:
CDM2B25-125-H7NWL
Type:
Double-Acting Pneumatic Cylinder
SKU:
53200
Bore Size:
25mm
Stroke Length:
125mm
Max Operating Pressure:
1.0 MPa
Action Type:
Double-Acting
Series:
CDM2B
Auto Switch:
Yes – wired auto switch installed
Country/Region of Manufacture:
China
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes installed auto switch with wiring leads
Compatible With:
SMC CDM2B Series pneumatic automation systems
Condition Notes:
SMC CDM2B25-125 double-acting pneumatic cylinder, 25mm bore, 125mm stroke, pulled from active industrial service. This unit has been tested and confirmed functional.
