SMC CDM2B20-150 Pneumatic Cylinder 20mm Bore 150mm Stroke Double Acting

(No reviews yet) Write a Review
SKU:
47965
MPN:
CDM2B20-150
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

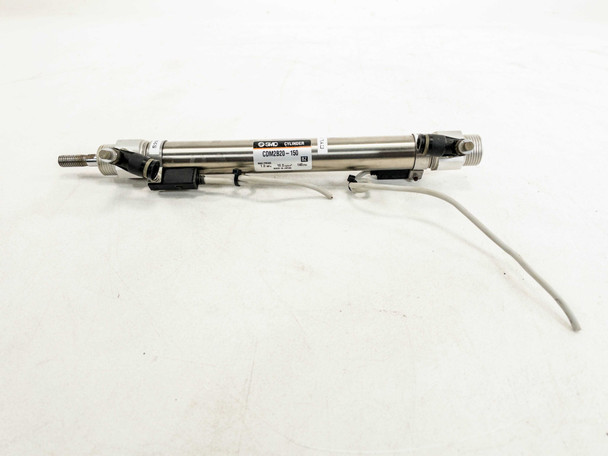

  • SMC CDM2B20-150 double acting pneumatic cylinder full side view with position sensor leads and speed controller fitting

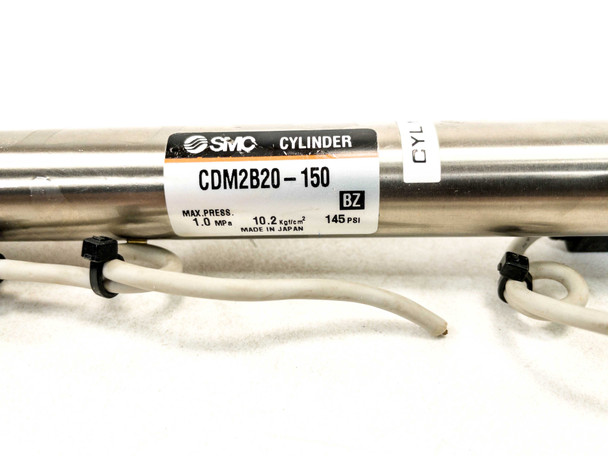

  • SMC CDM2B20-150 cylinder label showing model number, max pressure 1.0 MPa, 10.2 kgf/cm², 145 PSI, Made in Japan
  • SMC CDM2B20-150 pneumatic cylinder side view showing stainless body, rod end, and position sensor clamps
  • SMC CDM2B20-150 cylinder rod end detail showing 8mm threaded rod, port fitting, and push-in speed controller
  • SMC CDM2B20-150 cylinder rear port end detail showing push-in speed controller fitting and sensor lead
$35.00
Was: $70.00
Current Stock: 3

Sold Out

Description

SMC CDM2B20-150 Pneumatic Cylinder 20mm Bore 150mm Stroke Double Acting

Double acting pneumatic cylinder with 20mm bore and 150mm stroke. Operates on compressed air at up to 1.0 MPa and is designed for linear automation applications requiring controlled extension and retraction in both directions.

Specifications & What's Included

  • Model: CDM2B20-150 (SMC CDM2B series)
  • Bore diameter: 20mm; Rod diameter: 8mm
  • Stroke length: 150mm
  • Maximum pressure: 1.0 MPa (145 PSI)
  • Double acting, single rod configuration
  • Includes attached speed controller fittings and position sensor leads
  • Stainless steel body, inline round form factor
  • Made in Japan

Applications

CDM2B cylinders are used in pneumatic automation systems for material handling, clamping, positioning, and assembly processes. This model integrates with SMC CDM2 series automation platforms and compatible control systems. Commonly found in manufacturing equipment, packaging machinery, and industrial automation where mid-range bore and stroke cylinders are required.

Condition: Used
This SMC CDM2B20-150 double acting pneumatic cylinder has been inspected and appears to be in good used condition. The stainless steel body is clean with no visible damage or deformation. The rod end and port fittings — including the push-in speed controller fittings visible on both ends — appear intact. Position sensor leads are attached and present. Normal light handling marks are visible on the body. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
CDM2B20-150
MPN:
CDM2B20-150
Type:
Double Acting Pneumatic Cylinder
SKU:
47965
Bore Diameter:
20mm
Stroke Length:
150mm
Rod Diameter:
8mm
Max Pressure:
1.0 MPa / 10.2 kgf/cm² / 145 PSI
Action Type:
Double Acting
Rod Configuration:
Single Rod
Series:
CDM2B
Country/Region of Manufacture:
Japan
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes attached speed controller fittings and position sensor leads
Compatible With:
SMC CDM2 series pneumatic automation systems
Form Factor:
Round Body / Inline
Medium:
Compressed Air / Pneumatic
Condition Notes:
SMC CDM2B20-150 pneumatic cylinder inspected and in good used condition. Stainless body is clean, rod and fittings intact, speed controller fittings and sensor leads present. Normal light handling marks. Please contact us with any questions.
View AllClose

Related Products

Related Products

SMC CDM2C20-80 double acting pneumatic cylinder – full assembly view showing rod eye end, clevis mount, push-in fittings, and auto-switch wiring SMC CDM2C20-80 pneumatic cylinder – opposite side view showing SMC label, rust on cylinder body, push-in fittings and auto-switch
Add to Cart
Quick view

SMC CDM2C20-80 Pneumatic Cylinder 20mm Bore 80mm Stroke Double Acting

SMC

$35.00
Was: $70.00
SMC CDM2C20-80 Pneumatic Cylinder 20mm Bore 80mm Stroke Double ActingThe SMC CDM2C20-80 is a compact double acting, single rod pneumatic cylinder from SMC Corporation's CDM2 series. It uses...
47967
SKU:
47967
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
SMC
Model:
CDM2C20-80
MPN:
CDM2C20-80-H7BL-XB9
Type:
Double Acting Pneumatic Cylinder
SKU:
47967
Bore Size:
20mm
Stroke Length:
80mm
Action Type:
Double Acting
Rod Configuration:
Single Rod
Max Operating Pressure:
1.0 MPa (145 PSI / 10.2 kgf/cm²)
Series:
CDM2 Series
Country/Region of Manufacture:
Japan
Condition:
Used – Inspected, surface rust/corrosion present
Seller Notes:
Unit includes push-in fittings and auto-switch sensor wiring as shown.
Application:
Industrial Automation, Pneumatic Actuation
Body Material:
Stainless Steel Tube
End Configuration:
Clevis / Rod Eye both ends
Condition Notes:
SMC CDM2C20-80 pneumatic cylinder, inspected and in good used condition. Surface rust/corrosion present on cylinder body (visible in photos). Fittings, rod eye, and auto-switch wiring appear intact.
SMC CDM2B25-125 double-acting pneumatic cylinder – full unit angled view showing rod end, auto switch, and push-in fittings SMC CDM2B25-125-H7NWL label close-up showing full model number and 1.0MPa max pressure rating
Add to Cart
Quick view

SMC CDM2B25-125 Pneumatic Cylinder Double-Acting 25mm Bore 125mm Stroke 1.0MPa

SMC

$60.00
Was: $125.00
SMC CDM2B25-125 Pneumatic Cylinder Double-Acting 25mm Bore 125mm Stroke 1.0MPa Double-acting pneumatic cylinder from SMC's CDM2B series. Delivers controlled linear motion in both directions under...
53200
SKU:
53200
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
SMC
Model:
CDM2B25-125
MPN:
CDM2B25-125-H7NWL
Type:
Double-Acting Pneumatic Cylinder
SKU:
53200
Bore Size:
25mm
Stroke Length:
125mm
Max Operating Pressure:
1.0 MPa
Action Type:
Double-Acting
Series:
CDM2B
Auto Switch:
Yes – wired auto switch installed
Country/Region of Manufacture:
China
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes installed auto switch with wiring leads
Compatible With:
SMC CDM2B Series pneumatic automation systems
Condition Notes:
SMC CDM2B25-125 double-acting pneumatic cylinder, 25mm bore, 125mm stroke, pulled from active industrial service. This unit has been tested and confirmed functional.
SMC MKB20-20RZ Pneumatic Rotary Clamp Cylinder — left side view showing model label, SMC branding, and 1.0 MPa max pressure rating with sensor wires attached SMC MKB20-20RZ Rotary Clamp Cylinder — angled rear-left view showing clamping rod end, cylinder body, and multi-wire sensor lead
Add to Cart
Quick view

SMC MKB20-20RZ Pneumatic Rotary Clamp Cylinder 20mm Bore 20mm Stroke 1.0MPa

SMC

$80.00
Was: $150.00
SMC MKB20-20RZ Pneumatic Rotary Clamp Cylinder 20mm Bore 20mm Stroke 1.0MPa The SMC MKB20-20RZ is a compact pneumatic rotary clamp cylinder from SMC Corporation's MKB series. It combines linear...
53198
SKU:
53198
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
SMC
Model:
MKB20-20RZ
MPN:
MKB20-20RZ
Type:
Pneumatic Rotary Clamp Cylinder
SKU:
53198
Bore Size:
20mm
Stroke Length:
20mm
Rotation Direction:
Clockwise
Max Operating Pressure:
1.0 MPa
Actuation Type:
Pneumatic
Auto-Switch Compatible:
Yes — SMC auto-switch mounting grooves
Series:
MKB Series
Country/Region of Manufacture:
Japan
Seller Notes:
Includes attached sensor wires of varying length. No additional accessories included.
Condition:
Used – Pulled from Working Environment, Not Bench-Tested
Condition Notes:
SMC MKB20-20RZ Pneumatic Rotary Clamp Cylinder in used condition, pulled from active industrial production service. The 20mm bore, 20mm stroke unit has been visually inspected and shows typical wear consistent with normal industrial use; the

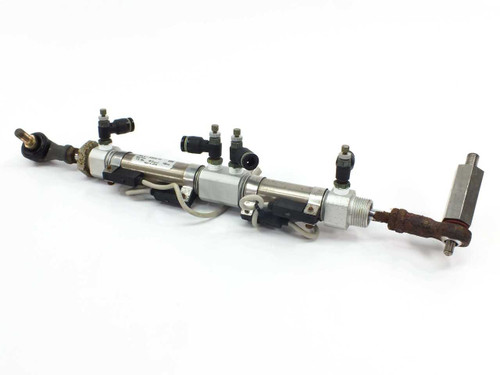

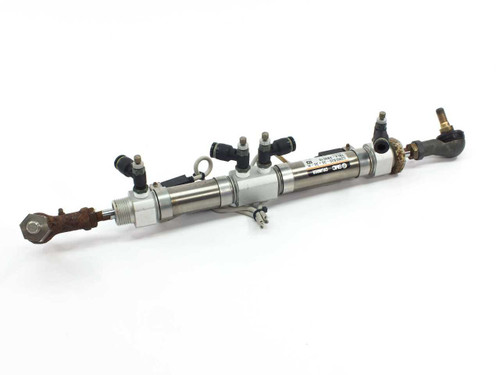

SMC CDM2B20-50+30-H pneumatic cylinder full assembly view showing rod ends and push-in fittings on white background SMC CDM2B20-50+30-H pneumatic cylinder side profile view showing cylinder body, rod ends, and multiple push-in fittings
