SMC CDM2G32-65-H7BL3 CM2 Series Double Acting Pneumatic Cylinder 32mm Bore

(No reviews yet) Write a Review
SKU:
48733
MPN:
CDM2G32-65-H7BL3
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

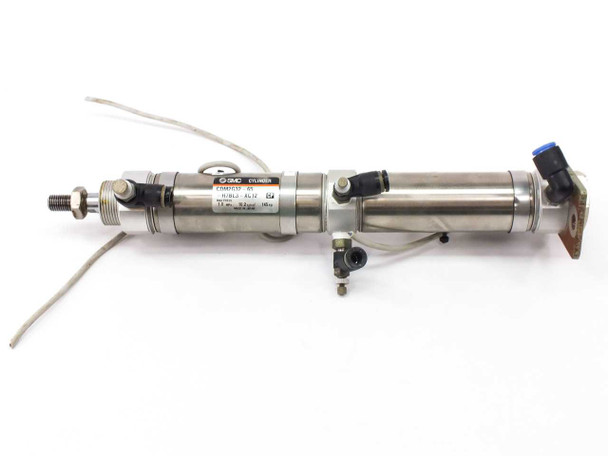

  • SMC CDM2G32-65-H7BL3 CM2 series pneumatic cylinder – full right-side view showing stainless steel body, push-in fittings, mounting bracket, and rod end

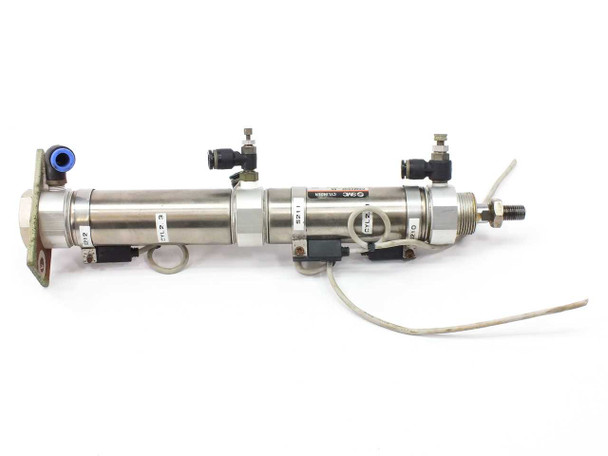

  • SMC CDM2G32-65-H7BL3 pneumatic cylinder – left-side view showing full cylinder body, flow control fittings, and mounting bracket with rod extended
  • SMC CDM2G32-65-H7BL3 cylinder label closeup showing model number, max pressure 1.0 MPa, 145 PSI, Made in Japan

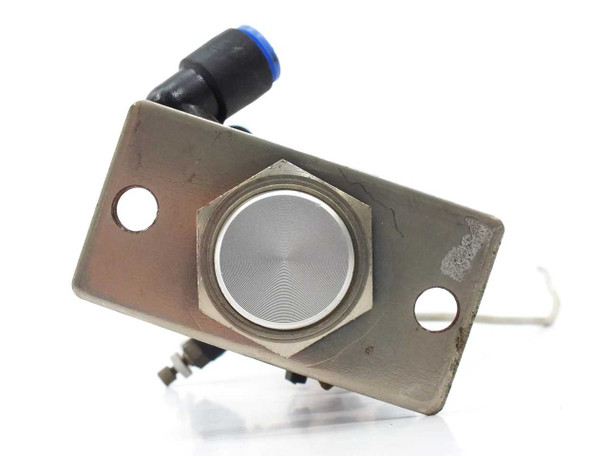

  • SMC CDM2G32-65-H7BL3 pneumatic cylinder – rod-end cap view with push-in fitting and stainless steel mounting plate showing two bolt holes

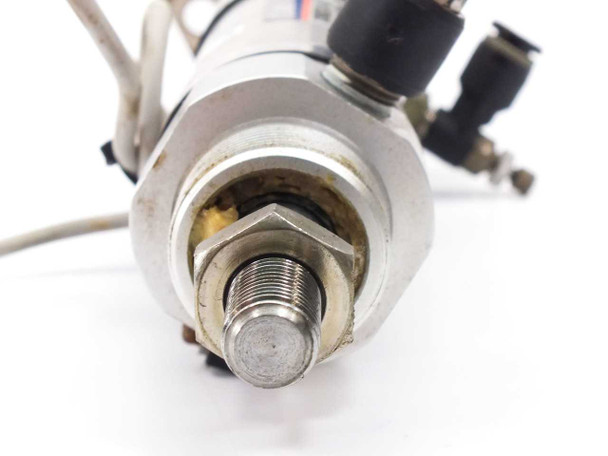

  • SMC CDM2G32-65-H7BL3 – rod end closeup showing threaded rod, hex nut, and push-in fitting with visible grease/wear at rod seal

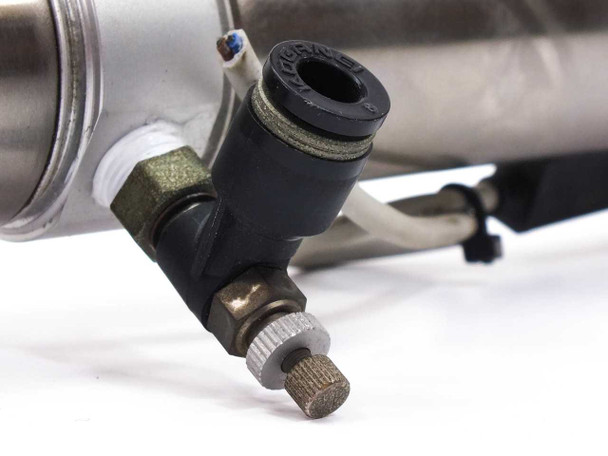

  • SMC CDM2G32-65-H7BL3 – closeup of elbow-style flow control valve and push-in fitting at cylinder port with needle adjustor
  • SMC CDM2G32-65-H7BL3 – second flow control valve closeup showing elbow push-in fitting and knurled needle speed controller
$45.00
Was: $90.00
Current Stock: 1

Sold Out

Description

SMC CDM2G32-65-H7BL3 CM2 Series Double Acting Pneumatic Cylinder 32mm Bore

Double acting single rod pneumatic cylinder manufactured by SMC. Converts compressed air pressure into linear motion for automation and industrial control applications.

Specifications & What's Included

  • Bore diameter: 32mm
  • Stroke length: 65mm
  • Rod diameter: 12mm
  • Maximum operating pressure: 1.0 MPa (145 PSI)
  • Body material: Stainless steel
  • Mounting: Foot/bracket mount
  • Port type: Push-in fitting
  • Includes mounting bracket and flow control valves

Applications

CM2 series cylinders are used in factory automation, material handling equipment, assembly machinery, and process control systems. Double acting cylinders provide powered motion in both extension and retraction directions. Compatible with standard pneumatic control systems using 10 bar compressed air supply. Stainless steel construction makes this model suitable for applications requiring corrosion resistance in food processing, pharmaceutical, and chemical environments.

Condition: Used
This SMC CDM2G32-65-H7BL3 CM2 Series double acting pneumatic cylinder has been inspected and is in good used condition. The stainless steel body is intact and shows typical surface marks from prior use. The rod end and threaded rod show some grease residue and minor wear at the rod seal area, as seen in the photos. The push-in tube fittings and elbow-style flow control valves are present and intact. A mounting bracket is attached to the cylinder body. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
CDM2G32-65-H7BL3
MPN:
CDM2G32-65-H7BL3-XC12
Type:
Double Acting Single Rod Pneumatic Cylinder
Series:
CM2
SKU:
48733
Bore Diameter:
32mm
Stroke Length:
65mm
Rod Diameter:
12mm
Max Operating Pressure:
1.0 MPa (145 PSI / 10.2 kgf/cm²)
Action Type:
Double Acting
Rod Configuration:
Single Rod
Body Material:
Stainless Steel
Country/Region of Manufacture:
Japan
Mounting:
Foot/Bracket Mount
Port Type:
Push-in fitting (pneumatic tube)
Condition:
Used – Inspected, Good Condition
Seller Notes:
Includes attached mounting bracket and push-in tube fittings with flow control valves.
Condition Notes:
SMC CDM2G32-65-H7BL3 CM2 pneumatic cylinder. Inspected and in good used condition. Stainless body intact; rod and seal show normal wear. Push-in fittings and flow control valves present. Mounting bracket attached.
View AllClose

Related Products

Related Products

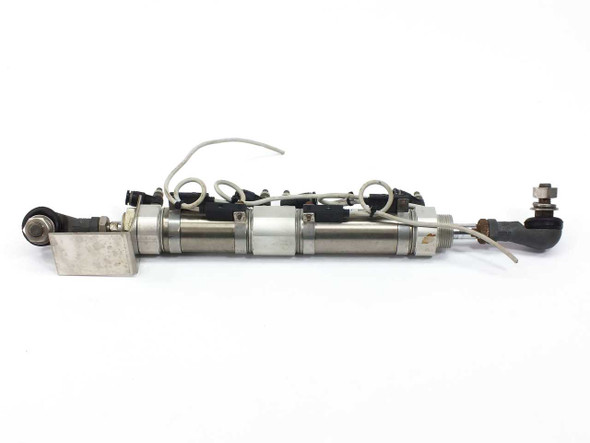

SMC CDM2B32-55 CM2 double acting pneumatic cylinder assembly with rod ends and pneumatic fittings — full unit top view SMC CDM2B32-55 pneumatic cylinder assembly showing full length with rod ends and attached wiring — side profile view
Add to Cart
Quick view

SMC CDM2B32-55 CM2 Series Double Acting Pneumatic Cylinder 32mm Bore 1.0 MPa

SMC

$35.00
Was: $70.00
SMC CDM2B32-55 CM2 Series Double Acting Pneumatic Cylinder 32mm Bore 1.0 MPaDouble acting single rod pneumatic cylinder manufactured by SMC. Operates at 1.0 MPa maximum pressure with 32mm bore...
48735
SKU:
48735
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
SMC
Model:
CDM2B32-55
MPN:
CDM2B32-55+35-H-7BL4-XB9C10
Secondary Model:
7BL4-XB9C10
Type:
Double Acting Single Rod Pneumatic Cylinder
Series:
CM2
Bore Diameter:
32mm
Stroke Length:
55mm + 35mm
Rod Diameter:
12mm
Max Pressure:
1.0 MPa (145 PSI / 10.2 kgf/cm²)
Action Type:
Double Acting
Rod Configuration:
Single Rod
Country/Region of Manufacture:
Japan
Mounting Style:
Rod end / clevis-style rod ends (both sides)
Condition:
Used – Pulled from Working Environment
SKU:
48735
Seller Notes:
Includes attached pneumatic fittings, wiring leads, and rod end hardware as shown.
Condition Notes:
SMC CDM2B32-55 CM2 Series pneumatic cylinder inspected and in good used condition. Pulled from a working environment where it was in active use and functional. Light surface wear on hardware; fittings and wiring leads included as shown.

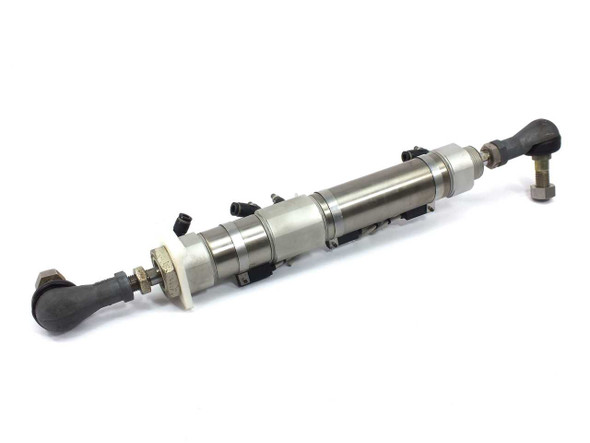

SMC CDM2B40-85 CM2 Series double acting pneumatic cylinder full assembly with THK rod end joints on both ends – left side view SMC CDM2B40-85 CM2 pneumatic cylinder full assembly showing stainless body and flow control fittings – right side view
Add to Cart
Quick view

SMC CDM2B40-85 CM2 Series Double Acting Pneumatic Cylinder 40mm Bore 85mm

SMC

$45.00
Was: $90.00
SMC CDM2B40-85 CM2 Series Double Acting Pneumatic Cylinder 40mm Bore 85mmDouble acting single rod pneumatic cylinder manufactured by SMC. Converts compressed air pressure into linear motion in both...
48734
SKU:
48734
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
SMC
Model:
CDM2B40-85
MPN:
CDM2B40-85+10-H-7BL3-XB9C10
Secondary Model:
7BL3-XB9C10
Type:
Double Acting Single Rod Pneumatic Cylinder
Series:
CM2
SKU:
48734
Bore Diameter:
40mm
Stroke Length:
85mm + 10mm (95mm total)
Rod Diameter:
9mm
Max Pressure:
1.0 MPa / 10.2 kgf/cm² / 145 PSI
Action Type:
Double Acting
Rod Configuration:
Single Rod
Included Accessories:
THK rod end joints (both ends), flow control fittings
Country/Region of Manufacture:
Japan
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes THK rod end joints on both ends and inline flow control fittings
Condition Notes:
This SMC CDM2B40-85 CM2 Series double acting pneumatic cylinder was pulled from a working environment and inspected. Body shows light surface soiling and minor wear. Both THK rod ends intact, flow control fittings present.
SMC CDM2C20-80 double acting pneumatic cylinder – full assembly view showing rod eye end, clevis mount, push-in fittings, and auto-switch wiring SMC CDM2C20-80 pneumatic cylinder – opposite side view showing SMC label, rust on cylinder body, push-in fittings and auto-switch
Add to Cart
Quick view

SMC CDM2C20-80 Pneumatic Cylinder 20mm Bore 80mm Stroke Double Acting

SMC

$35.00
Was: $70.00
SMC CDM2C20-80 Pneumatic Cylinder 20mm Bore 80mm Stroke Double ActingThe SMC CDM2C20-80 is a compact double acting, single rod pneumatic cylinder from SMC Corporation's CDM2 series. It uses...
47967
SKU:
47967
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
SMC
Model:
CDM2C20-80
MPN:
CDM2C20-80-H7BL-XB9
Type:
Double Acting Pneumatic Cylinder
SKU:
47967
Bore Size:
20mm
Stroke Length:
80mm
Action Type:
Double Acting
Rod Configuration:
Single Rod
Max Operating Pressure:
1.0 MPa (145 PSI / 10.2 kgf/cm²)
Series:
CDM2 Series
Country/Region of Manufacture:
Japan
Condition:
Used – Inspected, surface rust/corrosion present
Seller Notes:
Unit includes push-in fittings and auto-switch sensor wiring as shown.
Application:
Industrial Automation, Pneumatic Actuation
Body Material:
Stainless Steel Tube
End Configuration:
Clevis / Rod Eye both ends
Condition Notes:
SMC CDM2C20-80 pneumatic cylinder, inspected and in good used condition. Surface rust/corrosion present on cylinder body (visible in photos). Fittings, rod eye, and auto-switch wiring appear intact.
SMC CDM2B25-125 double-acting pneumatic cylinder – full unit angled view showing rod end, auto switch, and push-in fittings SMC CDM2B25-125-H7NWL label close-up showing full model number and 1.0MPa max pressure rating
Add to Cart
Quick view

SMC CDM2B25-125 Pneumatic Cylinder Double-Acting 25mm Bore 125mm Stroke 1.0MPa

SMC

$60.00
Was: $125.00
SMC CDM2B25-125 Pneumatic Cylinder Double-Acting 25mm Bore 125mm Stroke 1.0MPa Double-acting pneumatic cylinder from SMC's CDM2B series. Delivers controlled linear motion in both directions under...
53200
SKU:
53200
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
SMC
Model:
CDM2B25-125
MPN:
CDM2B25-125-H7NWL
Type:
Double-Acting Pneumatic Cylinder
SKU:
53200
Bore Size:
25mm
Stroke Length:
125mm
Max Operating Pressure:
1.0 MPa
Action Type:
Double-Acting
Series:
CDM2B
Auto Switch:
Yes – wired auto switch installed
Country/Region of Manufacture:
China
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes installed auto switch with wiring leads
Compatible With:
SMC CDM2B Series pneumatic automation systems
Condition Notes:
SMC CDM2B25-125 double-acting pneumatic cylinder, 25mm bore, 125mm stroke, pulled from active industrial service. This unit has been tested and confirmed functional.

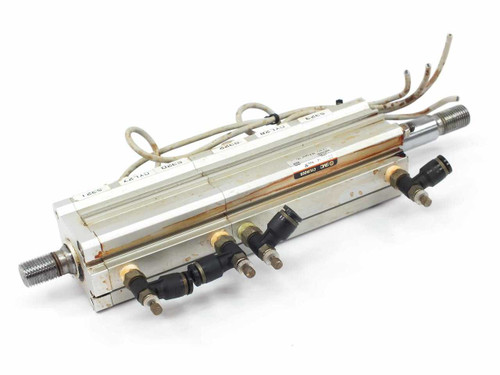

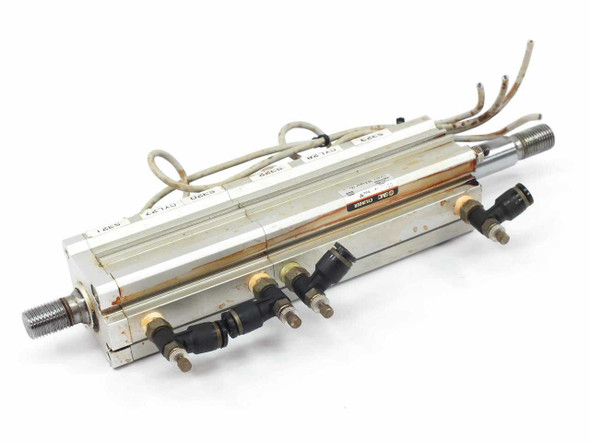

SMC CDQ2B32-60DM and CDQ2KB32-35DM compact pneumatic cylinder pair – top angled view showing both cylinders mounted together with wiring leads SMC compact pneumatic cylinder pair – side view showing push-in fittings and pneumatic tubing ports along the bottom
