Description
SMC CDM2B32-55 CM2 Series Double Acting Pneumatic Cylinder 32mm Bore 1.0 MPa
Double acting single rod pneumatic cylinder manufactured by SMC. Operates at 1.0 MPa maximum pressure with 32mm bore diameter and dual stroke lengths of 55mm and 35mm.
Specifications & What's Included
- Model: CDM2B32-55 (MPN: CDM2B32-55+35-H-7BL4-XB9C10)
- Bore diameter: 32mm | Rod diameter: 12mm
- Stroke: 55mm + 35mm | Max pressure: 1.0 MPa (145 PSI)
- Double acting, single rod configuration
- Rod end / clevis-style mounting on both sides
- Includes attached pneumatic fittings, wiring leads, and rod end hardware
- Made in Japan
Applications
Double acting cylinders of this type are used in industrial automation, machinery clamping systems, material handling equipment, and telecom infrastructure applications. The CM2 series operates in low-pressure pneumatic systems typical of light-duty industrial equipment. Commonly integrated into assembly machines, press fixtures, and positioning apparatus where controlled linear motion is required.
Condition: Used

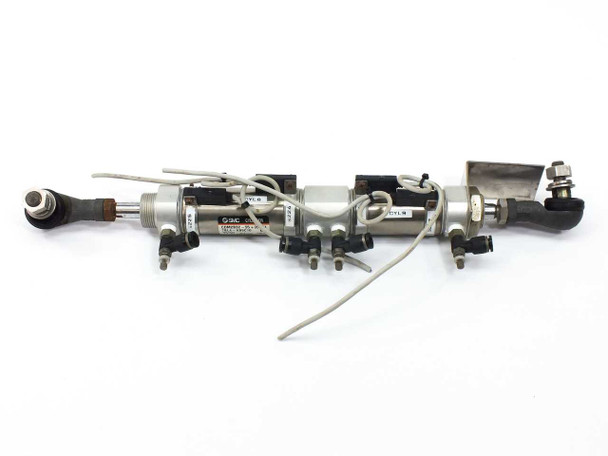

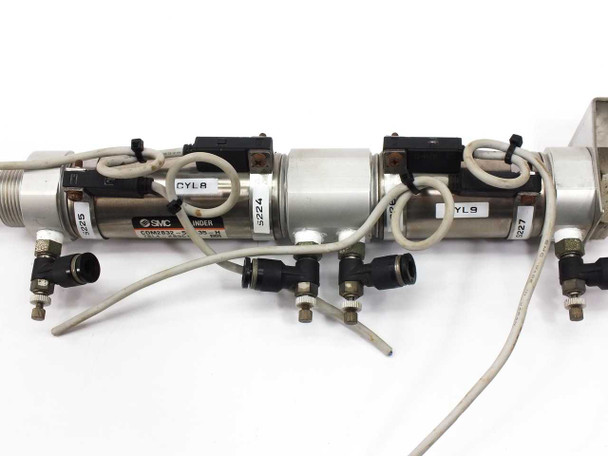

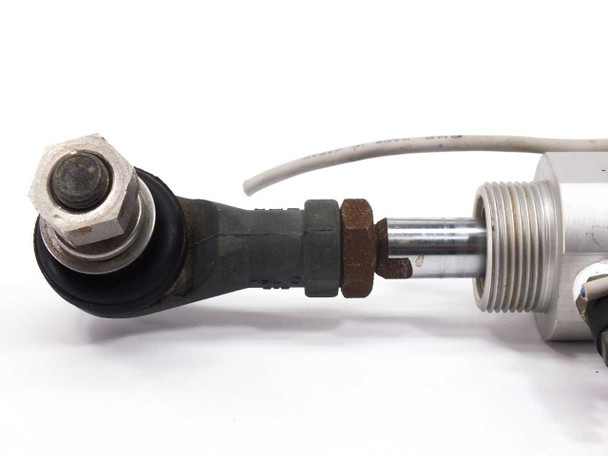

This SMC CDM2B32-55 CM2 Series double acting pneumatic cylinder has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The cylinder body and rod ends show light surface wear consistent with industrial use — the label is fully legible, the rod ends and clevis hardware are intact, and the push-in pneumatic fittings and auto-switch wiring leads are included as shown. Some light oxidation is visible on the hardware and fittings. Please view our photo set and contact us if you have any questions.
This SMC CDM2B32-55 CM2 Series double acting pneumatic cylinder has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The cylinder body and rod ends show light surface wear consistent with industrial use — the label is fully legible, the rod ends and clevis hardware are intact, and the push-in pneumatic fittings and auto-switch wiring leads are included as shown. Some light oxidation is visible on the hardware and fittings. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
SMC |
Model: |
CDM2B32-55 |
MPN: |
CDM2B32-55+35-H-7BL4-XB9C10 |
Secondary Model: |
7BL4-XB9C10 |
Type: |
Double Acting Single Rod Pneumatic Cylinder |
Series: |
CM2 |
Bore Diameter: |
32mm |
Stroke Length: |
55mm + 35mm |
Rod Diameter: |
12mm |
Max Pressure: |
1.0 MPa (145 PSI / 10.2 kgf/cm²) |
Action Type: |
Double Acting |
Rod Configuration: |
Single Rod |
Country/Region of Manufacture: |
Japan |
Mounting Style: |
Rod end / clevis-style rod ends (both sides) |
Condition: |
Used – Pulled from Working Environment |
SKU: |
48735 |
Seller Notes: |
Includes attached pneumatic fittings, wiring leads, and rod end hardware as shown. |
Condition Notes: |
SMC CDM2B32-55 CM2 Series pneumatic cylinder inspected and in good used condition. Pulled from a working environment where it was in active use and functional. Light surface wear on hardware; fittings and wiring leads included as shown. |
