Tekelec Instruments TE820B PCM Frame Simulator Analyser 110V 220V For Parts

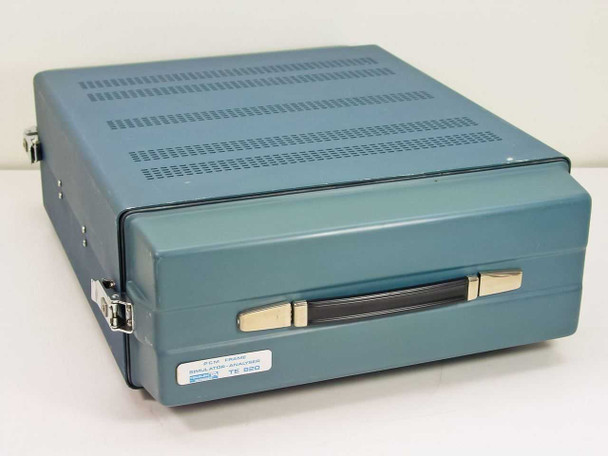

Benchtop PCM frame simulator and analyser manufactured in France by Tekelec Instruments. Unit features dual channels (A and B) for PCM frame simulation and analysis with switchable 110V/220V operation.
Specifications & What's Included
- Model: TE820B / TE 820B
- Type: PCM Frame Simulator-Analyser
- Channels: 2 (Channel A and B)
- Power: 110V (2AFB fuse) or 220V (1AFB fuse), user-selectable
- Interfaces: BNC, D-Sub multi-pin, proprietary card connectors
- Rear modules: Emission Multiframe, Emission Ligne, Emission Trame, Processeur 1, Processeur 2, Reception Multiframe, Reception Ligne, Reception Trame

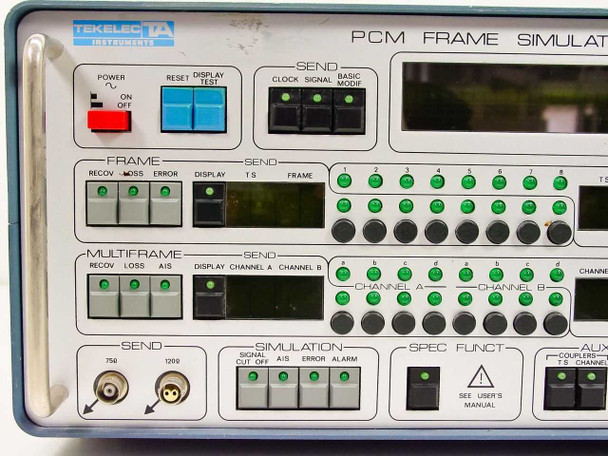

- Front panel sections: Send, Frame, Multiframe, Simulation, Spec Funct, Receive, Analysis
Applications
PCM frame simulators and analysers are used in telecommunications for testing and troubleshooting digital PCM transmission systems. These instruments simulate PCM frame structures and analyze received frames for protocol compliance and signal integrity. Historically used in carrier and telecom infrastructure testing, particularly in European telecommunications networks using E1/E0 PCM standards.
Condition: For Parts or Not Working
This Tekelec Instruments TE820B PCM Frame Simulator-Analyser does not power on and is being sold AS-IS for parts or repair. The unit has not been tested and no functionality is guaranteed. The enclosure is intact and the front-panel controls, LED indicators, and rear card modules all appear physically complete based on the photos. The rear label confirms the part number as TE 820B and shows the dual-voltage fuse configuration (110V / 220V). Normal wear consistent with lab or field use is visible on the enclosure. Please view our photo set and contact us if you have any questions.
This Tekelec Instruments TE820B PCM Frame Simulator-Analyser does not power on and is being sold AS-IS for parts or repair. The unit has not been tested and no functionality is guaranteed. The enclosure is intact and the front-panel controls, LED indicators, and rear card modules all appear physically complete based on the photos. The rear label confirms the part number as TE 820B and shows the dual-voltage fuse configuration (110V / 220V). Normal wear consistent with lab or field use is visible on the enclosure. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Tekelec Instruments |
Model: |
TE820B |
MPN: |
TE 820B |
Type: |
PCM Frame Simulator-Analyser |
SKU: |
39737 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Unit does not power on. Sold AS-IS for parts or repair only. |
Power Requirements: |
110V (2AFB fuse) / 220V (1AFB fuse), switchable |
Form Factor: |
Benchtop / Portable |
Interface Type: |
BNC, D-Sub (multi-pin), proprietary card connectors |
Measurement Type: |
PCM Frame Simulation and Analysis |
Channels: |
2 (Channel A and Channel B) |
Front Panel Sections: |
Send, Frame, Multiframe, Simulation, Spec Funct, Receive, Analysis |
Rear Card Modules: |
Emission Multiframe, Emission Ligne, Emission Trame, Processeur 1, Processeur 2, Reception Multiframe, Reception Ligne, Reception Trame |
Voltage Options: |
110V / 220V (user-selectable via rear switch) |
Fuse Rating 110V: |
2 AFB |
Fuse Rating 220V: |
1 AFB |
Country/Region of Manufacture: |
France |
Condition Notes: |
Tekelec TE820B PCM Frame Simulator-Analyser does not power on. Sold AS-IS for parts or repair only. Not tested, no functionality guaranteed. Enclosure and cards appear physically intact. Please contact us with any questions. |
